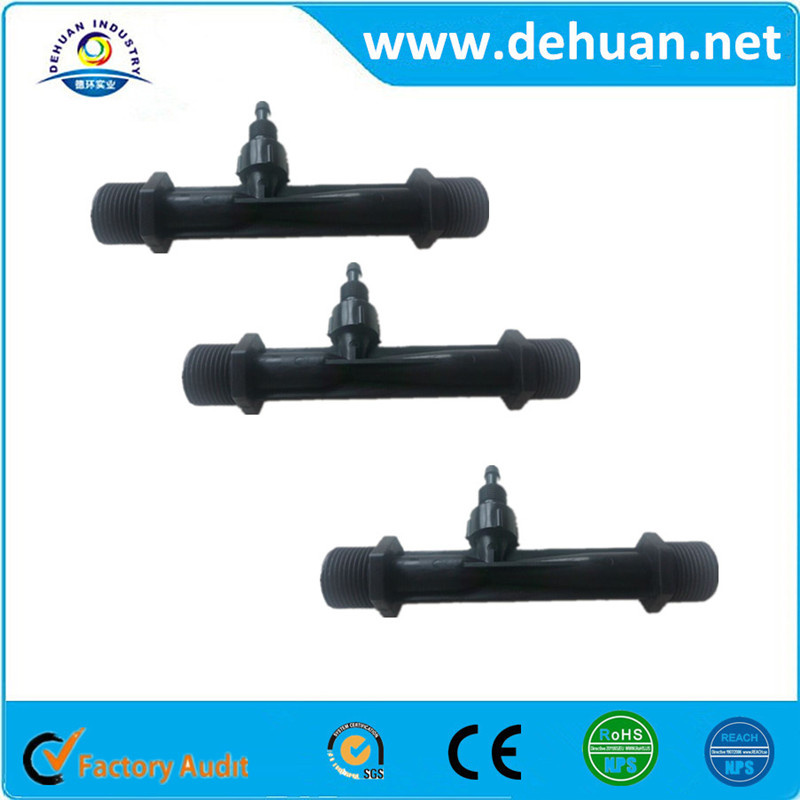

Description of longevity ozone generator spare parts/ozone venturi injector/Venturi 001 Long life Ozone Venturi injector :
longevity ozone generator spare parts/ozone venturi injector/Venturi 001 Long life Ozone Venturi injector works by suction and will draw liquid fertilizer out of almost any container you provide. It can be plumbed on a bypass for less restriction (the preffered methode), or directly into a main water line. All sizes have male pipe threads on the inlet and ourlet, which are easy adapted to hose threads
Detailed information of longevity ozone generator spare parts/ozone venturi injector/Venturi 001 Long life Ozone Venturi injector you can visit to our widesite: www.dehuan.net.
Venturi |
|
Marks |
Model |
Quantity
(PC) |
Size
(mm) |
|
|
1 |
A12057 |
1 |
57 |
|
2 |
A25100 |
1 |
100 |
|
3 |
A32235 |
1 |
235 |
|
4 |
A25152 |
1 |
152 |
|
5 |
A48275 |
1 |
275 |
|
6 |
A58295 |
1 |
295 |
|
Venturi is designed to be used with an ozone/oxyen generator for water treatment. It is made of anti-ozone material, PVDF. Connected to your existing filtration system it allows an ozone injection point, where the vacuum effectively sucking the ozone gases into the water flow |
|
Specifications |
|
Model: A12057
Material:PVD
Water flow rate:0.05-0.25 T/Hr
Specification:
Inlet & Outlet diameter 1/5'external screw thread
Valve bonnet of Gas Inlet is 1/8';
flexible hose
Length: 57 mm |
Model: A25100
Material:PVDF
Water flow rate: 0.1-1 T/Hr
Specification:
Inlet & Outlet diameter1/2' external screw thread
Valve bonnet of Gas Inlet is 1/4';
flexible hose is 1/4
Length: 100 mm |
Model : A32235
Material: PVDF
Water flow rate:3-10 T/Hr
Specification:
Inlet & Outlet diameter 1'external screw thread.
Valve bonnet of Gas Inlet is 1/2';
flexible hose is 1/8
Length: 230 mm |
|
|
|
|
|
Model: A25152
Material: PVDF
Water flow rate: 1~3 T/Hr
Specification:
Inlet & Outlet diameter3/4'external screw thread
Valve bonnet of Gas Inlet is 1/4';
flexible hose is 1/4'
Length: 152 mm |
Model: A48275
Material: PVDF
Water flow rate:10~25 T/Hr
Specification:
Inlet & Outlet diameter1.5' screw thread
Valve bonnet of Gas Inlet is 1/2';
flexible hose is 1/2'
Length: 275mm |
Model: A58295
Material: PVDF
Water flow rate: 25~50T/Hr
Specification:
Inlet & Outlet diameter 2'screw thread
Valve bonnet of Gas Inlet is 1.25';
flexible hose is 1/2
Length: 295mm |
|
|
Our workshop:
Our office:
Our system and accessories have been sold in 52 countries and have got high praise from the farmers in these countries.
Shipping & Payment:
Port |
Shanghai, Mainland China |
MOQ |
2000 Pieces |
Supply ability |
100,000 Pieces/Month |
Payment terms |
L/C, T/T, D/P, Western Union, Paypal |
Packing |
Standard export packing |
Delivery |
15-25days, depend on your Order |
Welcome to contact us for more details about longevity ozone generator spare parts/ozone venturi injector/Venturi 001 Long life Ozone Venturi injector
