Ln10 Small Portable Laboratory Liquid Nitrogen Generator

Ln10 Small Portable Laboratory Liquid Nitrogen Generator
Price: US $ 40000/Set
Trade Terms: FOB,CFR,EXW
Min Order: 1/Set
Pay Type: L/C,T/T

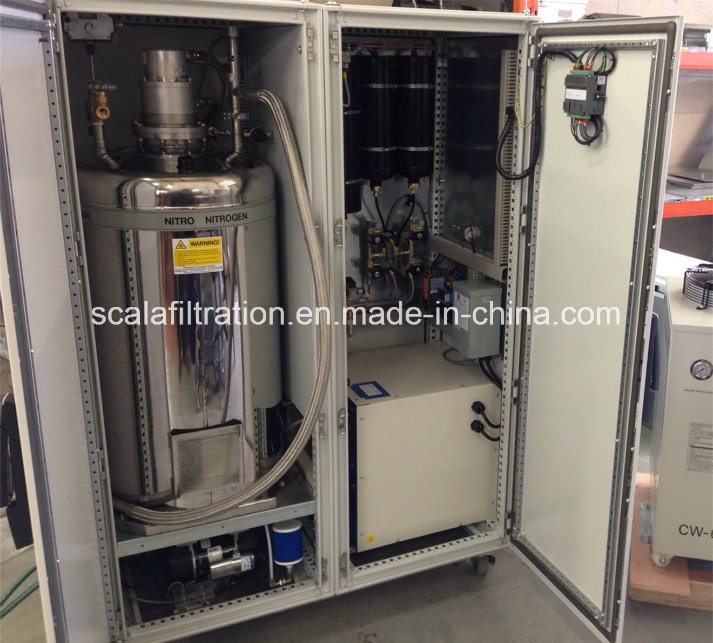

Ln10 Small Portable Laboratory Liquid Nitrogen Generator

ON-SITE LIQUID NITROGEN GENERATORS
SCALA liquid nitrogen generators are a simple plug and produce liquid nitrogen solution. An internal PSA nitrogen generator combined with a cryo-cooler, helium compressor and internal dewar all controlled through a colour graphic HMI touch-screen gives a fully auotmated system at the touch of a button.

THE NITROGEN LIQUIFIER
The liquid nitrogen system is based on the Gifford-McMahon technique of a cold-head design with the compression and expansion of helium to obtain low temperature cooling. The systems are specifically designed for applications where a certain gas must be liquefied and transferred to an internal storage vessel which can then be dispensed to the application.

Product features
Internal oil-free air compressor with autoclave (anti-bacteria) suction filter.
PSA nitrogen gas generator to give -60°c pdp nitrogen gas.
Sterile filter on nitrogen gas line to cryo-cooler.
Reliable low maintenance helium compressor unit.
Cryo-head is part of the dewar assemby for efficiency of production.Liquid nitrogen outlet valve and transfer hose provided.

Advantages
Produce your own Liquid Nitrogen and eliminate deliveries.
Less waste - cold head keeps the dewar cold and reduces boil off compared to standard dewar.
Efficiency - Once internal dewar filled the system goes into standby, saving power.
Cost - Liquid nitrogen produced around 1/3rd the cost of delivered LN2.
Cleanliness - Closed loop system of nitrogen PSA, cryo-cooler and sterile filter ensures internal dewar is only filled with clean dry nitrogen gas and produces clean / pure liquid nitrogen.

Applications
-IVF clinics / hospitals for storage of samples.NMR spectrometer to keep liquid helium cool and prevent boil off.

Installation
The Liquid Nitrogen generator is a complete automated system supplied as a packaged piece of equipment either inside a floor mounted enclosure or a small skid mount design.

Firstly the cooling water should be connected to the ports shown on the side of the system - this should either be a mains water supply or a closed loop chiller specified and supplied by SCALA.
The system can be situated in its preferred location and connected to the mains supply using the cable supplied.As the system has already been fully commissioned and tested at our factory the START button on the screen can be pushed in order for the system to go into an initial start-up sequence:
1. PSA nitrogen generator achieves <1.0% oxygen content (approximately 30 mins).
2. The helium compressor / cold-head reduces the internal vessel temperature in order to start producing liquid nitrogen (approximately 4 hours).

Liquid nitrogen will be produced at the flow per day indicated on the data sheet for the specific product until the internal storage vessel is full. When full the generator will go into standby and will automatically re-start once the storage volume has dropped to pre-determined level.


Technical Specification
MODELL/DAYL/HRSTORAGE
CAPACITY
N2 GAS
(L/MIN)
ELECTRICAL
SUPPLY
POWER
(KW)
COOLING
WATER
(L/MIN )
LN10100.4235 L5.5230V2.22.8
LN20200.83100 L11.0230V4.04.5
LN40401.7160 L13.0415V 3PH5.56.0
LN60602.5210 L33.0415V 3PH7.57.6
LN1201205.0300 L65.0414V 3PH15.511.4
LN24024010.0500 L130.0415V 3PH31.020.0


Prod Model: LN10
Markets: South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Liquid Nitrogen Capacity: 10liters Per Day
Liquid Nitrogen Purity: 99.5%
Dewar Tank Capacity: 35liters
Power: 2.2kw
Cooling Water Consumption: 2.8liters/Min, @27 Deg C
Voltages: 230V-1phase-50/60Hz
Dimensions: 1.2m(L) X 0.6m(W) X 1.6m(H)
Weight: 300kg
Usage: Nitrogen
Condition: New
Hangzhou Scala Filtration Technology Co., Ltd. is established in 2013, dedicated in researching manufacturing and selling liquid nitrogen generator and compressed air & gas filtration equipment. Office is located in Hangzhou, registered business licence in China Mainland is 330106000282245.

Our plug-and-play type liquid nitrogen generator plant is based on Gifford-McMahon technique and PSA technology. These extramely compact and low noise system are specially designed for IVF (sample storage), sement storage, hospitals, laboratories, universities, metal treatment, super-conductivity and film production etc. Liquid nitrogen generator flow is LN06, LN10, LN20, LN40, LN60, LN120, LN240.6lliters, 10liters, 20liters, 40liters, 60liters, 120liter and 240liters per day etc.

Compressed air & gas filtration equipment includes:

Compressed air filter, compressed air microfilter, coalescing air filter, particulate air filter, inline filter, pre-filter, after filter, activated carbon air filter, CNG filter, high pressure compressed air filter, water separator, cyclone condensate separator, medical vacuum filter, compressed air dryer, adsorption air dryer, heatless air dryer etc.

Alternative filter elements for:

Parker Domnick Hunter, Donaldson, Ultrafilter, Parker Zander, OMI, SMC, AFE Air Filtering Engineering, SPX Hankison, SPX Deltech, Delair, SPX Jemaco, Parker Hiross, MTA, Friulair, Mikropor, Walker, Orion, Beko, Kaeser, Atlas Copco, Sullair, Boge, Ingersoll Rand, Compair, Hydrovane, Mattei, Fini, CTA, Champion, Parker Balston, Gardner Denver, Kobeco, Hitachi, Finite, ABAC, Aircel, Almig, Quincy, Chicago Pneumatic, Ceccato, Pneumatech and Liutech etc.

All of Scala products are strictly designed and manufactured according to European, American and International Standards. Scala believes excellent product means reliability, efficiency, enegy-saving and eco-friendly. All of these can bring more profit for customers.

As a fast growing company, Scala focuses on long-term value and self sustainable development. As a fast growing company, Scala has established long-term business relations with customers from Russia, Middle East, South East Asia, Africa and South America etc.
