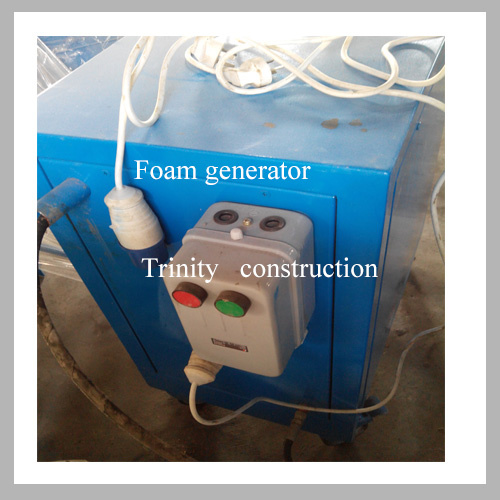

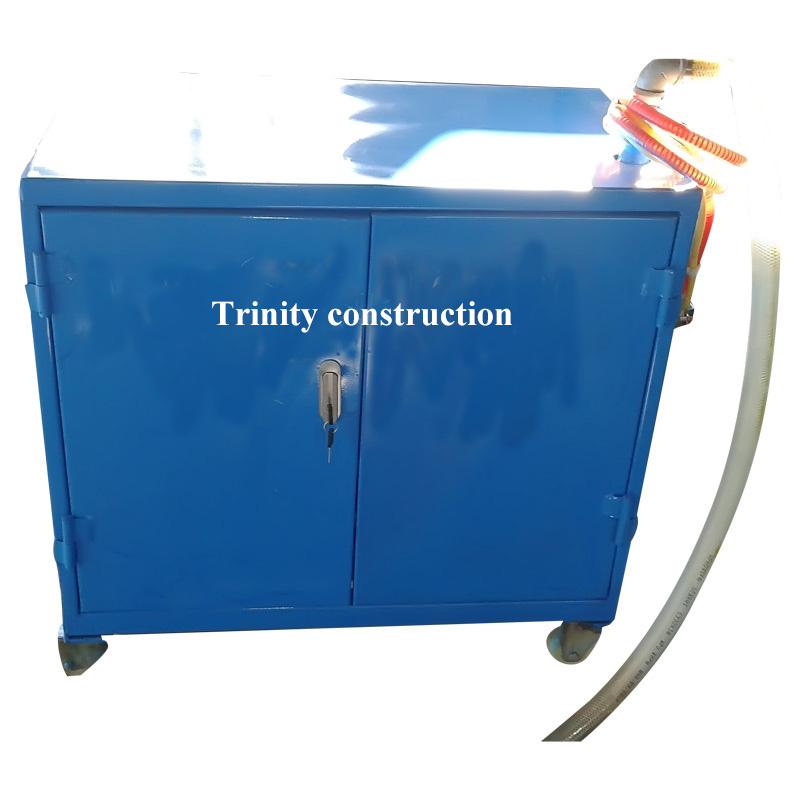

Foam generatorFG-30 foam generator is a machine that makes foam out of foaming agent.
StructureSmall, and movable with wheels; two buttons finish entire operation.
Features1. 0.5 m3 output per minute and 30 m3 per hour output,
2. Small, only need less than 1.5m2 space
3. Total weight about 300 kg, easy to move up and downstairs
4. Even texture and orderly distributed bubble pore, low water content, low dosage input, and low cost.
5. The Generator works great with good viscosity foaming agent.
6. Chinese branded motor, stable quality and performance.
7. The machine is equipped with time relay to adjust foaming time.
Application1. block
2. wall panel
3. Garden stone
4. Exterior Insulation Panel
5. Small scale on-site construction
FG-30 Technical ParameterOutput: 0.5m3/min
Power: 3.5kw
Weight: 300kg
Dimension: 1400*1000*1450 mm
Voltage: 380v, 50-60Hz
Spare Parts
1. Use & Care Manual
2. Air compressor gasket and piston ring: one set
3. one meter long wire tube
Remarks: The Generator reaches its maximum potential with our TM series double shaft mixer.
Trinity Construction, a foam concrete machinery manufacturer and solution provider, is mainly engaged in foam concrete Total Solution machine, foam generator, foam concrete mixer and foaming agent research and fabrication. Its products had been exported to over 20 countries and areas, such as Australia, Canada, Vietnam, Honduras and the Middle East.
Adhering to the principle of "Pragmatic and exquisite, " it actively improves the product quality and service. The employees are dedicated and dependable, always ready to serve each customer with a warm pre-sale, sale and after-saless attitude, eager to supply you with a product that fits your needs.
Trinity Construction is a member of China Foamed Concrete Association and China Internaitonal Chamber of Commerce. Trinitt foam concrete machine had got six patents, and first company to get CE identification.
Now we use new technology and skills for machines, quality is better, types is more modernization.
