Home Generator Products Lhng100 Natural Gas Generator with Silent Generator for Sale

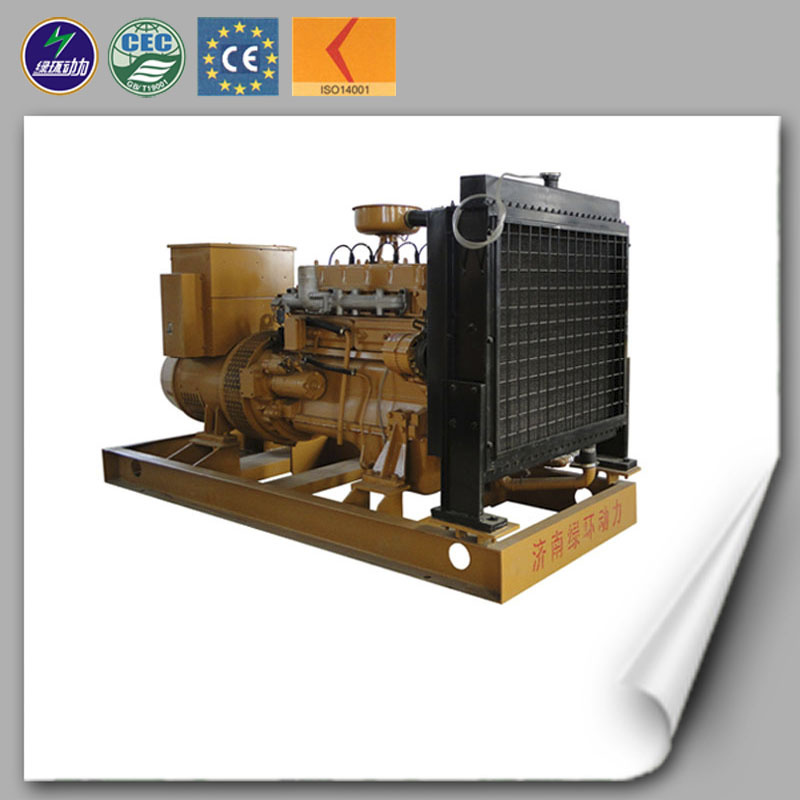

Lhng100 Natural Gas Generator with Silent Generator for Sale

Lhng100 Natural Gas Generator with Silent Generator for Sale
Price: US $ 23000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P

1.Product introduction

Natural Gas---its main component is CH4,which takes 90% of the whole content.Thermal efficiency of conversion is 65%, which is same to the LPG and higher than Coal; Calculated on the same calorific value, the price of natural gas is lower than the price of coal and petroleum. Natural gas is used by civil use, generation, industrial chemicals and industrial fuel etc. it's a good substitute of coal and petroleum. It can take instead of civil coal gas; it can be used as nitrogenous fertilizer instead of coal and petroleum; it can be used as ethylene instead of naphtha; it can be used as the car engine fuel instead of petroleum.
Natural Gas Generator, fueled mainly by natural gas and LPG, is widely used in regions or areas with abundant oil field and natural gas. Global electrical power demand will be 80% higher by 2040, with gas becoming a key energy source for EP generation. The unit starts quickly, be operated easily, with complete set of safety system, and can be as power device and electricity device for oil field and local companies.


2.Core spare parts

Ignition system: American ALTRONIC.
Controller: Comap, Deepsea, Smartgen
Automatic control system: Automatic control plate and ATS fully automatic switch between generator and national grid.
Woodward technology: Adopted Woodward lean burning technology, Woodward or ComAp speed adjusting system
Starting system: DC24V electric motor.
Mixer: IMPCO
Sparking plug: STITT

3.Genset worksite requirements

a. Ambient temperature between -40ºC~40ºC;
b. Relative humidity less than 95%(35ºC);
c. Site elevation not higher than 2500m;
d. For outdoor installation, simple rain shelter is required.

4.Gas requirements

1m from genset's pressure regulating valve
a. Temperature of biomass≤40ºC;
b. Pressure of biomass: 5~20kPa, velocity of pressure≤ 1kPa/min;
c. H2S≤200mg/Nm3;
d. NH3≤20mg/Nm3;
e. Coke tar content≤20mg/Nm3;
f. Impurities particle size≤5μm; impurity content≤30mg/Nm3;
g. Moisture Content of biomass ≤40g/Nm3;
h. Biomass calorific value≥4.2MJ/Nm3.
Purification of biomass gas has a significant impact on machine life and continuous running time!



5.Company Introduction

Since 2008
Factory area over 40000m2
Starff over 260 employees
Technicians over 100 people
website www.lvhuandongli.com

6.Scope of Application

Gas electricity generation, using pure and high-LHV natural gas to provide stable, continous and large amounts of electricity.

 7.Advantage

Advanced configuration keep accurate ans stable working condition under high speed working speed
High generalization, easy maintenance, low maintenance cost.
Economical, low operating cost
Reduced the carbon deposition on the wear of the engine cylinder and the valve to prolong the using life of the genset.
Adopt one of the world's most advanced gas control technology, fully available to the characteristics of fuel gas.
Powerful low pressure gas SPI (single point Injection) system used for various supercharger premixed engine.
Suitable for differnt concentration methane and propane, variety of quality gas.
Precise air-fuel ratio rarefied combustion control and Generator speed/load control
Realize lean burn, reduce the intake pipe tempering and improved efficient to reduce the heat load.

8. Requirements For Natural Gas Genset Working Condition

Within 1m from pressure regulating valve of gas intake
The ratio of CH4 in natural gas ≥70%
Pressure of natural gas: 80-200kpa, rate of pressure change ≤ 1kpa/min
H2S ≤ 20mg/Nm3
Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3
Moisture content ≤ 40g/Nm3

9.High Configuration

Ignition system: ALTRONIC(USA)
Starting system: DC24V electric motor.
Mixer: IMPCO(USA)
Sparking plug:STITT
Engine Control System: Woodward(USA), HEINZMANN(Germany)
Electric Control System: ComAp(Czech), Deepsea(UK)
Alternator: Siemens, LEROY-SOMER, Marathon

Parameter of Natural Gas Generator Set
Model Number (Engine Type)LHNG100
Brand NameLVHUAN
Prime Power/Standby Power80KW/100KW
Rated Speed1000/1200RPM
Rated Frequency50/60Hz
Rated Voltage400V/230V
PhaseAC 3-Phase, 4 wire
Voltage Stability≤±2%
Voltage transient≤±10%
Voltage Stable time≤1s
Heat consumption≤11mj/kw.h
Lubricant Consumption≤1.0g/kw.h
Engine Capacity712.9L
Cylinder Number6
Cylinder Bore135mm
Stroke150mm
Starting SystemDC 24V electric motor
Cooling methodwater cooler
Lubricant methodPassive and flying lubricant
Isolation classH
ProtectionIP23
AlternatorSiemens
Power Factor0.8 lagging
Exciting methodbrushless
Colouryour choice
CertificatesISO 9001:2008, CE
Warranty1 year or 1000 running hours which arrives first
TypeOpen
Control systemAutomatic alarm system
Size2850x1100x1750mm
Weight12500kg

10.Certificate
We have CE, ISO14001, ISO9001 and CEC certificate to keep the good quality. Please contact us for more details.

11.Service
      (1) 24 hours- technology support service and the promptly reply

      (2) Professional engineer team and strong technology support

      (3) Customized design based on real situation

      (4) Detailed and professional layout drawing, installation drawing and other drawing required by the customers supplied

      (5)  Engineer service on site

      (6)  Free training in Factory

      (7)  Equipment test before delivery

      (8)  One year guarantee period and lifetime service

      (9)  Spare parts lifetime supplied

12.Accessories

1) Application scope of the Accessories, such as 12v190, 8v190, 6190, 6135 and other engine types.
2.)All parts were from original factories or professional factories, complete in specification, keep good quality.

Sincerely welcome to visit our factory and build future cooperation relationship.

13.FAQ

    1) What are the continous power and the standby power?

        It depends on the hours the generator set works per day.
        And 0.8*standby power = continuous power.

    2) How long is the warranty?

        One year

    3) Do you provide installation? commissioning? and training?

         Yes

    4) Your engineer can go abroad?

        Yes

    5) Can you supply the spare parts?

        Yes

    6) Can you provide the turnkey project?

        Yes
Prod Model: LHNG100
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number (Engine Type): Lhng00
Brand Name: Lvhuan
Prime Power/Standby Power: 80kw/100kw
Rated Speed: 1000/1200rpm
Rated Frequency: 50/60Hz
Rated Voltage: 400V/230V
Phase: AC 3-Phase, 4 Wire
Voltage Stability: ≤±2%
Voltage Transient: ≤±10%
Voltage Stable Time: ≤1s
Gas Source: Natural Gas
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.

Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.

We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.

Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
