| Model Number (Engine Type) | LHNG30 |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 32KW/50KW |
| Rated Speed | 1000/1200RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤11mj/kw.h |
| Lubricant Consumption | ≤1.0g/kw.h |
| Engine Capacity | 4.33L |
| Cylinder Number | 4 |
| Cylinder Bore | 105mm |
| Stroke | 120mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Siemens |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours which arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 2100x900x1200mm |
| Weight | 950kg |

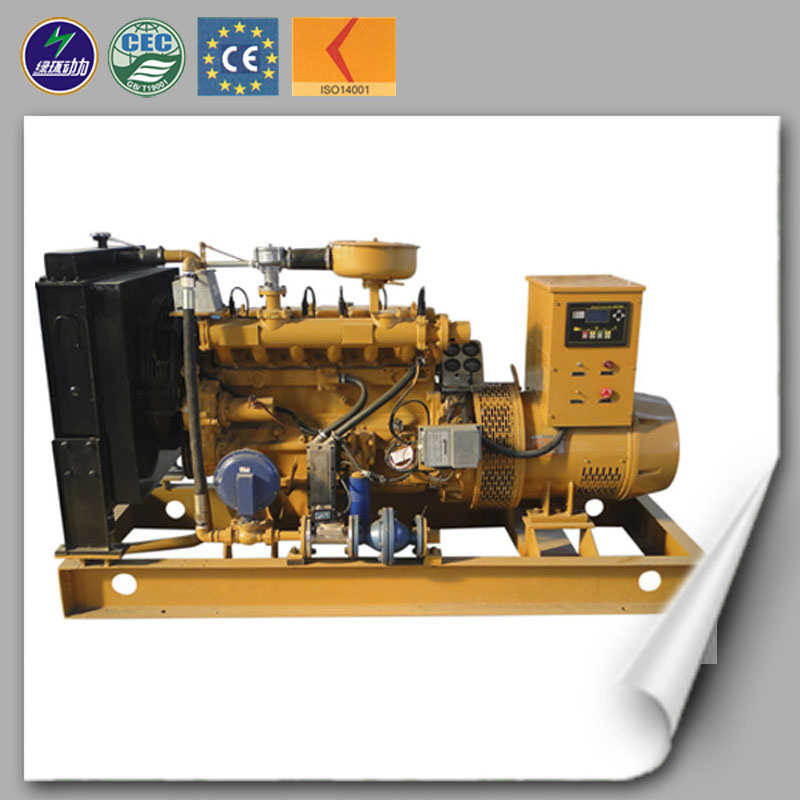

1.Introduction of Biogas Generator set
Biogas burning power generation is the large-scale construction and development of comprehensive utilization of biogas pool and a biogas utilization technology, it will have a biogas anaerobic fermentation processing, used on the engine, and is equipped with integrated power generation device, to generate electricity and heat. Biogas power generation has the characteristics of gen efficiency, energy saving, safety and environmental protection, is a widely distributed and distributed energy at low price.
2.Gas requirements of biogas genset
Within 1m from pressure regulating valve of gas intake
Gas temperature: ≤40°C
Pressure: 3-20kpa, pressure changing rate: ≤1kpa/min
H2S: ≤200mg/Nm³
NH3: ≤20mg/Nm³
CH4 content: ≥40%, changing rate: ≤2%min
Impurity particle size: ≤5μm, impurity content:
≤30mg/Nm³
Moisture content: ≤40g/Nm³
3.Why you chioce Shandong Lvhuan Power equipment Co.,Ltd.Diesl generator?
1).We are professional manufacturer for gas/diesel generator set, over 15 years produced experience;
2).Products range of gas engines/genset, including diesel engines, biomass generator sets, natural gas generator sets, biogas generator sets, coal mine gas generator set, etc.Products arrange from 5kw-3000kw ;
3).Our workshop covering more than 40000 square meters, techincal engineer and after-service more than 100 people.Also products achieved CE,ISO9001:2008,ISO2001:1400 etc.Certificats.And passed many patents.
4).Our products are well received by our customers in Spain, Italy, Canada, Venezuela, Austraila, Thailand, Malaysia,Philippine,Indonesia,and with some Africa countries etc.
5).We have many cooperation companies :Like dehydration equipment,desulfurization equipment,gasified equipment,recovery system exhaust heat,CCHP system etc.So can offer you complete project proposal if you like.
4.Certificate
We have CE, ISO14001, ISO9001 and CEC certificate to keep the good quality. Please contact us for more details.
5.Service
(1) 24 hours- technology support service and the promptly reply
(2) Professional engineer team and strong technology support
(3) Customized design based on real situation
(4) Detailed and professional layout drawing, installation drawing and other drawing required by the customers supplied
(5) Engineer service on site
(6) Free training in Factory
(7) Equipment test before delivery
(8) One year guarantee period and lifetime service
(9) Spare parts lifetime supplied
6.Accessories
1. Application scope of the Accessories, such as 12v190, 8v190, 6190, 6135 and other engine types.
2. All parts were from original factories or professional factories, complete in specification, keep good quality.
7.Our advantage:
a.Strong technology research and development team
b.Strong sales team
c.Factory area of vast
d.Ever export many country in the world, we have many case of succesfully
e. The best quality service
8.Contact us
| Company | Shandong Lvhuan Power Equipment Co.,Ltd |
| Contact | Wendy Fu |
| Phone | 86-13969022385 |
| QQ | 2523776978 |
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
