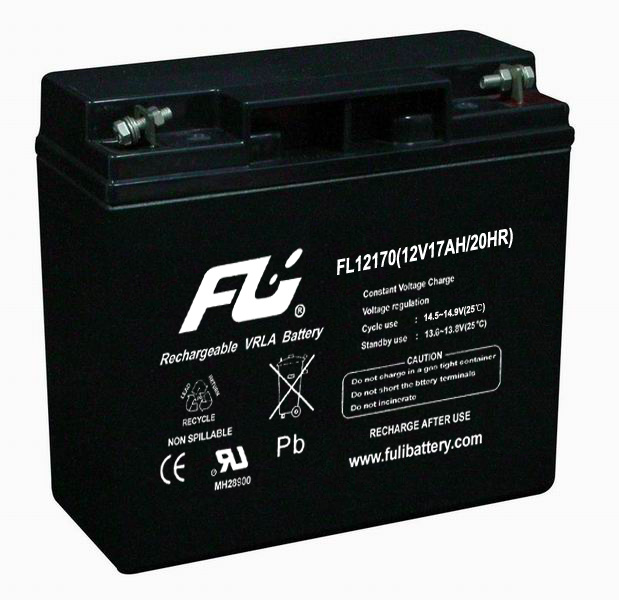

Lead acid battery 12v17ah
DC Series battery General Features
Good performance for durablity and deep cycle use
Long service life
Excellent consistency
Low internal resistance
Non-spillable during transporation
| Battery model(lead acid battery) | FL12170DC |
| Designed Cycle Life | > 350 Cycles @ -0.5CA to 9.6V |
| Capacity (25 ºC ) | 20hR(0.85A, 10.5V) | 10hR(1.64A, 10.5V) | 5hR(2.86A, 10.5V) | 1hR(11.4A, 9.60V) |
| 17Ah | 16.4Ah | 14.3Ah | 11.4Ah |
| Dimensions | Length | Width | Height | Total Height |
| 181.5±1mm | 77±1mm | 167±1mm | 167±1mm |
| Approx. weight (±5%) | 5.5Kg (12.1 lbs) |
| Internal resistance | Full charged at 25 ºC : Approx. 15mOhms |
| Self discharge | 3% of capacity declined per month at 25 ºC (average) |
| Capacity Affected by Temp.(20HR) | 40 ºC | 25 ºC | 0 ºC | -15 ºC |
| 102% | 100% | 85% | 65% |
| Charge Voltage (25 ºC ) | Cycle use | Float use |
| 14.4-14.7V(-30mV/ ºC ), max. Current: 5.1A | 13.6-13.8V(-20mV/ ºC ) |
Fuhe Electric company engaged in the design, manufacturing, sales and marketing of a wide range of valve regulated lead acid batteries and development of customized battery solutions. Since established in 2002, FuHe have been developed step by step to the current middle-big size one. Not only production capacity but also technology, quanlity and management system have been improved greatly. Especially in 2009, roughly one million USD was invested in our own LEAD Plate Factory for advanced machines to improve our production efficiency and battery quality. These hardwares include Fully Automatic Ball Mill Machines, Mixing&Pasting Machines, Curing Ovens and Environment Facilities. We are small enough to be flexible and meet different customer need yet big enough to meet the demand and produce millions of high quanlit products each year.
If you are interested in our products, please do not hesitate to contact me. I will do the best to support you.
