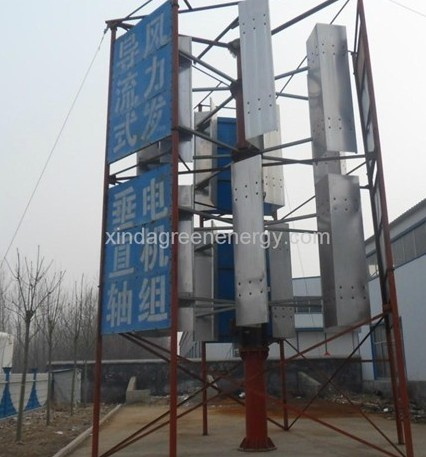

Large vertical wind turbine from 20kw to 200kw
Xinda Green Energy Co., Limited is specialized in handling the business of wind turbine generator, permanent magnet generator(0.05-3000kw), small hydro turbine system, wind solar hybrid system, high efficiency permanent magnet generator, low speed vertical wind turbine generator, street lamp and so on Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development.
| Rated power(kW) | 50KW | 75KW | 100KW | 150KW | 200KW | 250Kw |
| Rated voltage(V) | 220/380V | 220/380V | 220/380V | 220/380V | 220/380V | 400v |
| wind wheel dia((m) | 6m | 8m | 8m | 8m | 8m | 10m |
| Start wind speed(m/s) | 4m/s | 4m/s | 4m/s | 4m/s | 4m/s | 4m |
| Rated wind speed(m/s) | 8m/s | 8m/s | 8m/s | 8m/s | 8m/s | 8m |
| security wind speed(m/s) | 25m/s | 25m/s | 25m/s | 25m/s | 25m/s | 30m |
| generator style | 3-phase AC PM | 3-phase AC PM | 3-phase AC PM | 3-phase AC PM | 3-phase AC PM | 3-phase AC PM |
| Generator speed(r/m) | 100rpm | 100rpm | 100rpm | 100rpm | 100rpm | 100rpm |
| Blade material | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| Blade width(m) | 1.2m | 1.2m | 1.2m | 1.2m | 1.2m | 1.2m |
| Blade heigth(m) | 3m | 4m | 4m | 3m | 4m | 4m |
| Blade layer | 1 | 1 | 1 | 2 | 2 | 3 |
Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
