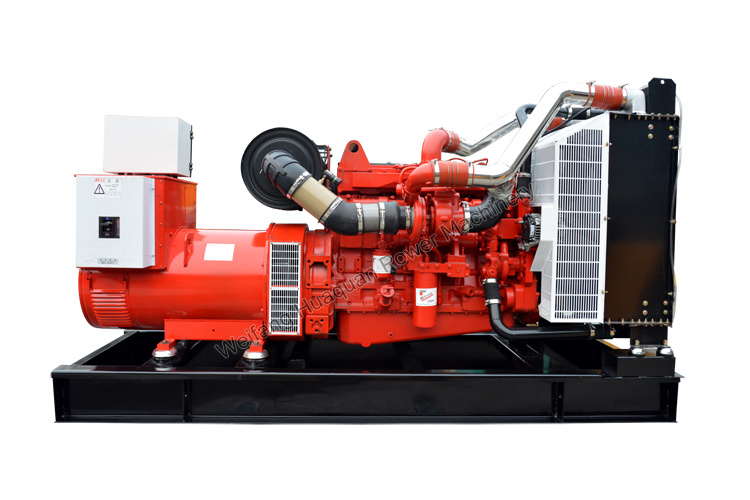

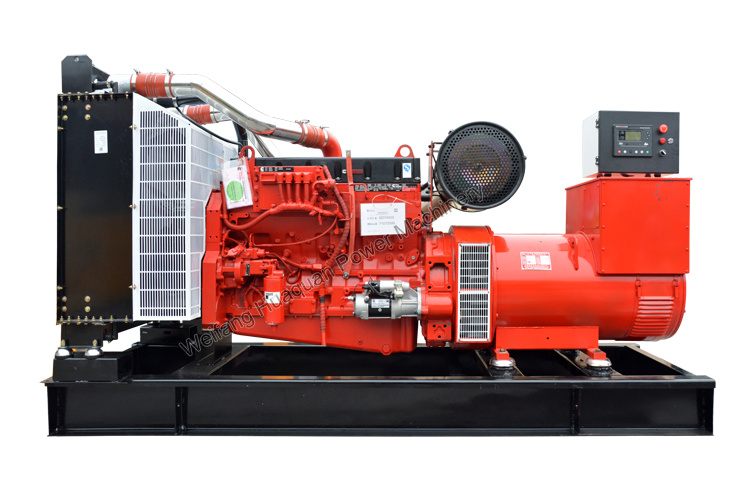

Large Power Generator with Diesel Engine Mtaa11-G3

Large Power Generator with Diesel Engine Mtaa11-G3
Price: Negotiable/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Professional diesel generator manufacturer supply 16kw-1200kw Cummins diesel generator
Cummins diesel generator has established five major applications to gun for the industrial engine market:
Engine for land-based gen-sets
Engine for marine gen-sets
Engine for air compressors
Engine for pumps
Other industrial engines


Cummins Series engine and alternator:
1. Powered by Dongfeng/Chongqing Cummins, it enjoys the features of high reliability, easy maintenance, long continuous running hours and ideal for port, railway, industrial and mining. It always be used for continuous power plant for its top quality.
2. Alternator: Stamford, Faraday, Marathon, Leroy-somer, or other Chinese brand brushless and brush alternators are optional.

Standard Configuration of Cummins engine generators:
1. Cummins engine (Authentic Cummins).
2. Alternator: 100% pure copper wires, rotation magnet, different brands according to your request.
3. Standard control panel, LCD panel or mechanical panel.
4. Water tank, with protection guard.
5. Shock absorber system: protect the generator during its working period.
6. Maintenance-free start battery.
7. Battery connecting cables
8. Maintenance manuals of engine, alternator and generator.
9. Maintenance tools.
10. Standard steel underframe with stoving varnish.
11. Standard export plywood package.
12. Spare parts for maintenance (as your require)
Cummins series generator working conditions:
1.     Cummins generator can be used continuously every day, and it bearing the design concept of putting quality as first in mind, Cummins improves the average overhaul interval up to more than 30,000 hours.
2. Application area: widely used for shop, hospital, high-way, station, construction, farm, etc.
3. Maintenance: it should be maintained after running about 500 hours; and it will reduce the fault rate and extend the lifetime of the unit.
 4. Above suggestions are based on our experience and are intended only as reference.
Cummins diesel generator details:
Generator
Model
Diesel GeneratorDiesel EngineAlternatorSize
L×W×H

(mm)
Weight(KG)
Prime Power
(KW/KVA)
Max Power
(KW/KVA)
ModelPower
(KW)
ModelPower
(KW/KVA)
HQC16GF16/2018/224B3.9-G124PI144D16/201800×760×1430780
HQC20GF20/2522/284B3.9-G124PI144E20/251800×760×1430800
HQC22GF22/2824/304B3.9-G124PI144F22/281800×760×1430830
HQC24GF24/3026/334BT3.9-G136PI144G24/301800×760×1430846
HQC28GF28/3531/394BT3.9-G136PI144H28/351800×760×1430880
HQC32GF32/4035/444BT3.9-G136PI144J32/401800×760×1430896
HQC34GF34/4337/474BT3.9-G136PI144K34/431800×760×1430906
HQC40GF40/5044/554BTA3.9-G250UCI224D40/501900×760×14301030
HQC48GF48/6053/664BTA3.9-G250UCI224E48/601900×760×14301050
HQC58GF58/7364/806BT5.9-G192UCI224F58/732150×830×14961215
HQC68GF68/8574/946BT5.9-G192UCI224G68/852150×830×14961255
HQC80GF80/10088/1106BT5.9-G192UCI274C80/1002150×830×14961300
HQC96GF96/120106/1326BTA5.9-G2110UCI274D96/1202150×830×14961335
HQC112GF112/140123/1546BTAA5.9-G2120UCI274E112/1402150×830×14961425
HQC128GF128/160141/1766CTA8.3-G2163UCI274F128/1602450×850×15161695
HQC144GF144/180158/1986CTA8.3-G2163UCI274G144/1802450×850×15161815
HQC160GF160/200176/2206CTAA8.3-G2183UCI274H160/2002540×945×15501874
HQC184GF184/230202/2536LTAA8.9-G2220UCI274J184/2302540×945×15502020
HQC200GF200/250220/2756LTAA8.9-G2220JCI274K200/2502540×945×15502080
HQC240GF240/300264/330NTA855-G1A261HCI444D240/3003150×1120×16302970
HQC260GF260/325286/358NTA855-G1B283HCE444ES260/3253100×1100×16353198
HQC280GF280/350308/385NTA855-G2A313HCI444E280/3503100×1100×16353198
HQC304GF304/380334/418NTAA855-G7343HCI444FS304/3803250×1190×17003200
HQC320GF320/400352/440NTAA855-G7A370HCI444F320/4003300×1150×17003260
HQC400GF400/500440/550KTA19-G4457HCI544C400/5003500×1375×19803950
HQC450GF450/563495/619KTAA19-G5470HCI544D450/5633700×1750×20304200
HQC500GF500/625550/688KTAA19-G6A554HCI544FS500/6253700×1750×20304200
HQC600GF600/750660/825KTA38-G2664LVI634B600/7504490×1630×24307800
HQC640GF640/800704/880KTA38-G2664HCI634G640/8004490×1630×24308500
HQC720GF720/900792/990KTA38-G2A813HCI634H752/9404490×1630×24308560
HQC800GF800/1000880/1100KTA38-G5880HCI634J824/10304510×1850×25009120
HQC900GF900/1125990/1238KTA38-G9990HCI634K900/11254850×1850×25009400
HQC1000GF1000/12501100/1375KTA50-G31115PI734A1008/12604950×2080×256010120
HQC1200GF1200/15001320/1650KTA50-G81299PI734C1240/15505400×2195×256010600

About Company

1. Who we are?
Weifang Huaquan Power Machinery Co.,Ltd, located in weifang city, Shandong Province, China. We are specialized in producing generators for more than 10 years. We have our own registered trademark, production line, testing equipment, sales team and R&D team.
 2. Our main products.
We dedicate to produce diesel generators, gas generators, water pump units and diesel engines with pulley etc.
Our main engine generator brands: Cummins, Perkins, Isuzu, Deutz, Steyr, Weichai, Weifang (Ricardo), Yuchai, Yandong, Jichai ,Changchai etc.
Our main generator types: land-based open frame generator, silent generator, Automatic generator, and Trailer generator etc;
 Marine generator: variety models for marine diesel generators.
3. Our promise and after- sale service
Huaquan Power focus on quality and responsibility .we pays more attention to the quality what we offer to our client and also care the after sale service for our customers.
(1). Huaquan Power series diesel generators offer one year warranty or 1000 running hours, during its warranty time, we offer spare parts for free. (Caused by the quality problems)
(2). When you buy our generator, we suggest you choose our spare parts service pack.
When you need buy spare parts, you can get them from us all the time.
(3). When you meet problems, you will easy to contact with us.
4. Delivery and Payment terms:
(1) Delivery always after your payment within 2-7 days, we have so many sets in stock, any time you can order from us.
(2)We accept T/T, L/C payment, 30% as deposit.
Prod Model: HQR300
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 1600*600*1100mm
Stroke: Four Stroke
Type: Basic Diesel Generator
Cooling Method: Water Cooling
Installation Method: Fixed
Output Type: AC Three Phase
Huaquan Power is specialized in producing diesel generator set, diesel generator, generator set, diesel generating set, generating, generating set, generator diesel, power generator, gas generator, nautral gas generator, eletric generator, alternator, diesel engine etc. We have open frame generator, automatic generator, trailer generator, silent/soundproof diesel generator, water pump etc. And the brands include Cummins, Perkins, Deutz, Steyr, Isuzu, Ricardo, Yuchai, as well as famous brands of alternator, such as Stamford, Faraday, Leroy-somer, Qiji. Power ranges from 3kw to 1000kw

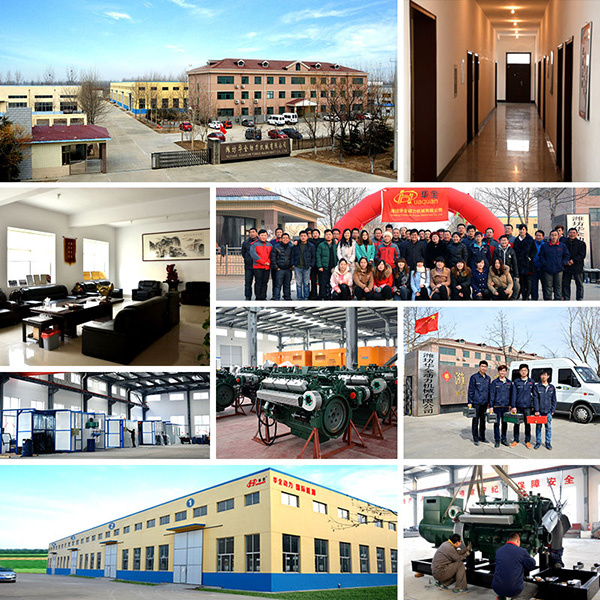

Huaquan Power Mchinery Co., Ltd, located in diesel engine manufacturing powerhouse-Weifang, the capital of kites.

Huaquan Power has more than 500 employees worldwide and it has four advanced production lines, sophisticated testing equipment, complete quality management system, and marketing all around the world in the past 10 years, such as Southeast Asia, the Middle East, Africa and other regions.

Huaquan Power ensures that providing the energy saving, environment protection, high quality and reliable diesel engine and generators, to ensure user satisfaction and rest assured! We sincerely look forward to your cooperation!
