| Price: | US $ 620-650/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P |
| Model |
LDR0.004 -0.7 |
LDR0.009 -0.7 |
LDR0.013 -0.7 |
LDR0.017 -0.7 |
LDR0.025 -0.7 |
LDR0.035 -0.7 |
LDR0.05 -0.7 |
LDR0.065 -0.7 |
LDR0.085-0.7 | ||
| Item | Unit | ||||||||||
| Rated Steam Capacity | Kg/h | 4 | 9 | 13 | 17 | 25 | 35 | 50 | 65 | 85 | |
| Rated Working Pressure |
MPa/ bar |
0.7/7 (Available for adjustment) | |||||||||
| Saturated Steam Temperature | ° C | 171 | |||||||||
| Input Power | KW | 3 | 6 | 9 | 12 | 18 | 24 | 36 | 48 | 60 | |
| Input Current | A | 6 | 9 | 14 | 18 | 27 | 41 | 55 | 73.8 | 92 | |
| Voltage | V | 220 / 380 (Available for adjustment ) | |||||||||
| Water Inlet | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
| Steam Outlet | DN | 15 | 15 | 15 | 15 | 15 | 15 | 20 | 20 | 25 | |
| Blowdown Valve | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 25 | |
| Safety Valve | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 25 | |
| Dimension | mm | 680× 520× 850 | 750× 550× 920 | 850× 600× 1000 | 920× 700× 1250 | 960× 730× 1390 | |||||
| Weight | kg | 60 | 89 | 92 | 100 | 110 | 135 | 151 | 183 | 230 | |
| Prod Model: | LDR 3-60kW |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

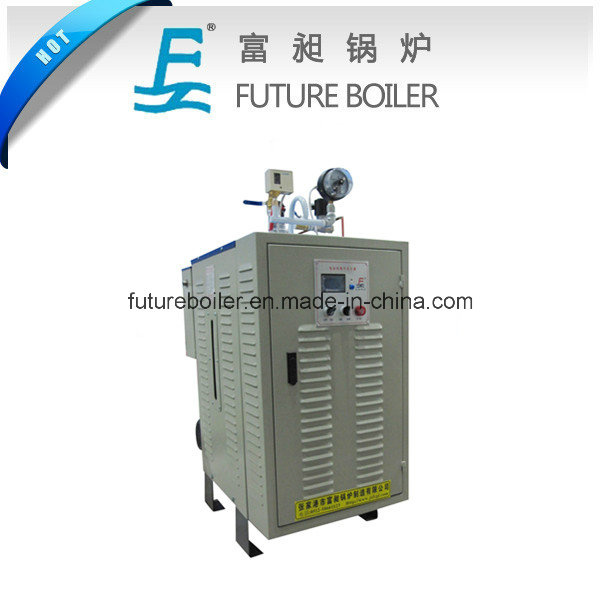

| Product Name: | Laboratory Electric Steam Generator |
| Main Power Source: | 3p/220-600V/50-60Hz |
| Steam Capacity: | 4-85kg/H |
| Input Power: | 3-60kw |
| Working Pressure: | 7bar |
| Function: | Steam Boilers |
| Fuel: | Electric Heating |
| Usage: | Industrial |
| Drum Placement: | Vertical Boiler |
| Media: | Steam |
| Installation: | Packaged Boiler |
| Water Circulation: | Forced Circulation |
| Manufacturing Level: | B |
| Pressure: | Laboratory |
| Burning Style: | Electric Heating |
| Structure: | Shell Boilers |
