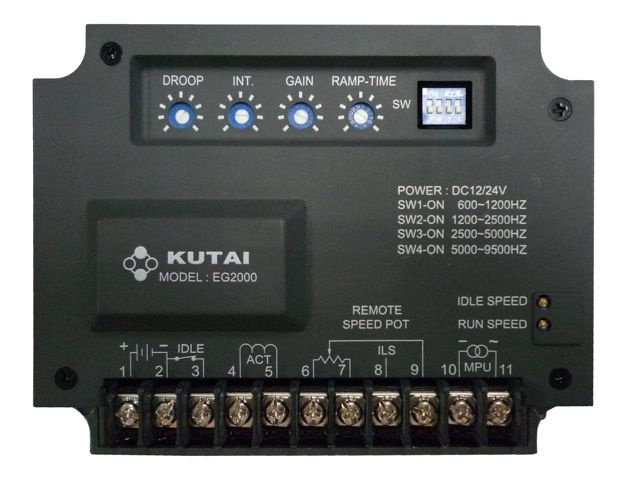

KUTAI ELECTRONIC GOVERNOR EG2000
Universal Electronic Engine Governor Controller
The FR2000 is a universal generator governor / engine speed controller equipped with Smoke Limiting, & Idle Speed. Suitable for diesel, gas and natural gas engines with Built-in & Non-Built-in PTs Pumps, also can be used with Low Current, Electric over Hydraulic Oil Pumps Type Governor Actuators.
Features
Works on a wide ranges of MPU/flywheel frequencies
15 AMP Max Output
Suitable for all types of diesel and Gas engines
High Sensitivity and stable at Low Frequency Variations
Moisture, vibration, and rust protected, Epoxy encapsulated electronics
For Use with Isochronous Generators & Automatic Paralleling PLC controls
Idle Speed Adjustment and connections for a Remote Speed POT
Specifications
EG 2000 Operating Voltage
10 VDC to 30 VDC
Output Current
From 0.5 AMP to 15 AMP
Frequency Range
600 Hz ~ 9500 Hz (PMG Signal)
Idle Speed Frequency
Adjustable From 30~85% of normal
Speed Band
± 0.25% at Steady State
Temp. Stability
Between -40~85 ° C Better than ± 0.5%
Remote Speed Adjustment Range (2 mode)
Adjustable Range ± 5% with 5 kΩ Potentiometer
Ramp Time
3 to 20 Sec. Adjustable
Operation Environment
Operation Temp.: -40~85 ° C
Storage Temp.: -40~85 ° C
Relative Humidity: Maximum 95%
Vibration: 3G @ 100~2 kHz
