Home Generator Products Kpn49-55 Hangzhou Nitrogen

Kpn49-55 Hangzhou Nitrogen

Kpn49-55 Hangzhou Nitrogen
Price: US $ 30000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T

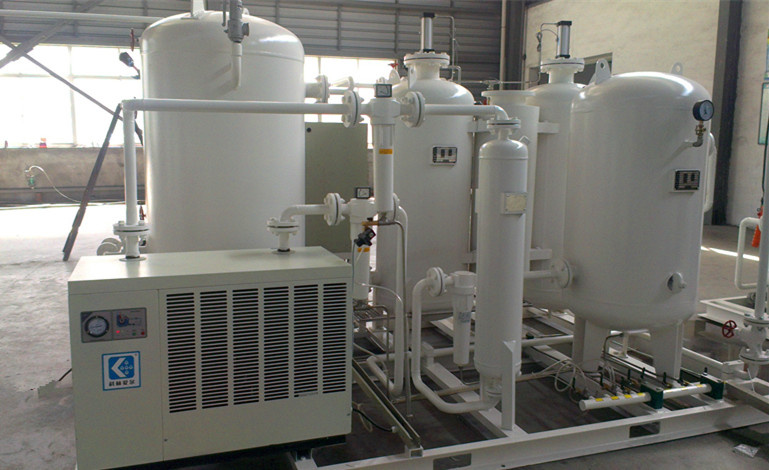

KPN49-55 hangzhou nitrogen

Hangzhou Kelin Aier Qiyuan Equipment Co., Ltd. Is a leading manufacturer in China, dedicated in the design and manufacture of compressed air purification equipment and air separation equipment. We have passed the production license, ISO9001: 2008 and CE certificate. Through the complete process, purification, separation, extraction of compressed air, obtain different purity of N2 and O2.

It have two series and over a hundred kinds of specification of air separation products, mainly include: Vacuum pressure swing adsorption oxygen(VPSA-O2), small and medium size air separation equipment (cryogenic), PSA nitrogen(oxygen) generator, membrane separation nitrogen (oxygen) equipment, gas purification equipment, micro heat regenerative dryer, heatless regenerative dryer, refrigeration dryer, filter, control instrument and so on.

KPN49-55 K: KL
P: PSA
N: N2
55: Flow rate 55Nm3/h
49: Purity 99.99% (95/95%; 97/97%; 29/99%; 39/99.9%; 49/99.99%...)
Flow Rate: 3~5000Nm3/h
Purity: 95%~99.9995%
Pressure: 0.1~0.8mpa(adjustable)
Dew Point: -40~-60C(atmospheric pressure)

Working Principle of China pressure swing adsorption nitrogen generator for medical industry

Under a certain pressure, using the large difference of the diffusion rate between nitrogen and oxygen from the air.
In the carbon molecular sieve, a large number of oxygen is adsorpted by carbon molecular sieve, while nitrogen is collected in a short time, to achieve separation of oxygen and nitrogen.
The adsorption capacity of carbon molecular sieve is significantly different with different oxygen pressures, reducing the pressure will release oxygen from carbon molecular sieve, this make carbon molecular sieve regeneration, then can be used repeatedly.
Using two adsorption towers, one for adsorption and nitrogen generator, the other for desorption and recycling. They switch with each other, thus continuous output of high-quality nitrogen.


Reliable operation

Advanced process design, scientific distribution structure of gas, adsorption tower with patent composite bed structure, unique filling process and special protection measures of carbon molecular sieve, and the cylinder automatic pressure compensation device, ensure that the nitrogen generator equipment can be used over ten years.

Continuous stable production

Adopt international brand valves, the life is 300 million times, efficient and reliable, to ensure continuous and reliable operation of the device.

Advanced control system

PLC control system, high degree of automation, unmanned operation.
Optional touch screen control system, industrial computer control system. Adopt humanized Chinese / English interface design, with multi-screen display function, online display and monitor nitrogen purity, flow rate, pressure, temperature, dew point, fault signal and other parameters, operating parameters can be modified online, remote monitoring, remote transmission and remote start-stop function, high degree of automation, easy to operate, can realize the automatic unmanned operation, and can be joint control with user's DCS system.

The stable quality of Nitrogen
The adsorption process of nitrogen production, purity and pressure adjustable; Emptying automatic interlock devices to ensure nitrogen production, purity, and pressure long-term stability.

Low operating costs

In the small and medium scale equipment, the operating cost of PSA nitrogen generator is lower, compared with other nitrogen generator methods(including cryogenic nitrogen, membrane nitrogen, liquid nitrogen, nitrogen cylinders).

Company Photos:

Exhibition:
Prod Model: KPN49-55
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage: Nitrogen
Flow Rate: 55 Nm3/H
Purity: 99.99%
Technology: Pressure Swing Adsorption(Psa)
Certification: CE
Gas Source: Gas
Hangzhou Kelin Aier Qiyuan Equipment Co., Ltd. is established in 1997, dedicated in high quality compressed air dryer, PSA nitrogen generator, PSA oxygen generator, industrial water chiller, refrigerated air dryer, desiccant air dryer and air filter, .

We provide customers with a full range of innovative, problem-solving products to make customers' production more safer, more reliable and more economical. In the meanwhile, we also provide customized solutions to meet customers' different requirements.

Kelin Aier has three independent factories to produce different product. With 17 years' fast development, Kelin Aier has became the leading manufcturer of compressed air dryer treatment in China. We belive quality, innovation and service are important factors that keep us competitive in the global market.

Today, we have established 13 branch offices in major China cities, more than 200 distributors in China. Products have been sold to more than 40 countries.
Please feel free to contact us for further information.
