Kjeldahl Nitrogen Determination Apparatus
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Kjeldahl Distillation Units
Automatic Kjeldahl Distillation System:The K series Kjeldahl consist of three models: K9840, K1100, K1100F with different levels of automation. K series features including various generator, pumps and valves for quantified liquids, cooling water and distillate temperature control, solutions adding, emptying tubes and pips and washing. K9840
K9840 is an automatic Kjeldahl distillation device. Characteristic1. External connecting titration device, including colorimetric or potential titration device;2. Manual or automatic mode changeover free;3. 4.3 inch color screen;4. Solutions adding are quantified;5. Multi protection, safety door, tube position, cooling water testing, etc.6. Self-trouble shooting functions for valves, pumps and sensors. 7. Tube and pips automatic emptying and washing. K1100/F

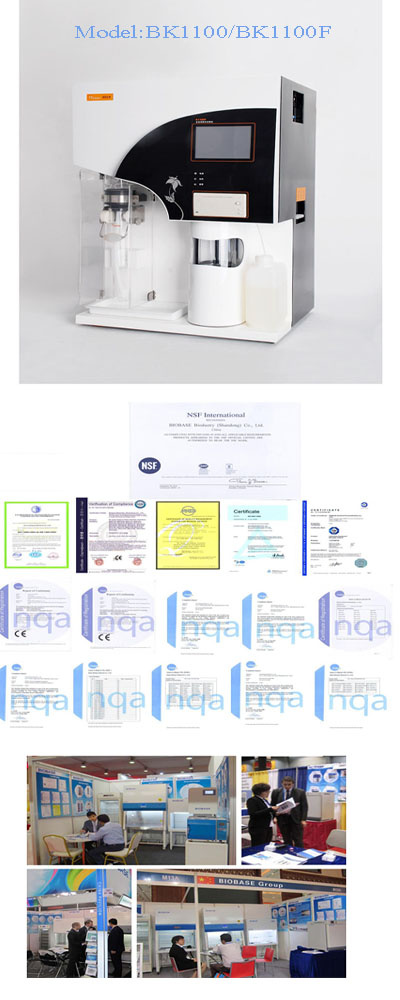

K1100 and K1100F are automatic Kjeldahl analyzer, consist of distillation, titration, calculation, data treatment. The differences between two models: K1100F adopt 300ml digestion tube, available titration while distillation; better ARM operation system and more methods editing. Characteristic1. Built-in colorimetric titration device;2. Two steam models, can adjust solutions adding's sequence, for distillation and absorption special samples;3. Touch screen used for operating and display;4. Built-in printer, USB and series port for data outlet,5. Samples' methods can be edited and store6. Almost features of K9840 plus;
|
Instillation Requirements |
|
Power supply |
220 VAC ±10%, 50Hz |
|
Power consumption |
2000W |
|
Water consumption |
1.5L/Min |
|
Ambient temperature |
5 – 40ºC |
|
Ambient humidity |
80% |
|
|
K9840 |
K1100 |
K1100F |
|
Net weight |
30 |
35 |
35 |
|
Dimension |
|
455*391*730mm |
455*391*730mm |
|
Performance Data |
|
Measure range |
0.1mg – 200mg |
|
Analysis time |
5 – 10min |
|
Recovery |
≥99.5% |
|
Samples available |
Solid ≤ 5g; Liquid ≤20ml |
|
|
K9840 |
K1100 |
K1100F |
|
Burette accurate |
|
1.0μL/ step |
1.0μL/ step |
|
Reproducibility |
|
±0.5% |
±0.5% |
|
Kjeldahl distillation units |
K9840 |
K1100 |
K1100F |
|
Distillation with auto dilution, alkali addition, distillation, tube emptying. |
YES |
YES |
YES |
|
Solutions adding quantified; Steam speed controlled; sensors for protection, such as safety door, tube positioning, cooling water testing, over current, over temperature, etc. |
YES |
YES |
YES |
|
Automatic trouble shooting functions interface, for valves, pumps, positions, flows, etc. Practical for trouble shooting without professional knowledge |
YES |
YES |
YES |
|
Titration device, with calculation functions, data outlet via built-in printer, USB and series port |
External
|
YES |
YES |
|
Samples' methods editing and storing |
|
YES |
YES |
|
Supper high speed, titration and distillation at the same time, to improve experiment's efficiency |
|
|
YES |
|
Functions List |
|
|
|
|
|
K9840 |
K1100 |
K1100F |
|
Variable steam generator |
YES |
YES |
YES |
|
Cooling water pressure monitor |
YES |
YES |
YES |
|
Cooling water temperature monitor |
|
YES |
YES |
|
Automatic alkali solution adding |
YES |
YES |
YES |
|
Automatic dilute water |
YES |
YES |
YES |
|
Auto receiver solution adding |
YES |
YES |
YES |
|
Tube emptying |
YES |
YES |
YES |
|
Removable drain tray |
YES |
YES |
YES |
|
Safety door |
YES |
YES |
YES |
|
Tube on position sensor |
YES |
YES |
YES |
|
Tube replacement sensor |
YES |
YES |
YES |
|
Colorimetric titration device |
|
YES |
YES |
|
Results calculation |
|
YES |
YES |
|
Result and data storing |
|
YES |
YES |
|
Built-in printer |
|
YES |
YES |
|
Automatic washing tube and pips |
YES |
YES |
YES |
|
Trouble shooting self-detecting functions |
YES |
YES |
YES |
| Prod Model: |
BK9840 BK1100 BK1100F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mode: |
Manual or Automatic |
| Titration Device: |
Calculation |
| Solution: |
Quantified |
| Titration And Distillation: |
at The Same Time |
| Dimension: |
455*391*730 455*391*730 |
