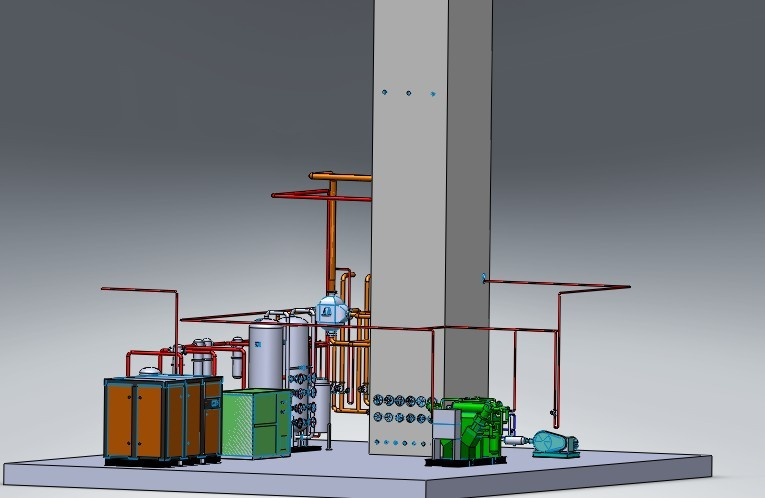

KDON-180/30 Type Oxygen Plant Gaseous Air Separation Plant
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,FCA |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Quick Details:
Condition: New
Place of origin: China(mainland)
Brand name: UIG
Model number: KZO, KZON TYPE
Production capacity: 180 m3/hour
Power:
Voltage:
Certification: ISO 9001: 2000
Warranty: 1 year
Life: 20 years with proper maintenance
After-sales service provided: Engineers available to service plants overseas
Usage: Industrial and medical (oxygen, nitrogen).
UIG Air separation plants are designed for a vast range of capacities and products summarized below: FOR OXYGEN 99.999%
Condition 1: 180m3 oxygen per hour
Condition 2: 30m3 oxygen per hour
* This flow is new-developed and designed, we use the technology maturely.
* Simple operation, convenient maintenance, short starting, low specific power consumption.
* High purity of oxygen is obtained from our plant and tit operates stably which can meet and exceed technical requirement of GB8982-1998medical oxygenstandard.
|
Model contents |
KZON-
50/50 |
KZON-
80/80 |
KZON-
100/100 |
KDON-
180-20 |
KDON-
300-50 |
KDON-
350-80 |
KDON-
500-150 |
KDON-
800-200 |
KDON-
1000-300 |
|
Gox flow |
Nm³/h |
50 |
80 |
100 |
180 |
300 |
350 |
500 |
800 |
100 |
|
Gox purity |
%(O2) |
≥99.6 |
≥99.6 |
≥99.6 |
≥99.6 |
≥99.6 |
≥99.6 |
≥99.6 |
≥99.6 |
≥99.6 |
|
Gan flow |
Nm³/h |
50 |
80 |
100 |
20 |
50 |
80 |
150 |
200 |
300 |
|
Gan purity |
Ppm(O2) |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
Operating
pressure |
Mpa
|
1.2 |
1.2 |
1.2 |
1 |
1 |
1 |
1 |
1 |
1 |
|
Start-up time |
hour |
≤12 |
≤12 |
≤12 |
≤10 |
≤10 |
≤8 |
≤8 |
≤8 |
≤8 |
Operating
period |
year |
≥1 |
≥1 |
≥1 |
≥1 |
≥1 |
≥1 |
≥2 |
≥2 |
≥2 |
Products |
Capacity
(m3/h) |
Purity
(%) |
MAX.Pressure
(Mpa) |
Dewpoint
|
O2 |
180
MAX.200 |
≥99.7 |
16.5 |
-70 |
|
Oxygen of high purity and very stable, meet and exceed technical indicators of GB8982-1998 |
N2 |
40
MIN 0 |
≥99.999 |
200 |
-70 |
Continuous operation period |
≥24 months |
Defrost Period |
12 Hours |
Starting time |
8-12 Hours |
Process air |
Compressor Capacity |
1350 Nm3/h |
Working Pressure |
0.95MPa |
Power |
Air compressor |
160KW |
Air pre-cooling system |
9 KW |
Power of heater |
27KW( 9KW) |
Booster |
30 KW(23KW) |
(16.5 MPa)
Liquid Oxygen Pump |
4 KW |
Cooling Water |
60T/hour
Used circulating cooling water |
| Prod Model: |
KDON-180/30 TYPE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Industrial, Gas-Liquid Separation, Air Separation |
Hangzhou Union Industrial Gas-equipment Co., Ltd. Are a technology enterprise specialized in R&D, design and manufacture of various air separators and cryogenic application equipments. Our company always insists on taking the technology as the motility, emphasizing technique and products innovation, cooperating with many scientific and research institutes, academic schools which are in the same industry range with us. On the basis of integration into advanced design concept and strict management procedure and the outstanding production technique and give the enthusiastic service support. Decisive adoption of new processes, new technology, the R&D and manufacturing capability of the company is enhanced and the development is oriented to the Saving Energy variety and perfection of the products.
The products of the company cover the fields of metallurgy, petrochemical industry, electronics, machinery, construction material, Medicine, New materials which have been well received all over the country and also been supplied to many Asian and African countries(Russia, Kazakhstan, Tajikistan, India, Bangladesh, Thailand, Philippines, North Korea, Mongolia, Equatorial Guinea, Botswana, Zambia, Angola, Tanzania). The main products are: the medium and small size oxygen nitrogen plants, liquid oxygen and liquid nitrogen plants, oxygen and nitrogen liquefaction plants, high purity nitrogen generators, molecular sieve pressure swing adsorption plants and PSA (VPSA) oxygen (nitrogen) plants.
In addition to provide high-quality products, our company also undertakes technical consulting, engineering design, equipment installation, technical training and other services, and implementation of the turn-key project. Sincerely welcome your contact and visit to the company.
