Home Generator Products KDL6500T Portable 4*1000W Light Tower Generator

KDL6500T Portable 4*1000W Light Tower Generator

KDL6500T Portable 4*1000W Light Tower Generator
Price: US $ 1650/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 5/Piece
Pay Type: L/C,T/T

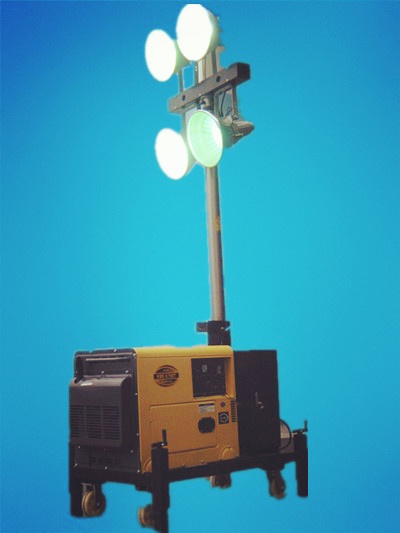

This series of diesel mobile lighting towers are manufactured by Kaiao machinery. This type can be applied for wide situations, such as construction sites, emergency, industrial, mining, civil engineering and event lighting.

Brief introductions:

All of the light towers are equipped with Kaiao high quality generators. The new launched mobile light tower features strong wind-proof ability and large area of illumination.

Both the mast and the illumination angle of the light tower can be adjusted freely, which give you much flexibility. Meanwhile, the tower is designed user-friendly both for operating and handling.

The light tower is equipped with automotive quality wheels and tires suitable for any road surface. A connecting hitch and steel cable is provided for connecting to towing vehicles.
ModelKDLT4X400KDLT4X1000KDLT4X1000-12SKDLT4X1000-15S
Max. extend of mast 4.8-6m 7m7--9m 7--9m
Raising / Falling mast Winch(Mechanical) / Button(Electric)
Turning angle 360 degree non-continuous
Total power of lamps 4×400W 4×1000W4×1000W 4×1000W
Type of lamp Metal halide lamp
Light capacity 4×25000 lumen 4×110000 lumen4×110000 lumen4×110000 lumen

Lifetime of lamp 2000 hours 5000 hours5000 hours 5000 hours
Working temperature ≤85
Connection protection index IP54
Light Coverage 16005 to 7 acres5 to 7 acres 5 to 7 acres
Gen set Model XDG3600SE XDG5000SEXD8 XD10
Max. power kw 3.0  4.5 1215
Prime Power kw 2.8  5.0 1012
Voltage 110~240V  110/190V  220/380V  230/400V
Engine model XD178FAE XD186FAE385485
Diesel engine typeAir-cooled, 4-stroke,Vertical,Single-cylinder,  Direct injection combustion.3-cylinder, in line, water-cooled Natural 4-cylinder, in line, water-cooled Turbo charged
Starting systerm Electric
Alternator 2-pole,brushless 4-pole,brushless
Fule tank capacity L1515100L 100L
Control systerm Mechanical control pannel/Digital control pannel 6120 Digital controller 6120 Digital controller
Power outlet 2222
Stabilizer Support 2 × manual 5 × manual5 × manual 5 × manual
Tire Size Diameter=25cm Diameter=52cmDiameter=52cm Diameter=70cm
Anti-wind capacity ≤6 ≤10≤10 ≤10
Brakes Manual
Retracted Dimension 1300mm × 840mm × 2600mm 3800mm × 1100mm × 1600mm4400 × 1200 × 1930 4400mm × 1450mm × 2100mm
3800mm × 350mm × 350mm3800mm × 350mm × 350mm 3800mm × 350mm × 350mm
1550mm × 1150mm × 1610mm2010mm × 1150mm × 1170mm 2010mm × 1150mm × 1170mm
4 pcs 520mm × 520mm × 370mm4 pcs 520mm × 520mm × 370mm 4 pcs 520mm × 520mm × 370mm
Container load (20FT / 40FT) 12 / 24 (At least) sets 6 / 12 (At least) sets6 / 12 (At least) sets 6 / 12 (At least) sets
Net weight 350kg 870kg1870kg 1950kg

Prod Model: KDL6500T
Markets: South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine: Diesel
Power: 1kw*3/4
Lamp: Metal Halide
Light Capacity: 330000
Extension Of Mast: 0-6m
Anti-Wind Capacity: 6 Grades
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:

Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),

Air-cooled diesel generator set(2KW--8.5KW)

Air-cooled diesel engine farming tillers(4HP, 5HP, 8HP)

Air-cooled diesel generator light tower(400W-10000W)

Air-cooled gasoline generator (650W-5000W)

Water-cooled Diesel Generator(10kw-100kw),

Water pump unit(2 '', 3 '', 4 '')

Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.

Electric welding set, construction machinery, and gardenging machinery, etc.

Kaiao lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 20000 square meters, we have more than 150 staff members, among which three are around 20 are professional technicians. Advanced production lines and inspection equipments allow high quality productions.

We insist on technical innovation promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality productsand services.

Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
