Principle of operation

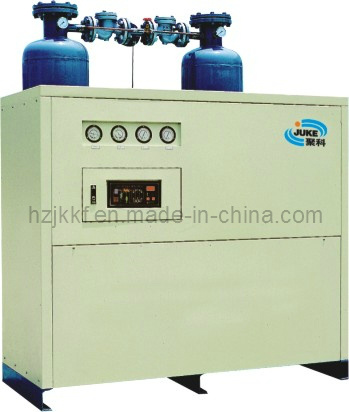

Combined low dew point compressed air dryer is a low dew point drying equipment, which is together with frozen type dryer and adsorbed dryer. This equipment uses the new process flow, it has characteristics of low consumption, energy saving and intellectualized operation. What's more, it can meet the requirements of different customers.
Technology index
LOperating pressure: 0.6-1.0Mpa(According to the requirement to provide1.0-3.0Mpa)
LInlet temperature: Less than 45 degree
LCooling Method: Hydro cooling, air-cooled
LFinished product gas dew point at normal pressures: -60~70 degree
|
Model |
Rated amount of |
power |
Refrigerant compressor |
Cooling way |
Cooling water pipe diameter |
Inlet and outlet caliber |
|
gas processing |
(kw) |
DN (mm) |
|
(Nm3/min) |
|
|
|
KCD—1.6/8 |
1.6 |
220V/50Hz |
0.25 |
air-cooled |
3/4” |
25 |
|
KCD—3/8 |
3 |
0.75 |
3/4” |
32 |
|
KCD—6/8 |
6 |
1 |
3/4” |
40 |
|
KCD—10/8 |
10 |
2.3 |
3/4” |
50 |
|
KCD—20/8 |
20 |
3.5 |
1” |
65 |
|
KCD—30/8 |
30 |
5.7 |
5/4” |
80 |
|
KCD—40/8 |
40 |
5.7 |
3/2” |
100 |
|
KCD—60/8 |
60 |
380V/50Hz |
11 |
air-cooled/ water-cooling |
3/2” |
125 |
|
KCD—80/8 |
80 |
14.5 |
2” |
150 |
|
KCD—100/8 |
100 |
18.5 |
2” |
150 |
|
KCD—120/8 |
120 |
22 |
2” |
150 |
|
KCD—150/8 |
150 |
29.5 |
3” |
200 |
|
KCD—200/8 |
200 |
36.5 |
3” |
250 |
