Kaplan Turbine Unit2X5.5mw/ Axial Flow Turbine
| Price: |
US $ 99999/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
The axial flow turbine is an inward flow reaction turbine, which means that the working fluid changes pressure as it moves through the turbine and gives up its energy. The design combines radial and axial features. The inlet is a scroll shaped tube that wraps around the turbine''s wicket gate. Water is directed tangentially through the wicket gate and spirals on to a propeller shaped runner, causing it to spin.
The axial flow type turbines are available for hydraulic power resources of medium and low heads. Fuchun manufactures both the Propeller type(fixed blade type)and the Kaplan type (adjustable blade type)turbines. The Propeller type turbines are suitable for hydro power stations with small or medium capacities and heads and relatively Stable loads. The Kaplan turbines are suitable for hydro power stations with medium or large capacities and heads, and relatively unstable loads.
The axial flow type turbines manufactured by the Fuchun, are ranging from 3to 45m in water head, 100kW to 30MW in capacity and 0.8 to 6m in runner diameter.

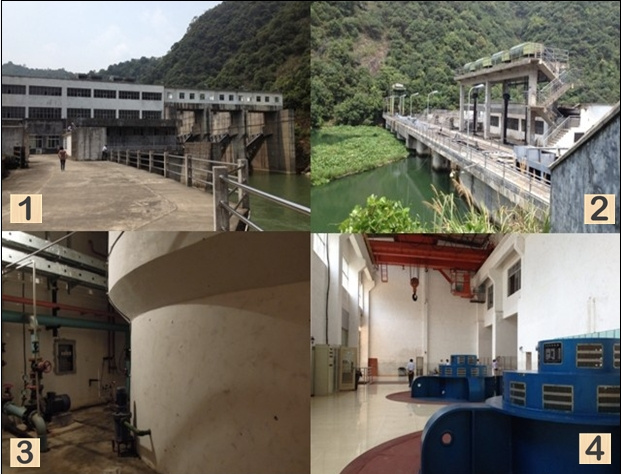

Partial reference of data.
|
Item |
Value |
|
Attachment Area |
1125m² |
|
Reservoir Storage Capacity |
11.7 million m³ |
|
Rated Head |
13.3m |
|
Rated Discharge |
99.46m³/s |
|
Installed Capacity |
2×5.5MW |
|
Height of Dam |
25.22m |
|
Length of Dam |
38m |
|
Bottom Width of Dam |
28.8m |
|
Turbine Type |
Vertical Kaplan |
|
Spiral Case |
Concrete |
|
Weight of Turbine |
56t |
|
Unit Generator Capacity |
5500KW |
|
Outgoing Line Voltage |
6.3kV |
|
Weight of Generator |
98t |
| Prod Model: |
ZDG02-LH-275/ SF5500-36/4250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Founded in 1978, Fuchun Industry Development Co., Ltd was moved to Shenzhen in 1998. In 2005, in the process of state-owned enterprise reform, our company has conglomeration and merger with GANZHOU COMPLETE SETS OF POWER GENERATING EQUIPMENTS MANUFACTURE Co., Ltd, dealing with all export projects, especially Complete Sets of Power Generating Equipments including design, manufacture, and installation and operation supervision, training.
Our factory has over 60 years experience in hydro power equipment manufacturing activities. We continue to hold the Fuchun's philosophy-adding product value, keeping good quality and providing good service.
Nowadays the company's business not only engages in manufacturing of small power equipment, but also covers engineering, design, procurement and construction of small and medium size hydro power plants (10kw-50MW) and coal-fired (biomass) power plants (200kw-25MW). We either wholly own or jointly own with other partners to have invested several factories in the power equipment industry, such as Jiangxi Ganzhou etc. We also dealing with small wind power generator and solar power plants, power substations, supply of power related equipment and machines of boiler, fan, pump, environment equipment (smoke flux treatment, water treatment), coal excavation facilities, dust and slag handling equipment, thermal power generation turbines, driving turbines, hydro turbines, wind turbines, generators, transformers, power cables, weight scales, cranes, bull dozers, analysis facilities and so on. Our company is also willing to take the contract of small and medium power generation factory consulting business because we have strong technical force of engineers and technicians.
In 30 years of the company history, we designed and manufactured a large mount of hydro turbine generators, not only for domestic China but also export to more than 30 counties, such as Guatemala, Ecuador, Congo, Pakistan, USA, Canada, Cuba, Germany, Austria, Turkey, North Korea, Viet Nam, Burma, Nepal, Norway, Denmark, Belgium, Uruguay, Russia, Georgia, Bulgaria, Bhutan, France, UK, Italy, etc.
Our company sincerely welcomes all clients, partners, and friends from all over the world to contact us for business co-operation. We believe that our efforts will bring you and us a win-win situation.
