Kaplan Turbine Generator Unit for Hydro Power Project
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
Kaplan Turbine Generator Unit for Hydro Power ProjectKaplan turbine Kaplan turbine is a kind of turbine suit to low water head 2-20 meters, and with certain big flow, normally divided into fixed blades and adjustable blades turbine. Main components including: runner, draft cone, water chamber, guide vane, bearing, and main shaft. The spiral case could be steel or concrete. The runner diameter we can manufacture is from 60cm to 4meters, with rated output 50Kw to 20Mw.

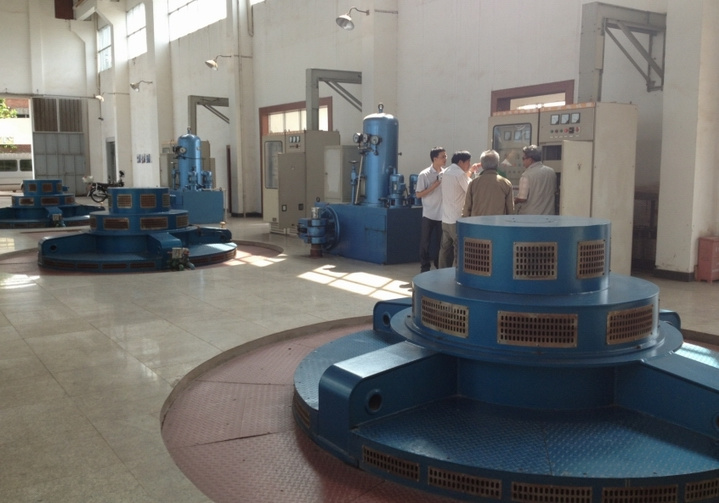

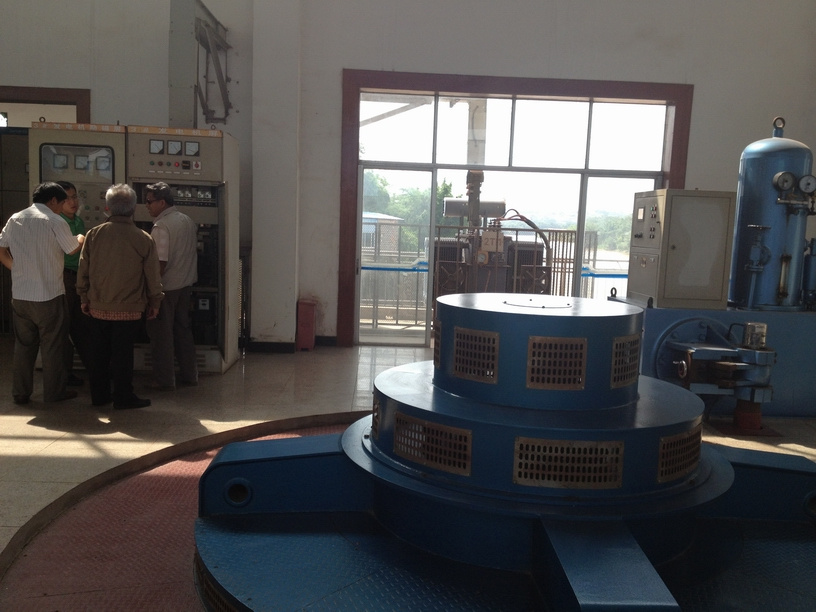

Turbine units normally be vertical shaft arrangement. Generator equipped with same or different shaft, with Anyway, they will share the same rotating speed. If specially specially required, a speed increase gear could be equipped between turbine and generator in order to smaller the generator size.
Kaplan Runner Kaplan runner with 3 to 6 blades, fixed blades runner, blades are casted and then welded on the runner hub, and bolts connection with draft cone. Regarding the adjustable blades runner, the hub is designed to be hollow, and a control rod is designed in the shaft middle to change blades angle in order to suit different flow.
Runner material: stainless steel, or other specified by the client
Kaplan runner has been manufactured by us all this high strength, higher efficiency, and longer service life. The factory tests including static and dynamic balance test, UT test, and dimension measurement.
2.Accessory equipment:
Inlet valves:Hydraulic / electric control butterfly valves, ball valves, gate valves .
Governors: YDT, YWT, DST and TY series.
Excitations: SCR excitations, DC excitaiton systems, AC brushless exciters.
Oil pressure supply systems, control facilities, automatic control systems and so on.
We are also committed to fulfill all essential requirements with respect to quality, health, safety and continuously aim to reduce the harmful impact on the environment.
We sincerely look forward to cooperating with you if you are interested in our products.
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Kaplan Turbine: |
Fixed Blades, Adjustable Blades |
| Water Head: |
From 3m to 80m |
| Installation Capacity: |
From 50kw to 30mw |
| Runner Blades Material: |
Stainless Steel |
| Auxiliary Equipment: |
Governor, Inlet Valve, Excitation System, etc. |
Founded in 1978, Fuchun Industry Development Co., Ltd was moved to Shenzhen in 1998. In 2005, in the process of state-owned enterprise reform, our company has conglomeration and merger with GANZHOU COMPLETE SETS OF POWER GENERATING EQUIPMENTS MANUFACTURE Co., Ltd, dealing with all export projects, especially Complete Sets of Power Generating Equipments including design, manufacture, and installation and operation supervision, training.
Our factory has over 60 years experience in hydro power equipment manufacturing activities. We continue to hold the Fuchun's philosophy-adding product value, keeping good quality and providing good service.

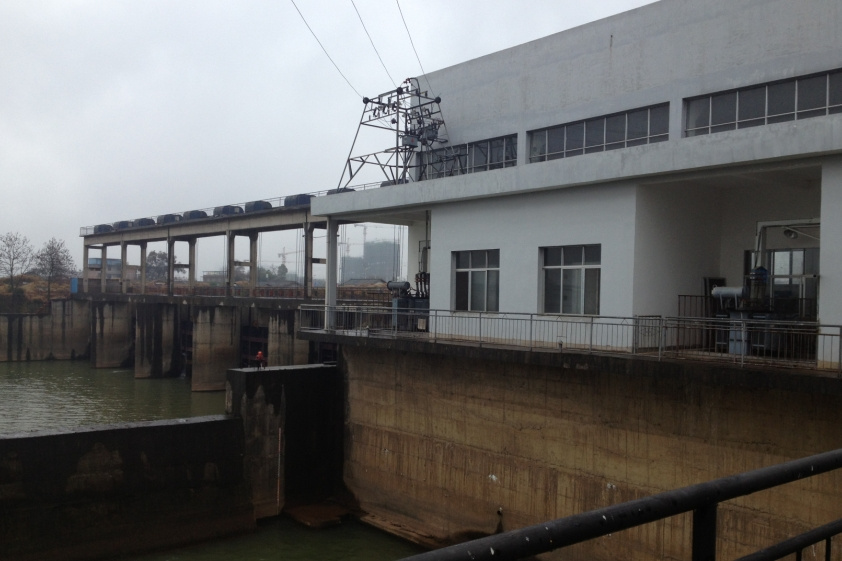

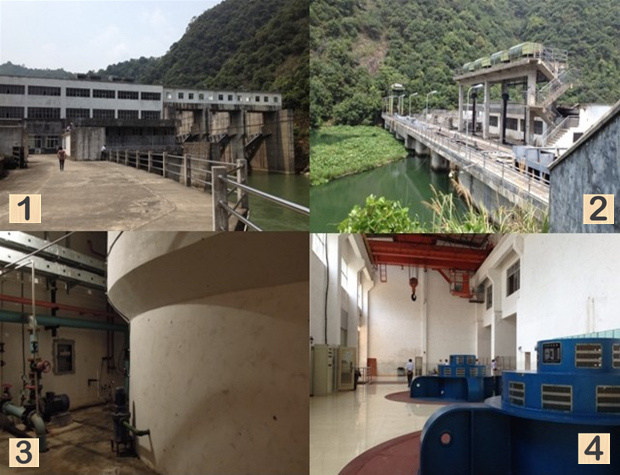

Nowadays the company's business not only engages in manufacturing of small power equipment, but also covers engineering, design, procurement and construction of small and medium size hydro power plants (10kw-50MW) and coal-fired (biomass) power plants (200kw-25MW). We either wholly own or jointly own with other partners to have invested several factories in the power equipment industry, such as Jiangxi Ganzhou etc. We also dealing with small wind power generator and solar power plants, power substations, supply of power related equipment and machines of boiler, fan, pump, environment equipment (smoke flux treatment, water treatment), coal excavation facilities, dust and slag handling equipment, thermal power generation turbines, driving turbines, hydro turbines, wind turbines, generators, transformers, power cables, weight scales, cranes, bull dozers, analysis facilities and so on. Our company is also willing to take the contract of small and medium power generation factory consulting business because we have strong technical force of engineers and technicians.
In 30 years of the company history, we designed and manufactured a large mount of hydro turbine generators, not only for domestic China but also export to more than 30 counties, such as Guatemala, Ecuador, Congo, Pakistan, USA, Canada, Cuba, Germany, Austria, Turkey, North Korea, Viet Nam, Burma, Nepal, Norway, Denmark, Belgium, Uruguay, Russia, Georgia, Bulgaria, Bhutan, France, UK, Italy, etc.
Our company sincerely welcomes all clients, partners, and friends from all over the world to contact us for business co-operation. We believe that our efforts will bring you and us a win-win situation.
