1.50Hz, 5. kVA/6kVA, 230V/400V, 7.9A, 3000r/min. 3-phase
2. CE & ISO9001 approved
3. Silent structure
4. Fuel-Saving
5. Available for different market
6. Ideal for standby power and emergency power
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and
Manufacture of small special:
Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),
Air-cooled diesel generator set(2KW--8.5KW)
Water-cooled Diesel Generator(10kw-100kw),
Water pump unit(2 '', 3 '', 4 '')
Electric welding set, construction machinery, and gardenging machinery, etc.
Wuxi Kaiao Power Machinery CO.,LTD is a new company, which is founded in 2007.But as a new comer, we are better. Our world market is expanding day by day. We will use our heart to let our diesel generator bright the world to help more people. Believe us! We grow up with you.
We are specialized in the development and manufacture of air-cooled gasoline generator sets air-cooled diesel engine, air-cooled diesel water pump , diesel welding generator,b ig power generator sets,construction machinery and gardening machinery,etc. It possess es the strong technical force, and perfect sales service system. .The company has passed ISO9001-2000 quality management system certifica tion and CE certifica tion , accessing to the UPA certification.
The company has three factories modern standards, the company covers an area of 300,000 square meters, construction area of 20,000 square meters, more than 200 workers, including middle and high-ranking technical personnel more than 30 people, advanced automated assembly line production equipment 4; product testing equipment High-power single-cylinder air-cooled diesel engines and diesel generating sets comprehensive testing and analysis laboratory testing systems.
Annual production capacity:100,000 Taiwan diesel, 50,000 units / sets. Companies export products rose steadily, the productsare exported around the world, the major markets: Europe, the Unite d States, Africa, South America, the Middle East, and other developed countries. The company has passed ISO9001-2000 quality management system certification, access to the EU's CE safety certification.
WUXI KAIAO POWER MACHINERY CO., LTD |
|
|
|

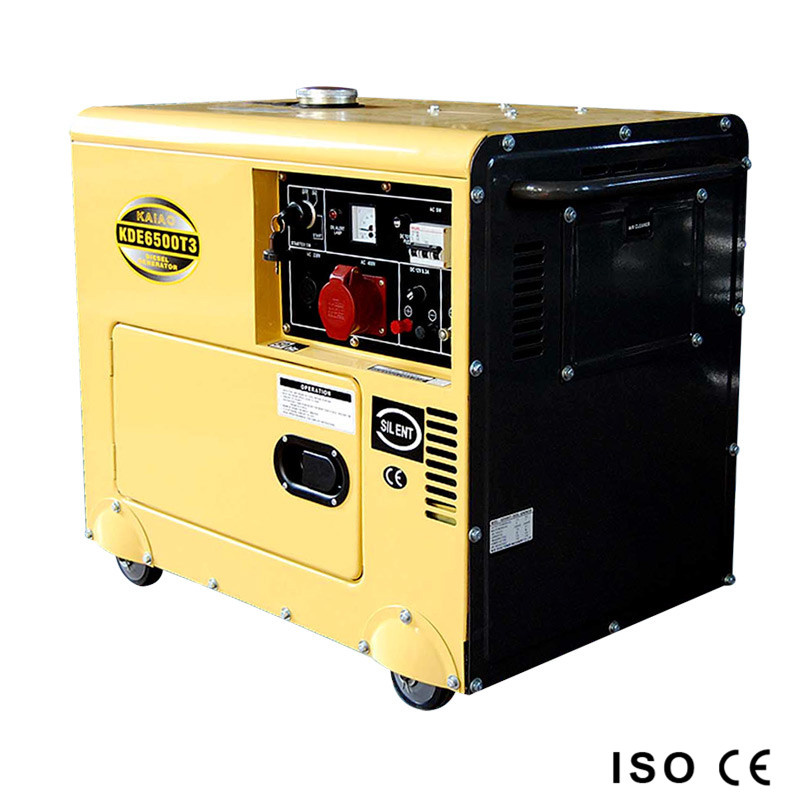

Diesel generator set KDE6500T3 |
Model | KDE6500T3 |
Frequency (Hz) | 50 |
Output power (KVA) | 5.5 |
Max. Power(KVA) | 6 |
Voltage (V) | 230/400 |
Current (A) | 7.9 |
Engine speed (r/min) | 3000 |
Phase | Three |
Power factor(cosφ ) | 0.8 |
Excitation system | Self-excited constant voltage |
Noise level (7m) | DB (A): 77 |
Fuel tank capacity (L) | 15 |
Structure | Silent |
Panel | Ordinary |
Outputsocket | Two |
DC12V output | Terminal post |
Engine Model | KA186FAE |
Bore*stroke (mm) | 86 *72 |
Displacement (L) | 0.418 |
Power (KW) | 5.7/3000 |
Fuel consumption rate (g. KW/h) | 275.1 |
Compression ratio | 19 |
Lubrication system | Spring |
Engine starting system | Electric starter |
Diesel oil model | Summer: 0#, winter: -10# |
Lube oil model | SAE10W-30 (above CD grade) |
Lube oil capacity (L) | 1.65 |
Battery capacity(V-AH) | 12V-36Ah |
Net weight (KG) | 170 |
Dimension(L*W*H) | 970× 560× 770 |
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:
Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),
Air-cooled diesel generator set(2KW--8.5KW)
Air-cooled diesel engine farming tillers(4HP, 5HP, 8HP)
Air-cooled diesel generator light tower(400W-10000W)
Air-cooled gasoline generator (650W-5000W)
Water-cooled Diesel Generator(10kw-100kw),
Water pump unit(2 '', 3 '', 4 '')
Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.
Electric welding set, construction machinery, and gardenging machinery, etc.
Kaiao lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 20000 square meters, we have more than 150 staff members, among which three are around 20 are professional technicians. Advanced production lines and inspection equipments allow high quality productions.
We insist on technical innovation promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality productsand services.
Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
