Home Generator Products Kaiao 3-Phase Silent Generator (6kVA)

Kaiao 3-Phase Silent Generator (6kVA)

Kaiao 3-Phase Silent Generator (6kVA)
Price: Negotiable
Trade Terms: CFR
Min Order: 10/Set
Pay Type: L/C,T/T

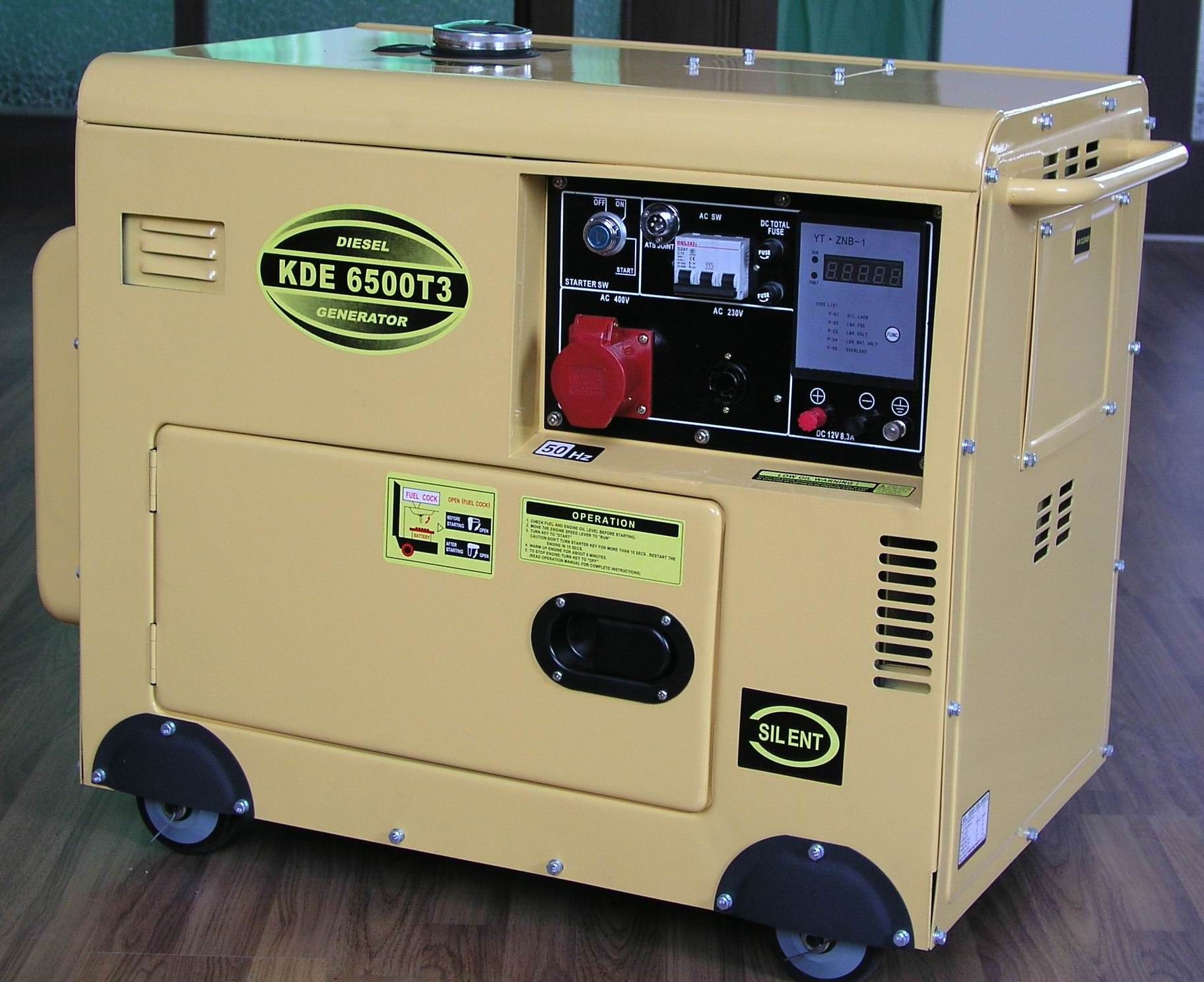

KAIAO 3-phase soundproof generator(KDE6500T3)
1. Frequency(50Hz, 60Hz), rate power(5.5kVA/6kVA, 6.3kVA/7kVA), voltage(230V/400V, 240V/416V)
2. CE&ISO9001 approved, powered by KAIAO advanced air-cooled diesel engine
3. Silent structure and fuel-saving
4. Ideal for home emergency use or as standby power supply
5. Large fuel tank, ensuring hours of continuous output
6. A variety of specially-designed control panels available for different markets

Wuxi Kaiao Power Machinery Co., Ltd. specialized in the development and manufacture of small special:
Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),
Air-cooled diesel generator set(2KW--8.5KW)
Water-cooled Diesel Generator(10kw-100kw),
Water pump unit(2 '', 3 '', 4 '')
Electric welding set, construction machinery, and gardenging machinery, etc.
    WUXI  KAIAO  POWER  MACHINERY    CO.,   LTD



Diesel  generator  set  KDE6500T3
  Model  KDE6500T3
Frequency  (Hz) 50 60
Output  power  (KVA) 5.5 6.3
Max.   Power(KVA) 6 7
Voltage  (V) 230/400 240/416
Current  (A) 7.9 8.7
Engine  speed  (r/min) 3000 3600
Phase Three
Power  factor(cosφ ) 0.8
Excitation  system Self-excited  constant  voltage
Noise  level  (7m)  DB  (A):   77
Fuel  tank  capacity  (L) 15
Structure Silent
Panel Ordinary
Outputsocket Two
DC12V  output Terminal  post
Engine  Model KA186FAE
Bore*stroke  (mm)   86  *72
Displacement  (L) 0.418
Power  (KW) 5.7/3000   6.3/3600
Fuel  consumption  rate  (g.   KW/h) 275.1 281.5
Compression  ratio 19
Lubrication  system Spring
Engine  starting  system Electric  starter
Diesel  oil  model   Summer:   0#,   winter:   -10#
Lube  oil  model SAE10W-30  (above  CD  grade)
Lube  oil  capacity  (L) 1.65
Battery  capacity(V-AH) 12V-36Ah
Net  weight  (KG) 170
Dimension(L*W*H) 970× 560× 770
Prod Model: KDE6500T3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type: AC Three Phase
Cooling Method: Air Cooled
Stroke: Four Stroke
Installation Method: Portable
Type: Self-Starting Diesel Generator
Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:

Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),

Air-cooled diesel generator set(2KW--8.5KW)

Air-cooled diesel engine farming tillers(4HP, 5HP, 8HP)

Air-cooled diesel generator light tower(400W-10000W)

Air-cooled gasoline generator (650W-5000W)

Water-cooled Diesel Generator(10kw-100kw),

Water pump unit(2 '', 3 '', 4 '')

Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.

Electric welding set, construction machinery, and gardenging machinery, etc.

Kaiao lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 20000 square meters, we have more than 150 staff members, among which three are around 20 are professional technicians. Advanced production lines and inspection equipments allow high quality productions.

We insist on technical innovation promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality productsand services.

Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
