Generator Manufacturers and Factories

Home Generator Products Jichai Manufacturer 1000kw/1250kVA Diesel Generator

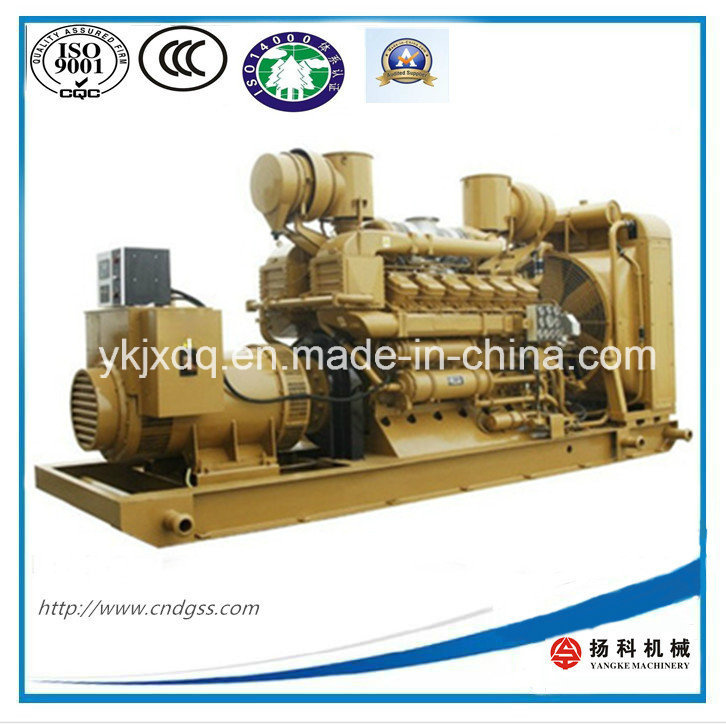

Jichai Manufacturer 1000kw/1250kVA Diesel Generator

Jichai Manufacturer 1000kw/1250kVA Diesel Generator
Price: US $ 50000-80000/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
Jichai G12V190ZL1
Widely used
High output and performance
1 year or 1000 running global guaran
>ENGINE:Ji Chai
>ALTERNATOR:Leroy somer, Stamford, Marathon or Chinese local brands(option)
>single bearing alternator IP23, insulation class H/H;
>Radiator 50 centigrade max, fans are driven by belt, with safety guard;
>Controller:  Deepsea, Woodward, Comap, Smartgen(option);
>Dry type air filter, fuel filter, oil filter, coolant filter;
>12/24V D.C.  to start the motor and charge alternator;
>Breaker:  MCCB, Acb;
>Starter battery (with lead acid) including Rack and Cables;
>Fuel connection hoses;
>Ripple flex exhaust pipe, exhaust siphon, flange, Industrial capacity exhaust silencer;
>Steel chassis and efficient shock absorber;
>Operation manuals and circuit diagram documents.



The main parameters of the engine

Brand

Jinan Jichai

Model

G12V190ZL1

Spare power

1100KW/1375KVA

Type

four strokes, waste gas turbine boost,direct spurting type

Cooling way

water cooling

With type

Inline type

Bore*Trip

190mm*215mm

Cylinder

12cylinders

Displacement

71.5L

Lubricating Capacity

200L

Speed adjustment way

electronic speed

Rotating speed

1500r/min

Starting way

starting with electricity

The main parameters of the generator

Brand

Shanghai qianghui

Model

TFW-1000-4

Type

brushless (AVR automatic voltage regulating)

The connecting way of the phase

three phases four lines

Insulation degree

H degree

TIF

<50

THF

<2%

The factor of rated power

≤±1%

Grading Protection

IP22

Unit parameters

Power

1000kw/1250KVA

Rated voltage

400V/230V

Rated current

1800A

 Rated frequency

50 HZ

The factor of rated power

0.8

The regulating rate of instantaneous voltage

≤-15%/ +20%



The regulating rate of steady voltage

≤±1%

The time of steady voltage

≤3sec

The waving rate of voltage

≤0.5%

Voltage waveform distortion degree

≤8%

The  regulating  rate of steady frequency

≤5%



The regulating rate of instantaneous frequency

≤-10%/+12%

The time of steady frequency

3sec

The waving rate of frequency

≤1.5%

The waste of fuel with full load

220g/kw.h

Size(mm)

6000*1950*3000

Weight(kg)

11000





Packaging & Delivery
Packaging Detail:generator standard exporting package
Delivery Detail:within 5-25working days after the deposit



Company Information

Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.

Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.


With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.

We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.



 Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.

FAQ:
(1)  Your company is factory or Trade Company?
       Answer: We are professional low oil consumption diesel generator sets manufacturing factory.
(2)  Your diesel generator power range?
      Answer: Now we mainly produce QS series 8-3000kva brushless alternators,
(3)  Which brand Electrical Generator you produce?
      Answer: Now we produce USA Cummins brand Electrical Generator, Sweden Volvo Generator, Korea Doosan diesel  generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
     Answer: We mainly export Electrical Generators to southeast Asia, central Asia, the Middle East, Africa and South America

Contact
Yangzhou YANGKE Machinery Electric Co.,Ltd
Contact person:Tina
Mobile:+8618952721120
Fax:0514-86822288
Tel:0514-82275368
Web:www.cndgss.com








Prod Model: QSJ-1000GF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency: 50Hz
Power: 1000kw/1250kVA
Rated Rpm: 1500
Cylinder No.: 12
Bore/Stroke: 190*215mm
Displacement: 71.5L
Lubricating Capacity: 200L
Fuel Consumption: 220L
Size(L*W*H Mm): 6000*1950*3000
Weight(Kg): 11000
Type: Basic Diesel Generator
Installation Method: Portable
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Single Phase
Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.

Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.

With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000kVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.

We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).

Our company has been an accredited manufacturer who obtained the authentication of National Inspection and Supervision Center of Gas engine and Generating Sets since 2000, and passed the CE Certificate, the quality system certification of ISO9001-2008 Environment and ISO14001-2004.

We can provide a variety of specifications automated, automatic cut over, soundproof and mobile on high quality. The low energy consumption power set satisfies the customer's all electric power demand. We also can satisfy the user with different voltage and different frequency request, as well as networking power supply system.

Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
