Packaging & Delivery
Packaging Details: | Plywood case |
| Delivery Detail: | 10 Working days after receiving the deposit |

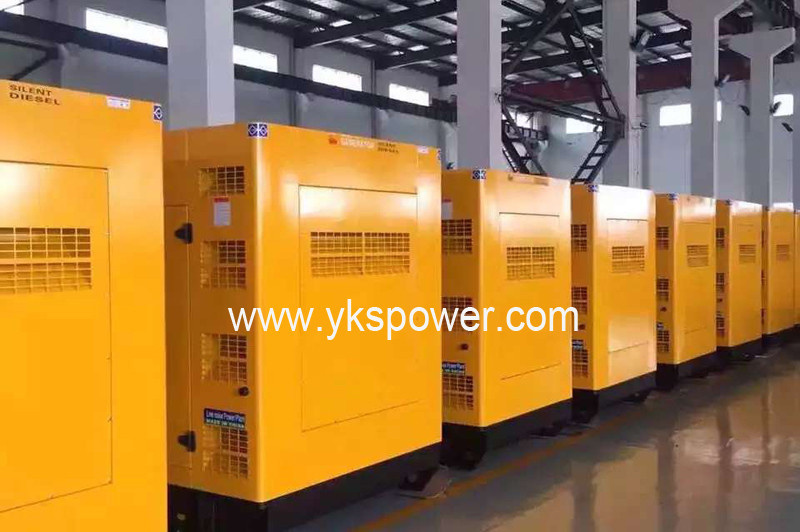

Youkai silent generators noise reduction system meet the ISO3744 environmental requirements strictly. The soundproof box can reduce noise to 65-75db, environment-friendly to city use.
Good ventilation and heat radiation system ensure the generator unit always works in suitable ambient temperature. Special noise reduction material, greatly inhibited the mechanical noise. Effective shock absorber ensure smooth working of the unit. The intelligent observation window, easy to operate and observe genset running. The emergency stop button, can stop the unit very quickly.
Youkai silent generator set has a more perfect design, more scientific performance.
1. Beautiful and compact surface,steel stitched structure, removable, can lift at the top of soundproof box;
2. High performance anti-corrosion and anti- rust coating material, durable for outdoor working.
3. Using advanced technology of acoustics, airflow knowledge , large horizontal muffler inside, lower noise, quiet operation.
4. Dispensed with traditional bottom air- intake design to prevent debris and dust, increase air intake and exhaust area;
5. Super big base fuel tank will can supply fuel for 12hr continous working time.
6. 72dBA at 7m noise for normal silent type; For super silent type, can reduce noise to 65dBA.
Specification | Dimension | Weight | Fuel capacity | General Configuration |
| Length* width *height | Kg | L |
|
| 10-30kw | 2200×940×1460 | 420 | 140 | for Yuchai, Weichai gensets |
| 20-50kw | 2400×1000×1560 | 500 | 160 | for Weichai, Yuchai and imported engine units |
| 75-120kw | 3000×1240×1760 | 820 | 340 | for Weichai, Yuchai and imported engine units |
| 150-200kw | 3300×1400×1950 | 950 | 420 | for Weichai, Yuchai and Cummins gensets |
| 200-300kw | 4000×1800×2150 | 1800 | 720 | for 6-cylinder Weichai, Yuchai and imported engine units |
| 250-300kw | 4300×2100×2300 | 2000 | 720 | for 12V Shangchai engine units |
| 400kw | 4700×2100×2450 | 2300 | 750 | for 12V Shangchai,Wudong, Paou, Cummins units |
| 500kw | 4900×2250×2600 | 2800 | 1000 | for 12V Weichai, Yuchai and imported engine units |
| 600-800kw | 6000×2600×2800 | 3800 | 1300 | for Cummins gensets |
| 600-800kw | 6000×2600×2800 | 3800 | 1300 | for Cummins container gensets |
| 600-1000kw | 9000×3000×3400 | 7000 | 2500 | for Chinese or imported engine container units |
Remarks:
1. Normal low noise test standard: under outdoor environment, 75dBA at 7m away from the soundproof box, 85dBA within 1m.
2. Dimensions for control panel and connection cable for alternator with control panel are not calculated in dimensions above;
3. Base fuel tank size is included for low noise type gensets.
4. The soundproof box size is according to actual dimension of generator set. |
Jiangsu YouKai Power Equipment Co., Ltd. is located in Jiangdu hightech development zone, Yangzhou, Jiangsu, China. Our factory provide quality diesel generator sets from 2kw to 2500kw with open type, super silent type, container power station and mobile power station. Power generating system, automatic start system, ATS system, intelligent parallel, remote monitoring and high voltage outputing system, which has several national patents.
YouKai power has obtained authorization certificate of CUMMTNS, Volvo Engine and builts good relationship with MTU, SCANIA, DOOSAN. China Yuchai, Weichai, Shangchai and JiChai engine generator sets are our conventional products. They are equipped with famous alternator brand Stamford, Marathon, Leroysomer, Engga, which guarantees longer working time and stronger power ouput. Besides, YouKai power pay more attention to produce environment friendly products. All the products have passed EPA, SGS, CE, ISO revelant certificates.
We promise: Professional purchase guide; 100% qualified product;
Safe delivery to customers; Wide aftersale service; Long term supply of spare parts.
After decade's effort, YouKai power has 20 local agencies in China, each distributor has perfect technical support and after-sale guarantee. Products have been exported to Southeast Asia, Middle East, Africa, Oceania, South America, Europe and other regions. We are looking forward to a long term cooperation with you. And it will be our honor if you can be Youkai's overseas agent!
