Home Generator Products Jiangsu Youkai 7kw Small Air-Cooled Diesel Generator

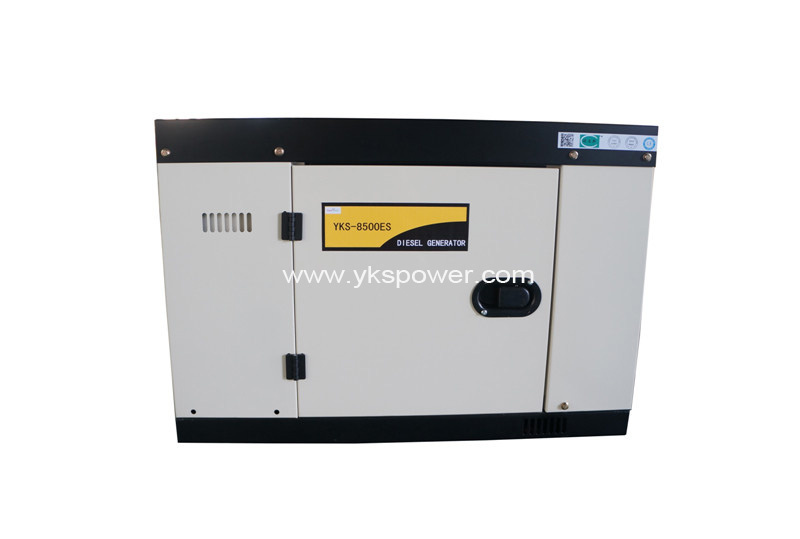

Jiangsu Youkai 7kw Small Air-Cooled Diesel Generator

Jiangsu Youkai 7kw Small Air-Cooled Diesel Generator
Price: US $ 580-1051set
Trade Terms: FOB,CIF
Min Order: 5set
Pay Type: T/T

Packaging & Delivery

Packaging Details:
Plywood case
Delivery Detail:10 Working days after receiving the deposit

Specifications
1.Air-cooled Yuchai generator
2.silent  type generator
3.ce certificate
4.Yuchai OEM factory



Model
YKS-8500ES
GENSET                             Frequency (HZ)                               50Hz  60Hz
Max.output (KW)                          77.5
Rated output(KW)                           6.57
Rated AC Voltage(V)                          120,220,230,120/240,220/380
Power Factor                                         1.0(for three phase :cosØ=0.8)
DC output (V)                             12V/8.3A
Phase  Single Phase /
Alternator Type              Self-excited,2-pole, 100% copper wire alternator                                                                  ,,
Starting System                             electric start
Noise Level (dBA/7m) 7                 ≤72
Fuel Tank Capacity (L)  16
Continuous Running Time (hr)                                             10
ENGINE                         Engine Model 192FE
Engine Type  single-cylinder, vertical,4-stroke air-cooled diesel engine                                                    ,,,
Bore×Stroke ×92*75
Fuel Consumption rate(g/kw·h) ≤280
Fuel                                    0# or -10#  light diesel oil   0#-10#
Combustion System Direct Injection
Lube Oil Volume (L) 1.65
Oil type CF Grade(CF ) or SAE:                                                                                                      (Winter):  10W-30,15W-40; (Summer):  20W-50
STANDARD FEATURES       Voltmeter Have
AC Output Socket 2
AC Circuit Breaker Have
Oil warning Light Have
Oil Alert                                Have
Wheel Have
OPTIONAL FEATURES     DC circuit breaker OPTIONAL
Hour meter OPTIONAL
Three phase voltage OPTIONAL
Current meter OPTIONAL
ATS OPTIONAL
Remote control OPTIONAL
DIMENSIONS   Dimention(LxWxH)(mm) 980*560*790(0.43CBM)
Net Weight / Gross Weight(kg)  /165/175
20FT loading qty(pcs)  2060
40FT loading qty(pcs)  40144

Prod Model: YKS-8500ES
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Self-Starting Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Jiangsu YouKai Power Equipment Co., Ltd. is located in Jiangdu hightech development zone, Yangzhou, Jiangsu, China. Our factory provide quality diesel generator sets from 2kw to 2500kw with open type, super silent type, container power station and mobile power station. Power generating system, automatic start system, ATS system, intelligent parallel, remote monitoring and high voltage outputing system, which has several national patents.

YouKai power has obtained authorization certificate of CUMMTNS, Volvo Engine and builts good relationship with MTU, SCANIA, DOOSAN. China Yuchai, Weichai, Shangchai and JiChai engine generator sets are our conventional products. They are equipped with famous alternator brand Stamford, Marathon, Leroysomer, Engga, which guarantees longer working time and stronger power ouput. Besides, YouKai power pay more attention to produce environment friendly products. All the products have passed EPA, SGS, CE, ISO revelant certificates.

We promise: Professional purchase guide; 100% qualified product;

Safe delivery to customers; Wide aftersale service; Long term supply of spare parts.

After decade's effort, YouKai power has 20 local agencies in China, each distributor has perfect technical support and after-sale guarantee. Products have been exported to Southeast Asia, Middle East, Africa, Oceania, South America, Europe and other regions. We are looking forward to a long term cooperation with you. And it will be our honor if you can be Youkai's overseas agent!
