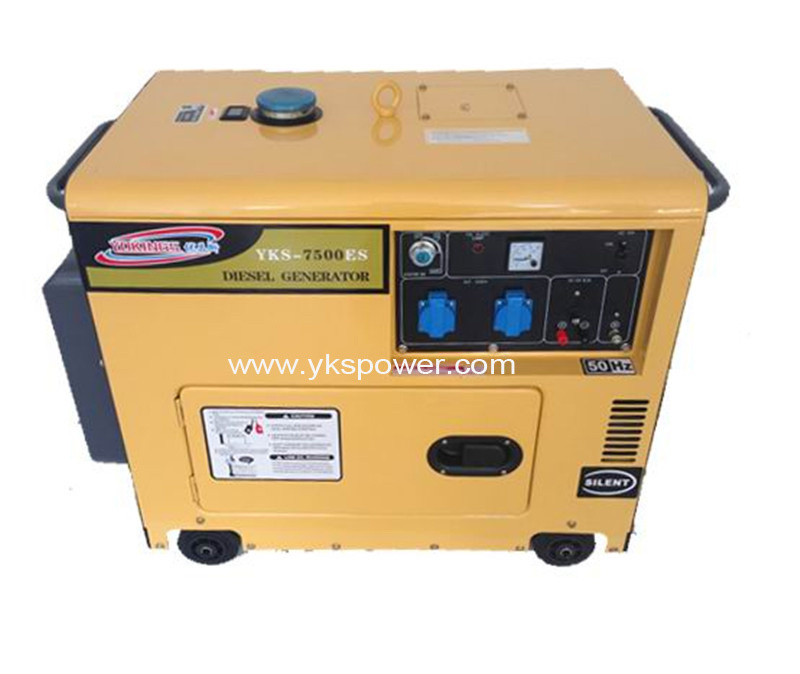

Jiangsu Youkai 5.5kw Small Air-Cooled Diesel Generator
Price: |
US $ 533-580set |
Trade Terms: |
FOB,CIF |
Min Order: |
5set |
Pay Type: |
T/T |
Packaging & Delivery
Packaging Details: | Plywood case |
Delivery Detail: | 10 Working days after receiving the deposit |
Specifications
1.Air-cooled Yuchai generator
2.Silent type generator
3.ce certificate
4.Yuchai OEM factory
Generator | Model | YKS-3500ES | YKS-6500ES | YKS-7500ES | YKS-12000ES | YKS-15000ES |
Frequency(Hz) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
Max. output power(KW) | 3 | 3.3 | 5 | 5.5 | 5.5 | 6 | 9 | 9.5 | 10 | 11 |
Rated output power(KW) | 2.8 | 3 | 4.5 | 5 | 5 | 5.5 | 8 | 9 | 9 | 10 |
Rated speed(rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
Rated AC voltage(V) | 120,220,230,120/240,220/380 |
Power factor | 1 |
DC output(V) | 12V/8.3A |
Phase NO. | 3 Single or 3 phase |
Alternator type | ,,100% Self-excited,2-pole,100% Copper wire winding alternator |
Starting system | Electric starting |
7mNoise level(db) in 7m | 68-72 | 75-80 |
Fuel tank capacity(L) | 16 | 30 |
Continuous working hour (hr) | 13 | 11.8 | 8.5 | 7.8 | 8.5 | 7.8 | 9.4 | 8.4 | 9.4 | 8.4 |
Engine | Engine Model | 178FE | 186FAE | 188FAE | R2V86 | R2V88 |
Engine type | ,,4,, Single cylinder,vertical,4 strokes, air-cooled diesel engine | ,,4,, Tow-cylinder,vertical, 4 strokes, air-cooled diesel engine |
*Bore*stroke(mm) | 78*62 | 86*72 | 86*72 | 86*72 | 88*72 |
Fuel type | 0,10 Summer:0#, Winter:-10# |
Lubrication oil volumn(L) | 1.65 | 1.65 | 1.65 | 1.7 | 1.7 |
(g/kw?h) Fuel Consumption rate | ≤295 | ≤280 | ≤280 | ≤268 | ≤268 |
Combustion system | Direct injection |
Lube oil type | SAE10W-30 (CD)(above CD grade) |
Standard accessory | voltmeter | yes |
AC circuit breaker | yes |
Oil pressure warning light | yes |
Oil alert | yes |
AC output socket | 2 |
Accessory for optional | DC circuit breaker | optional |
Hour timer | optional |
Wheel and handle | optional |
Three phase voltage | optional |
Current meter | optional |
ATS | optional |
Remote control | optional |
Welding function | optional | No |
Product size(mm) | 910*540*675 | 940*540*700 | 940*540*700 | 1200*730*810 | 1200*730*810 |
Loading qty(set):1*20GP | 72 | 72 | 72 | 26 | 26 |
Net weight(kg) | 120 | 145 | 148 | 350 | 352 |
Prod Model: |
YKS-7500ES |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Self-Starting Diesel Generator |
Installation Method: |
Fixed |
Stroke: |
Four Stroke |
Cooling Method: |
Air Cooled |
Output Type: |
AC Single Phase |
Jiangsu YouKai Power Equipment Co., Ltd. is located in Jiangdu hightech development zone, Yangzhou, Jiangsu, China. Our factory provide quality diesel generator sets from 2kw to 2500kw with open type, super silent type, container power station and mobile power station. Power generating system, automatic start system, ATS system, intelligent parallel, remote monitoring and high voltage outputing system, which has several national patents.
YouKai power has obtained authorization certificate of CUMMTNS, Volvo Engine and builts good relationship with MTU, SCANIA, DOOSAN. China Yuchai, Weichai, Shangchai and JiChai engine generator sets are our conventional products. They are equipped with famous alternator brand Stamford, Marathon, Leroysomer, Engga, which guarantees longer working time and stronger power ouput. Besides, YouKai power pay more attention to produce environment friendly products. All the products have passed EPA, SGS, CE, ISO revelant certificates.
We promise: Professional purchase guide; 100% qualified product;
Safe delivery to customers; Wide aftersale service; Long term supply of spare parts.
After decade's effort, YouKai power has 20 local agencies in China, each distributor has perfect technical support and after-sale guarantee. Products have been exported to Southeast Asia, Middle East, Africa, Oceania, South America, Europe and other regions. We are looking forward to a long term cooperation with you. And it will be our honor if you can be Youkai's overseas agent!
