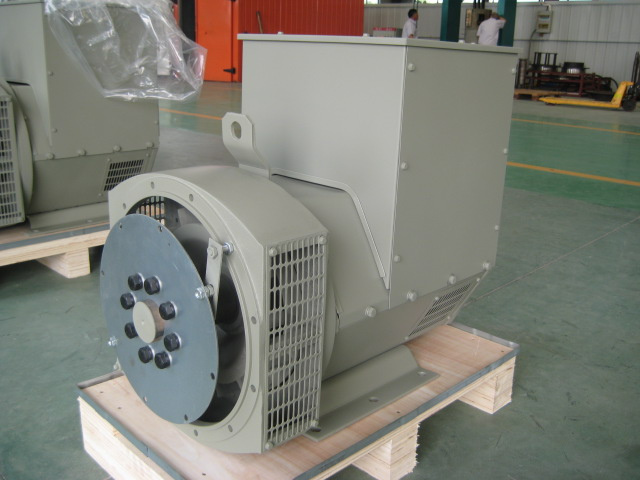

Jdg224 Series Stamford Brushless Alternator

Basic Info.
Model NO.: JDG224 Series
Brushless: Single or Double Bearing
Export Markets: Global
Additional Info.
Trademark: Godlike
Packing: Plywood Case
Standard: IECBS 5000, VDE 0530, IEC 34, NEMA MG1-22, CSA C2
Origin: China
Production Capacity: 8000sets Per Year
Product Description

Specifications
1) Brushless Synchronous A. C. Alternator,
2) Stamford& Leroy somer Type of Electric Generator,
3) Three Phase, IP23, Class H, (single phase for option)
4) Power range: 42.5kVA-92kVA
5)Rated voltage 400V, 110-690V option

Features
1) A. V. R. (Automatic Voltage Regulator)controlled
2) 12 wire reconnectable winding;
3) 2/3 pitch windings avoid excessive neutral currents;
4) Permanent Magnet Generator(PMG) is available as an option;
5) Reliable supplier with Quality Materials, and strict Quality Controller (by QC Dept. )
6) Easily coupled with power networks or other genetator sets,
7) Balance rotor with single or two sealed ball bearings available,
8) Convenient installation and easy maintenance, easy access to terminal, rotating rectifier and coupling bolts,
9) Wide range of flange adaptor and single bearing coupling disc,


Standards&Certifications
1) GODLIKE generators are comformity to International standards of IECBS 5000, VDE 0530, IEC 34, NEMA MG1-22, CSA C22.2-100 and ASB59.
2) GODLIKE generators are Certified of CCC, TUV, EPA, SGS

Solutions
Easily coupled with Industrial&Marine, Diesel&Gasoline engines, world first-class of Cummins, Lovol, Volvo Penta, MTU, Deutz, MAN, Caterpillar, Yanmar, Kubota, Lister Petter, Doosan, etc,


Warranty:
2 years, Godlike Power DHL new parts for replacement within 3 days upon customer's complaint.

Model	50hz / 1500rpm/3 phase				60 hz/ 1800rpm/ 3 phase
	190  ~  454V				110 ~ 240V/230 ~ 690V
	KVA		KW		KVA		KW
JDG 224C	42.5		34		55		44
JDG 224D	50		40		65		52
JDG 224ES	56.25		45		70		56
JDG 224E	60		48		75		60
JDG 224F	72.5		58		93		74.4
JDG 224GS	80		64		100		80
JDG 224G	85		68		103		82.4
JDG 224H	94		75		115		92
