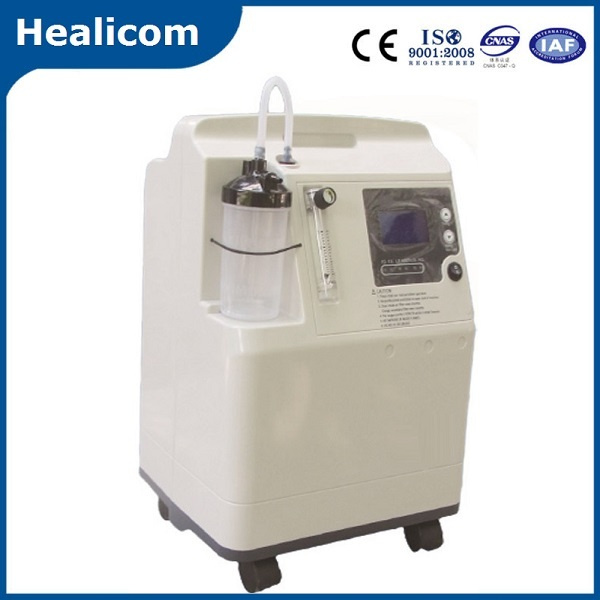

Our JAY-3 0-3L/min health care oxygen concentrator has light weight and is easy to use. After being connected to power, this oxygen equipment can produce oxygen quickly. This is a safe and trustworthy product with service life longer than 5 years.
Features
1. Adopting PSA physical method to produce oxygen, this oxygen gas generator is safe and economical.
2. The oxygen flow rate can be adjusted from 0L/min to 3L/min.
3. Our JAY-3 oxygen concentrator is equipped with a PLC display which can show the operating pressure, operating temperature, present working time, accumulated working time, preset time, etc.
4. Designed with timing function, the oxygen producing machine will stop working automatically when it reaches to the preset time.
5. Imported molecular sieve and humidification bottle (pressure relief valve value: 6spi) have been used in our products.
6. The OCSI (oxygen concentration status indicator) guarantees stable oxygen concentration and allows the user to use our oxygen generating equipment without any worries.
7. Our oxygen concentrator has alarm system for temperature, high/low pressure and power failure. The alarm system ensures safe machine operation.
Application
Our economical oxygen concentrator is suitable for the home rehabilitation oxygen therapy for respiratory system diseases, cardio vascular and cerebral vascular system diseases and altitude sickness.
JAY-5Q Series oxygen concentrator model adopt pressure swing adsorption principle. which can separate oxygen. nitrogen and other gas from the air. at constant temperature, as soon as power is connected, the oxygen that meets medical use standards can be separated from air constantly. Oxygen is generated by pure physical method. The generator can supply 1-2 patients simultaneously. With steady oxygen flowing out, safe and reliable, low cost, adjustable flow. The key parts of the generator adopt anti-tiring and anti-aging design, and the planned life of the whole generator reaches up to 20,000 hours. There is no influence on indoor oxygen percent during the generator operating.
Application
Comparing with other model products, this JAY-5/5Q 0-5L/Min oxygen concentrator has wider application scope. It can be used for the following applications.
1. Medical treatment.
Our product can be used for adjuvant treatment for respiratory system diseases, cardio vascular and cerebral vascular system diseases, chronic obstructive pulmonary disease, carbon monoxide poisoning and other hypoxia diseases. It is suitable for clinics, community hospitals, township health clinics, etc.
2. Home health care.
With our oxygen concentrator you can enjoy oxygen therapy at home without going to the clinic or hospital on purpose.
3. Veterinary use.
This product is also suitable for small-sized animals to inhale oxygen.
| Model | JAY-3 | JAY-5Q |
| Flow rate | 0-3L/min | 0-5L/min |
| Purity | 93±3% |
| Outlet Pressure (Mpa) | 0.04-0.07 |
| Sound Level | ≤38db | ≤40db |
| Power | AC220V±10%, 50/60±1Hz; AC110V±10%, 50/60±1Hz |
| Power Consumption | ≤280W | ≤350W |
| LCD display | Switch time, operating pressure, present working time, accumulating time and presetting timing from 10mins to 40hours |
| Alarm | Power failure alarm, High & Low pressure alarm |
| Net Weight | 14Kgs | 16Kgs |
| Size (mm) | 320×360×600mm |
| OPTIONAL |
*Nebulizer
*Low purity alarm: when oxygen purity is above 82%, it will give green light; when the purity is blow 82%( 82% not included), it will give red light
*Maintenance alarm: alarm for maintenance after 3000 hours operation
*Alarm for high temperature inside systems above 50°C
*Pulse oximeter: fingertip pulse oximeter is available for monitoring patient oxygen saturation on site.
*Small LCD display: accumulating time; present working time presetting time. |
FAQ
1.What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
2.What about quality assurance?
We offer one and half year warrantee period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. But if the machine is damaged due to rough handling during the transportation, we are free of any responsibility, but we will still provide help to the buyer issue claims against the shipping company or insurance company, thus all the spare parts or expenses should be borne by buyer.
3.What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
4.Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products l spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper .
We, Healicom is one of the leading professional suppliers in medical field in China. Our product range widely covers Surgical equipment, X-ray machine, Lab device, Patient Monitor, ECG, Ultrasound Scanner, Dental Equipment, Hospital Furniture, etc.
Established in 2002, as one of Chinese professional medical equipment companies, we specialize in manufacturing and marketing various hospital equipments (apparatus), medical disposable items and household medical appliances.
Our high efficient groups of professional technical and sales staff are able to provide you complete range of service at any time. Being approved by CE, ISO certificate, etc., our products are enjoying popularity in different countries and districts of Europe, America and Middle East, etc. With large exporting volume per year.
Products are manufactured either by ourselves or by cooperating with some reputed companies in China, so our prices are very competitive in international market. Meanwhile, excellent services and on-time delivery help us win great popularity among customers.
Please do not hesitate to contact us if you are interested in any of our products. We are looking forward to establishing business relationships with companies all over the world.
Service advantage
We own a group of very professional technical and sales staff with the high efficiency, who are able to provide you complete range of service at any time.
1) If you have any questions, We can reply it within 1 day, and solve your problems within 3 work days.
2) We are well-informed the local market demand, so I can recommend the suitable product.
3) If the appurtenance we post you has any problem in first one year, we can change it for free ( including shipping cost), and also we can provide the appurtenance for charge within next ten years.
The capacity to support your volume needs
Being approved with CE, ISO, Certificate, etc., With large exporting volume each year. All products are manufactured ourselves or cooperating produced with some reputed companies in China, so our prices are very competitive in international market.
Trade specialists
Our trade team has an average of ten years of experience in dealing with customers from the Europe, America and Middle East, etc. That means you can be sure we'll understand the needs of your market.
Deliver fast
We deliver your orders fast to:
1) Allow a quick reaction to market changes and promptly respond to the customers'demands.
2) Reduce lead time and planning time
3) Within 15-30 days after received your payments for goods, you can receive your products.
