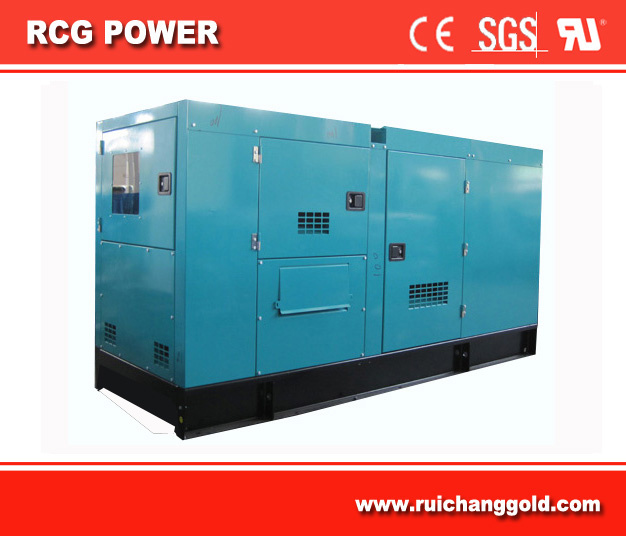

Product name: Soundproof Diesel Generator
The noise reduction standard is in accordance with GB/T2820-97; All day round good operation feature; Good ventilation system and heat raditation production measure. Ensure the unit is working under appropriate ambient temperature.
| MODEL | R-YM60 |
| PRIME POWER (KVA/KW) | 60/48 |
| STANDBY POWER(KVA/KW) | 66/52.8 |
| Rated voltage(V) | 400/230 |
| Rated speed(rpm) | 1500 |
| Rated frequency(Hz) | 50 |
| Power factor | 0.8 |
| Ambient temperature(ºC) | 40 |
| Altitude(m) | 1000 |
| Connection type | 3 phase 4 wires |
| ENGINE MANUFACTURER | JAPAN YANMAR |
| Model | 4TNV106T-GGE |
| Rated Power(kW) | 56 |
| No. of cylinders & configuration | In-Line 4 cylinders |
| Method of operation | 4-stroke |
| Speed regulation | Electric governor |
| Starting system | DC 12V Electronic start |
| Cooling method | Closed-circuit cooling system |
| Total displacement(L) | 4.412 |
| Compression ratio | 18.0:1 |
| Bore×Stroke(mm) | 106*125 |
| 100% Load fuel consumption(L/h) | ≤11 |
| ALTERNATOR MANUFACTURER | STAMFORD |
| Number of Phase | 3 |
| Connection Type | 3Phase and 4Wires |
| Number of Bearing | 1 |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Terminal | 12 |
| Winding/ Pitch | 100% Copper 2/3 Pitch |
| Cooling Fan | Cast alloy aluminum |
| Exciter Type | Brushless, Self-Exciting |
| Insulation Class, Temperature Rise | H/H |
| Telephone Influence Factor( TIF) | TIF <50 / THF<2% |
| Total Harmonic TGH/THC | <1.5% at no load / <5% at load |
| Voltage Regulation, Steady State | ≤±1% |
| Sustained Short-Circuit Current | 300%(3 in):10s |
| CONTROL SYSTEM | UK DEEP SEA SERIES |
