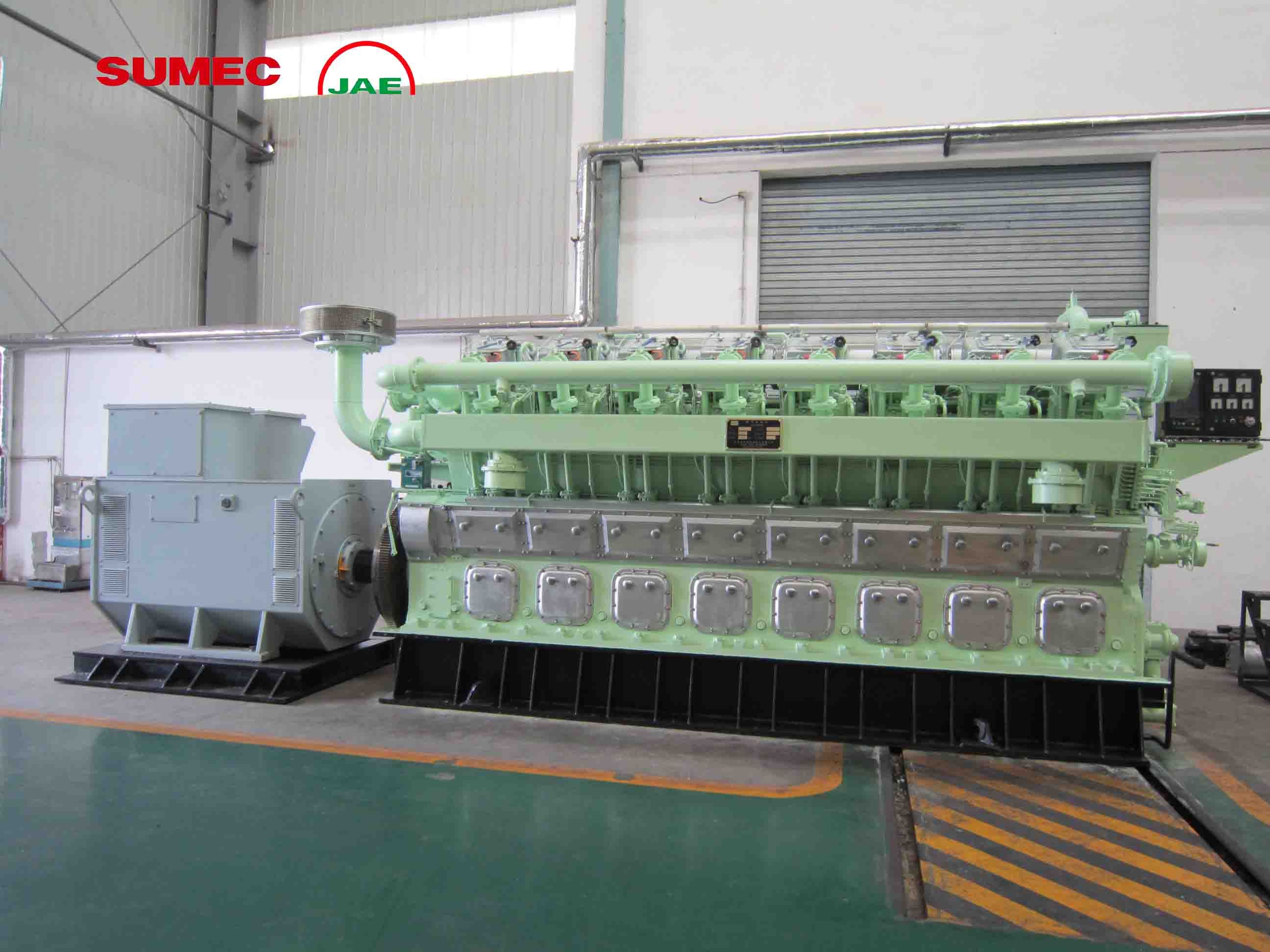

JAE Heavy Duty Medium Speed (500-600rpm) Gas Engines & Power Generator Set
JAE is present in the internal combustion engines business since 1943. The important R&D effort together with the cumulative experience collected since then, makes JAE a leading technology partner for the supply of both liquid and gas internal combustion engines for a wide range of applications.
Today, JAE is the largest Chinese manufacturer of heavy duty medium speed (500-600rpm) gas-fueled reciprocating engines, packaged generator sets, and cogeneration units for power generation. JAE has more than 1000 employees and the factory covers more than 500, 000sqm.
JAE's product portfolio comprises gas engines and plants in the output range from 300 kWe to 2, 000 kWe, and run on either natural gas or a variety of other gases (e. G., biogas, landfill gas, coal mine gas, sewage gas, combustible industrial waste gases and etc).
A broad range of commercial, industrial, and municipal customers use JAE products for on-site generation of power, heat, and cooling. Additionally a full range of services is offered. High advanced combustion systems, engine controls, and monitoring enable JAE power generation plants to meet stringent emission standards while offering high levels of efficiency, durability, and reliability.
Main Specification for JAE Gas Gensets |
Model of Generator |
Rated Speed (r/min) |
Rated Power (kW/kVA) |
Rated Voltage (V) |
Rated Frequency (Hz) |
Overall Dimension LxBxH (mm) |
Weight (Kg) |
|
Bore:300mm ; Stroke: 380mm; Cylinder: 8 ; In-line Engine |
300GF-L |
500 |
300/375 |
400 |
50 |
6500 x 1830 x3100 |
22000 |
400GF-L |
500 |
400/500 |
400 |
50 |
6500 x 1830 x3100 |
23000 |
500GF-L |
600 |
500/625 |
400 |
50 |
6500 x 1830 x 3100 |
23000 |
500GF-H |
500 |
500/625 |
400 |
50 |
6500 x 1830 x 3100 |
24000 |
600GF-H |
600 |
600/750 |
400 |
50 |
6500 x 1830 x 3100 |
24000 |
750GF-H |
600 |
750/937 |
400 |
50 |
6500 x 1830 x 3100 |
25000 |
1000GF-H |
600 |
1000/1250 |
400 |
50 |
6500 x 1830 x 3300 |
27000 |
|
Bore:300mm; Stroke:380mm; Cylinder:16; V-type Engine |
800GF-L |
500 |
800/1000 |
400 |
50 |
8287 x 2421 x 2782 |
42000 |
1000GF-L |
600 |
1000/1250 |
400 |
50 |
8287 x 2421 x 2782 |
44000 |
1200GF-H |
600 |
1200/1500 |
400 |
50 |
8287 x 2421 x 2782 |
45000 |
1500GF-H |
600 |
1500/1800 |
400 |
50 |
8287 x 2421 x 2782 |
48000 |
2000GF-H |
600 |
2000/2500 |
400 |
50 |
8287 x 2421 x 3300 |
50000 |
Notes:
1. GF-L is the gas generator set developed only for the biomass gas, coal gasifier gas, coke gas,wood gas, syngas, producer gas,coal oven gas, coke gas, coking gas, pyrolysis gas, converter gas, LD converter gas, blast furance gas which is low heat value or high H2, CO composition gas.
2. GF-H is the gas generator set developed only for natural gas, biogas, landfill gas, oil filed gas, sweage gas,digester gas,lpg, propane, CNG, coal mine gas, mine gas, coal mine methane, coal bed methane, coal bed gas, shale gas, oil shale gas,LNG, flare gas which is medium heat value to high heat value gas.
3. JAE also offers 60HZ and high voltage(6300V and 10500V) generator set. For more information please send email to us.
4. JAE also can offer c omplete power plant solution includes power plant design,EPC contracting,erection and installation, commissioning and start up, operation training and maintenance.
5. JAE also can supply CHP and Trigeneration system for JAE gas gensets.
Supplier of Main Parts of JAE gas generator set |
Item |
Part Name |
Supplier |
Notes |
1 |
Cylinder Block |
JAE (Jiangsu Antai New Energy Technology Co., Ltd.) |
|
2 |
Crankshaft |
JAE (Jiangsu Antai New Energy Technology Co., Ltd.) |
|
3 |
Camshaft |
JAE (Jiangsu Antai New Energy Technology Co., Ltd.) |
|
4 |
Cylinder Head |
JAE (Jiangsu Antai New Energy Technology Co., Ltd.) |
|
5 |
Piston and Connection Rod |
JAE (Jiangsu Antai New Energy Technology Co., Ltd.) |
|
6 |
Cylinder Liner |
JAE (Jiangsu Antai New Energy Technology Co., Ltd.) |
|
7 |
Alternator |
Siemens Technology, Made In China. |
1 |
8 |
Ignition System |
|
Ignition Controller |
Altronic, USA |
|
High Voltage Coil |
Altronic, USA |
|
Sparking Plug |
Altronic, USA |
|
High Voltage Wire |
Altronic, USA |
|
Low Voltage Wire |
Altronic, USA |
|
9 |
Governing System |
|
Electric Governor |
Heinzmann, Germany |
|
Digital Actuator |
Heinzmann, Germany |
|
10 |
Genset Controller |
ComAp, Cezch (Option:DIEF, Denmark) |
|
Jiangsu Antai New Energy Technology Co., Ltd. (JAE) is located in the Xingang Park Zone in Jingjiang City near beautiful Yangtze River. It covers an area of 280, 000 square meters (phase 1), has more than 800 employees, of which more than 140 senior technical personnel, more than 120 senior technicians. It has gas combustion engine research and development department, gasification system research and development department, engine and gasification system assembly workshop and testing workshop, and a dozen other functions of the departments and workshops.
JAE is the most professional company which supply middle speed gas generator set, middle speed diesel/HFO generator set. It is co-founded by SUMEC GROUP which is a state owned company which has more than 4.5 billion USD export turnover, and Jiangsu Antai Power Machinery Co., Ltd which has 60 years engine design and manufacturing history. JAE factory is the largest production base of middle-speed gas generator set and gasification system. It is the largest enterprise in China that offer the power system design and development, production, project contracting, installation and commissioning, project delivery, staff training, power plant maintenance.
