The oxy-hydrogen generator for boiler
Product Description
What is oxy-hydrogen generator:
Oxy-hydrogen gas is Energy Saving and no pollution. Oxy-hydrogen gas Generator consumes water and electricity, electrolyze water into H2 and O2, we can use H2 and O2 as source of flame replacing acetylene or natural gas or other fuel. It can be used for boiler, welding, cutting, polishing, brazing, glass processing and jewelry processing. Also can burst with other fuel together for heating.
Why we used oxy-hydrogen generator:
1. Energy Saving more than 30% compared with traditional acetylene flame.
2. Without any pollution.
3. The cost of electricity and water reduces more than 40% compared with acetylene flame.
4. Unique design of flashback arrestor, electrolysis trough and circulatory cooling system make the machine safe and reliable, stable performance.
5. Excellent welding and cutting quality.
6. All controls can be done just by one knob.
7. Except for flame welding and cutting, other welding and cutting functions can be added according to customers require, this function en-strong the machines adaptability.
8. Portable, flexible and movable.
Multi-functions application:
1. Cutting metals by oxygen flame
2. Gas welding and flame spray painting
3. Thermal processing of jewelry, especially good for platinum as oxy-hydrogen flame contains no carbon
4. Fine cutting, fusion, repair and local thermal processing of delicate metal parts.
5. Direct fusion of fine copper wire and enameled wire
6. Removals of carbon deposit in the combustion chamber of internal combustion engine such as cars
7. LED chip integration
8. The thermal processing of glass and quartz glass
9. Surface polishing of organic glass
10. Computer wire peeling
11. Burn with other fuels together for boilers, cooking stoves, melting metals. \
Features of kater Energy Oxy-hydrogen Generators compared with other companies:
1. Electrolytic Cell adopts precise mould to whole formed, prevent from explosion and leakage and it is insulation shell, won't charged.
2. Dynamic self-circulation electrolytic process, built-in purifier, clean the electrolysis cell automatically.
3. Centrifugal water oxy-hydrogen separation device, achieve water and gas separation 100%, always keep blue flame.
4. Polar plate adopts special activity alloy material surface treatment no leakage.
5. All internal pipeline is seamless stainless steel tube, no any rubber hoses, ensures the safety and reliability.
6. Flashback arrestor with multilayer and multigrade, detect the water level automatically, ensure safety and reliability.
7. Complement water automatically when water shortage appeared without machine shutdown.
8. Digital Human-Computer Interaction interface, be convenient to operate.
9. Precise flame gun and kinds of precise nozzle sold free with machine to meet different process demand.
Technical Data Sheet of Kingkar oxy-hydrogen generator in boiler combustion:
| Model | Kingkar-3000 | Kingkar-5000 | Kingkar-7000 | Kingkar-10000 |
| Voltage(V) | 380 ±10%,50/60Hz,three phase |
| Rated capacity(KVA) | 9 | 15 | 22 | 31 |
| Working pressure(Mpa) | ≤0.2 |
| Relative humidity(%) | ≤90 |
| Rated gas output(L/H) | 3000±10% | 5000±10% | 7000±10% | 10000±10% |
| Water consumption(L/H) | 1.6 | 2.7 | 3.8 | 5.8 |
| Cooling way | Air cooling |
| Insulation class | F |
| power protection grade | IP2S |
| Flame temperature(T) | 800-3200 adjustable |
| Working medium | Filtered water or deionized water or soft water |
| Working | continuous |
| environment temperature(T) | 0-40 |
| Dimension(L×W×H)mm | 1020*770*1270 | 1250*830*1720 | 1300*930*1820 | 1500*930*1940 |
| Weight(KG) | 293 | 567 | 653 | 894 |
Thank you for visiting. Any questions, please feel free to contact us. I am Mr.Huang Renhua here.
KingKar provides green energy solutions. We are specialized in Oxy-Hydrogen Generator, which changes soft water into a clean burning fuel that can be used to replace traditional gas fuels. We offer this safe, clean and pollution-free new source of green energy for mankind. Our development concept is based on creating a cleaner living environment around the world and promoting the use of sustainable energy sources.

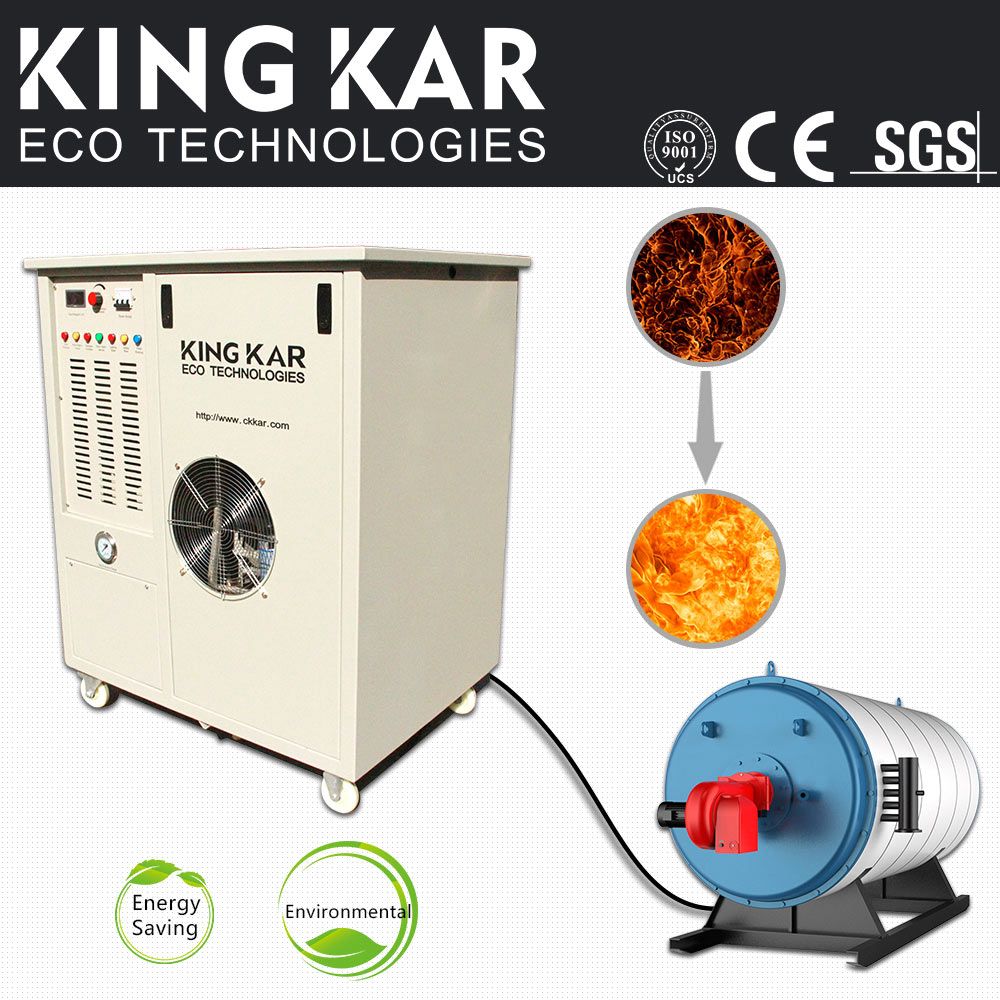

KingKar Oxy-hydrogen generator for boiler only consumes water
And electricity to create oxy-hydrogen gas which feeds into to the combustion chamber for complete burning. It increases the combustion efficiency of the existing fuel etc. There is no pollution, no harmful gases or other chemical additives.
Our machine content: Oxy-hydrogen generator for boiler, Oxy-hydrogen used in industrial furnace, Oxy-hydrogen used in medical care, industrial And household wastes incinerator, Oxy-hydrogen used in generator, Oxy-hydrogen used in clean coal combustion technology, Oxy-hydrogen used in pharmaceutical industry and etc
