We are a professional supplier of PV inverter, with years of experience in research, develpment and selling, we can supply you products with good quality and reasonable price.
With high efficient isolation transformer
Synergetic controlled by dual CPU (DSP+CPLD)
Suitable temperature range from -25° C to +55° C
Compact design, easy to install
Controlled byTI Digital DSP
High efficiency, slow temperature rise, low noise, and long service life
Multiple communication ports and LCD display in multiple languages
IGBT modular design, easy to install, operate and maintain
Programmable protection and operational parameters
Both MPPT and CVT modes
Advanced MPPT algorithm, efficiency > 99%.
|
Input (DC) |

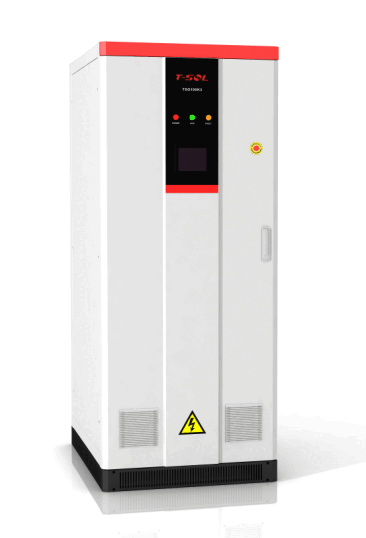

TSG100K3 Indoor |
|
Max. DC power (@cosφ =1) |
110KW |
|
Max. input voltage |
1000V |
|
MPP voltage range (@ 25 ° C) |
450V~850V |
|
Rated input voltage |
700V |
|
Maximum input current |
238A |
|
Number of independent MPP inputs |
1 |
|
Number of DC inputs |
1 |
|
|
|
|
Output (AC) |
|
|
Rated power (@25º C) |
100KVA |
|
Rated AC voltage |
380 V |
|
|
|
|
Rated power frequency |
50 Hz |
|
Max. output current |
152 A |
|
Rated THD |
< 3% |
|
Power factor at rated power |
> 0.99 |
|
Connection phases |
3 |
|
|
|
|
Efficiency |
|
|
Max. efficiency / European efficiency |
96.2%/95.3% |
|
|
|
|
Protection |
|
|
Input side disconnection device |
yes |
|
Output side disconnection device |
yes |
|
Grid monitoring |
yes |
|
Ground fault monitoring |
opt. |
|
Insulation monitoring |
yes |
|
Galvanic isolation |
yes |
|
|
|
|
|
|
|
General Data |
|
|
Dimensions (W / H / D) |
850/2000/1000mm |
|
Weight |
925Kg |
|
Operating temperature range |
-25° C~+50° C |
|
Max. self-consumption (in operation) / self-consumption (at night) |
430W/ 35W |
|
External auxiliary supply voltage |
|
|
Cooling concept |
air cooling |
|
Degree of protection: electronics / connection area (as per IEC 60529) |
IP20 |
|
Application |
|
|
Maximum permissible value for relative humidity (non-condensing) |
0~95 % |
|
Maximum operating altitude above MSL |
2000m |
|
|
|
|
Features |
|
|
DC terminal / AC terminal |
|
|
Display |
LCD |
|
Communication protocols |
RS485 |
|
|
|
|
Certificates and approvals (more upon request) |
CGC |
|
Type designation |
Indoor |
Ten Sources Solar Electricity Limited (T-SOL) is a wholly-owned subsidiary of Ten Pao Group and engaged in photovoltaic solar business (Inverter Manufacturing +Solar System integrated + EPC project).
T-SOL' s products power range from 1kw to 500kw. It can efficiently convert solar energy from DC to AC with excellent quality. In future, T-SOL continues to innovate and improve the solar inverter technology according to the latest market trend.
We are looking for local agent in many countries, welcome to discuss more if you are interested...
