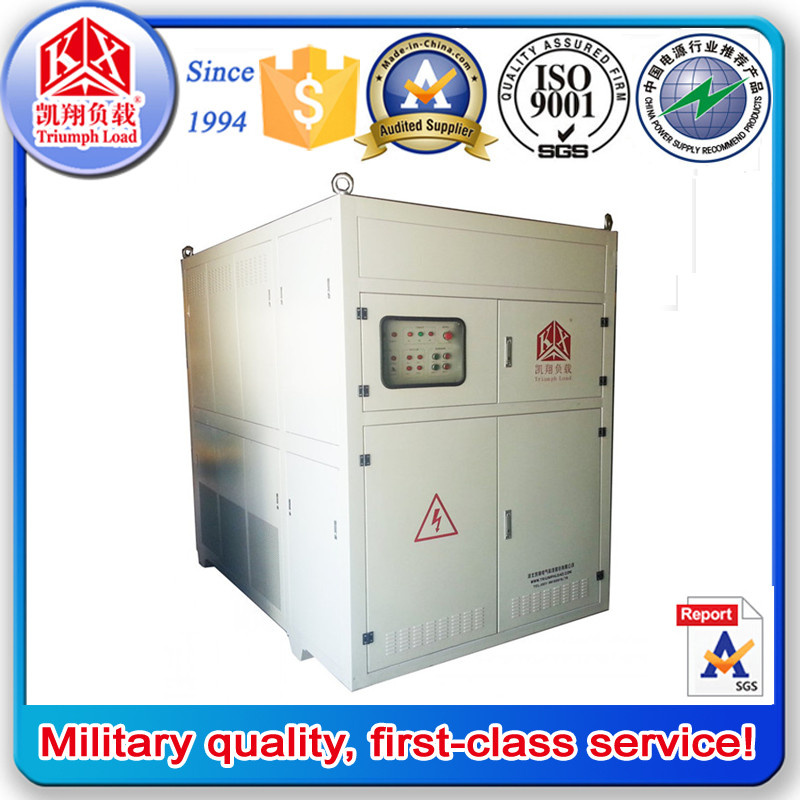

Intelligent Resistive 500KW Load Bank for Generator Testing

1.Product Introduction

Intelligent Resistive 500KW Load Bank for Generator Testing
It is designed for AC power maintenance,could be used widely in communication base,power supply,power station etc.
This machine is small,light weight digital table display,easy operation,high intelligence, set the parameters of constant
current discharge process can be done automatically.

2.Intelligent Resistive 500KW Load Bank for Generator Testing Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)

3.Intelligent Resistive 500KW Load Bank for Generator Testing Technical Specifications

Technical parameter
AC400-500kW
Rated voltage /Frequency	AC 400V/50Hz,3 Phase 4 Wire
Max load power	Resistive load: 500kW
Load step	Resistive load: 11 steps, 1,2,2,5,10,20,20,50,100,100,200kW
Power factor	1
Load Tolerance(each step)	±5%
Load Tolerance(overall)	±3%
Display Precision	0.5 class
Control Power Supply	External AC380V/50Hz 3 phase 4 wire
Wire Connection	Load power supply input--Copper bar (star coupling) Control power supply input--Amphenol connector
Insulation grade	F class
Duty cycle	Continuous
Cooling	Forced air cooling, Horizontal inlet air, Upward cooling
Transportation	Hoisting, there are lifting lug in top of casing and casters in bottom of load bank
Casing Color	Grey(RAL7035)
Dimension	About 1460 mm1980mm1800mm(lengthwidthheight)
Weight	About 900kg
Operating Environment Parameter
Ambient Temperature	-10ºC~+50ºC
Relative Humidity	≤95%
Altitude	≤2500 meters
Atmospheric Pressure	86~106kPa
Main components brand
Contactor	Schneider
Circuit Breaker	Siemens
Fuse	Delixi
SCM	Infineon
Alloy Resistor	Kaixiang
Data Management Software	Kaixiang

4.Why choosing us
The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
The most patent technology and scientific research awards gainer in China.
Advanced detection method and strict inspection procedure build the qualified quality.
Customized production meet the individual requirement.
Prompt delivery & excellent after sales service.
Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.

5.Contact Information
Stella Cao
KAIXIANG ELECTRICAL TECHNOLOGY CO.,LTD
FOREIGN TRADE DEPARTMENT
TEL:+86-0311-86125326
FAX:+86-0311-86128298
Mobile:+86-15081159220
Web:www.load-banks.com
Add:No.68,Jianshe Street,Yuhua District,Shijiazhuang,Hebei,China

Prod Model:	AC400-500KW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	AC 400V
Frequency:	50Hz
Max Load Power:	500kw
Power Factor:	1
Load Tolerance(Each Step):	±5%
Load Tolerance(Overall):	±3%
Display Precision:	0.5 Class
Dimension:	146019801800(LWH)mm
Weight:	900kg
Insulation Grade:	F Class

Who we are

Hebei Kaixiang Electrical Technology Co., Ltd is a leading manufacturer in emergency power supply test & maintenance industry. Specialized in the design, R&D, manufacture of the high capacity AC & DC load bank, it owns the largest intelligent power supply testing equipment R & D centre in China. We offer one-stop solutions to generator set & battery & UPS power manufacturers. Our products are widely used in data centre, shipbuilding, offshore platform, state grid, nuclear power, hospital, communication, railway, war industry etc filed. We are strategy partner of many famous company, such as Cummins, Caterpillar, Kohler, Jiangnan Shipyard, CSSC, CSIC, State grid, China mobile, Tecent, Baidu, Sinopec, CETC etc. Some of our products have been exported to Singapore, Japan, United Kingdom, Saudi Arabia, Australia, South Korea, Thailand, Angola etc. Through years of development, "Triumph Load" already the first brand in power supply detection industry in China.

What we can do

1. Professional technical team with more than 20 years design experience.

2. Customized technical solutions meet customer's individual requirements.

3. Skilled workman insure the reliable assembly technology.

4. Strict inspection procedures throughout the whole production flow.

5. Prompt delivery make sure the customers receive the goods on time.

6. Perfect after sales service create good user experience.

7. Reliable quality & competitive price maximize profits for customers.

8. Timely feedback save valued time for the customer.

9. Humanized management system build homelike work atmosphere.

10. Certified with CCS and ISO9001: 2008 Quality Certificate.
