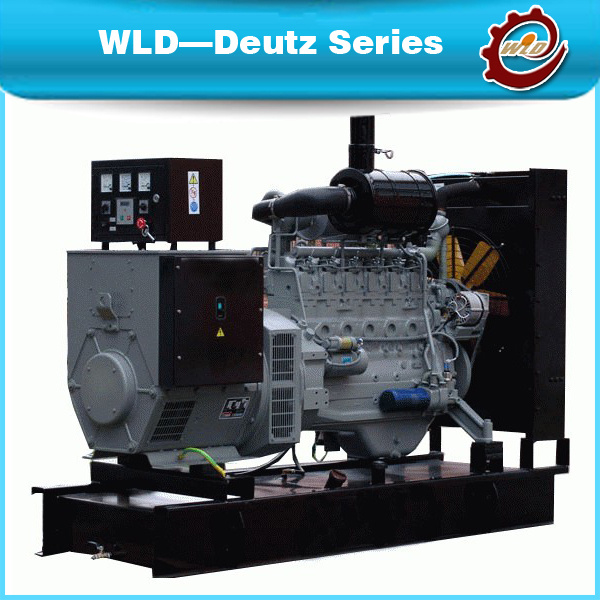

1600KW/2000kva Deutz Industry power generator Parameter:
Genset Specification:
Genset Modle: DD1600
- Dimension: 6035*1716*2316mm
- Weight: 13950kg
- Prime Power: 1600kw
- Rated current: 2880A
- Rated Voltage: 400/230V
- Speed: 1500/1800rpm
- Frequency: 50/60Hz
- Output Type: AC Three Phase
- Power factor (Cos Phi): 0.8
- Altitude: ≤ 1000 m
- Base Fuel Tank: Eight hours(Standard)
- Standards: JB/T 1403-1999, GB/T 12501-1990
- Warranty: 1 Year or 1500 running hours
Engine Specification:
- Engine model: TBD620V16-2A
- Type of Governor: Electronic governor
- Type: V 16 cyclinder
- Bore*Stroke: 170*195mm
- Compression ratio: 13.5: 1
- Voltage regulation: ± 0.5%
- Fuel consumption rate: ≤ 188g/kw. H
Alternator Specification:
- Brand: Stamford, Simens, Marathon, Farady at option
- AVR model: R448 V50
- Number of phase: 3
- Overspeed: 2250RPM
- Exciter type: AREP
- Sustained short circuit curren --300% (3 IN): 10s
- Insulation class: H
- protection class IP22
T- otal harmonics (TGH/THC): < 3.5 %
- Wave form NEMA = TIF: < 50
- Wave form I. E. C. = THF: < 2%
- Bearing: Single
- Coupling: Direct
Control panel:
- Automatic control panel(AMF), LED display.
- Four protection systems
- Emergency stop
- DSE/COMAP/SMARTGEN/HARSON
Optional:
- Trailer type
- Soundproof / water proof
- ATS(automatic transfer switch)
- water Heater
- Parallel system
- Remote system
Soundproof/Silent box:
- Excellent ventilation
- Fuel tank mounted on baseframe for 12 Hours working
- Highly Corrosion Resistant construction
- Excellent Access for Maintenance
- Security and Safety
- 1m<80DBA / 7m<70DBA
