Industrial Storage Electric Steam Generator for Automatic Humidifier

Industrial Storage Electric Steam Generator for Automatic Humidifier
Price: US $ 340-1000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

This humidifier generates sterile steam to humidifying a commercial application.
Its intelligent control system ensures the fully automatic operation.
The multiple fault self-checking system ensures the safe and reliable operation.
Humidification efficiency is more than 95%, low maiantannace.
Use tap water, don't need water pre-treatment system.

Product Descripti

This is brand new commercial electrode steam humidifier, not for resident application. All units are 3-phase AC, 110V, 230V, 380V, 440, 580V are available. It uses tap water, don't need any water pre-treatment system. It has a micro-processing controller, which ensures a reliable and accurate operation. Possible for on/off control and proportional control, 0-10V, 4-20mA, 0-1V, 0-5V, 2-10V, 0-20mA signals are accepted. It is easy to install, just follow the installation, operation and maintainance manual.

Working Principle
Humidifier is composed of cylinder,water inlet valve,drain valve or drain pump,the control circuit board and enclosures.
When the water inlet valve opens,water enters into the cylinder.As the water level rises,the energized electrodes are submerged in the water,electrical current produces among electrodes thanks to the water conductivity,and water temperature increases until boiling to generate sterile steam.

Specifications

Industrial storage Humidifier
Professionla manufacturer
With high quality product
RIch experience

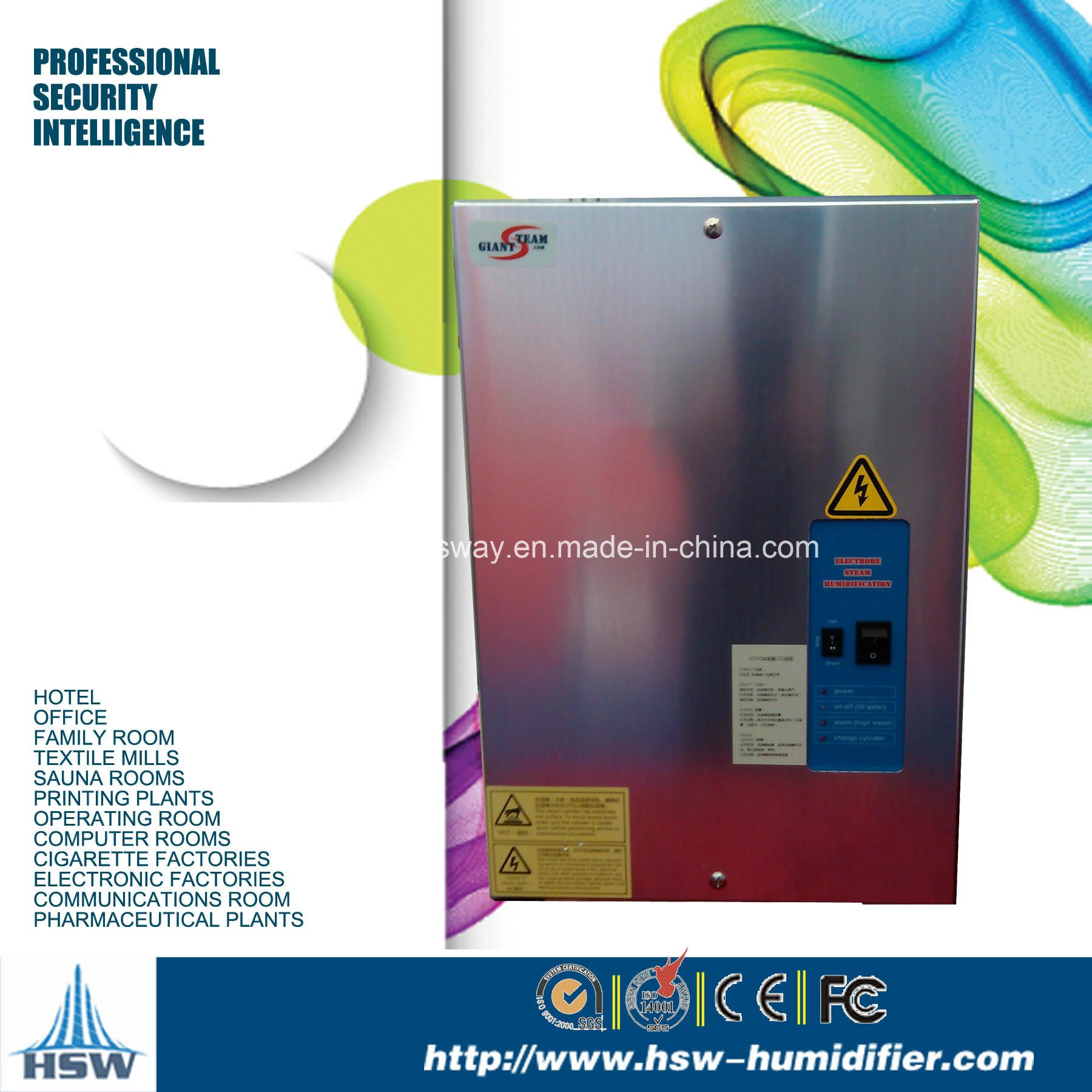

Stand Alone Type Humidifier
This free-stand humidifier evaporating and blowing out steams in fully sterilized condition from cylinder where electric power supply completely boils water has adopted mi-COM controlling system to enable optimum operation matching with humidity demand for each space being coupled with humidity sensor.
As with the characteristics of electrode type, no specific security device is necessary and its operation can be done separately.


Technical parameters
ModelUnit00400801502332045065090130
Humidification QuantityKg/h48152332456590130
Power SupplyV3Phase 380V 380-440 Available 50/60Hz
Phase CurrentA4.48.816.525.335.249.571.599.0143
PowerKW3611.517.524.334.248.868.597.5
Controller of Power SupplyV1Phase 220V 220-240 Available 50/60Hz
Humidifying Bucket QuantityPiece111111122
Humidifying Bucket Model

C4C8C15C23C32C45C65C45X2C65X2
Steam Nozzle Type

D22-300D22-450D32-450D32-600D32-600D32-600D32-600D32-600D32-600
Nozzle QuantityPiece111112244
Case SizeWide/mm360360430430530530530890890


Thick/mm240240300300365365365365365


High/mm560560650650720720720720720
the height with FanHigh/mm770770910910









No-Load weightKg8.89.313.014.016.017.020.033.039
Operating WeightKg12.513.22627394144.58288
Steam outlet Diametermm222232323232323232
Water inlet Diameter

3/4' External Thread
Drain outlet Diametermm32mm


Functions

This free-stand humidifier evaporating and blowing out steams in fully sterilized condition from cylinder where electric power supply completely boils water has adopted mi-COM controlling system to enable optimum operation matching with humidity demand for each space being coupled with humidity sensor.
As with the characteristics of electrode type, no specific security device is necessary and its operation can be done separately.

Easy and convenient manipulation of display
Controller's display includes menu selection, compelled drainage, setting, operation, alarming breaker and etc, and can be operated easily by any user.

Precise controlling
Controlling in use of Micro Processor performs the role so precisely to humidifier's maximum efficiency, and also is saving energy.

Drainage pump mounted
Drainage pump mounted prevents foreign materials' piling-up inside the cylinder, and free drainage can be done wherever the cylinder is positioned.

Security and reliability
Security-and-reliability based design has passed through the stringent security standard of Europe to obtain CE mark.

Auto washing
Automatic washing system prevents accumulation of foreign matters inside the cylinder that may be caused by long time operation, and clean conditions can be maintained.

Cylinder structured for easy mounting/demounting
Cylinder has the structure that can be dismantled, and thus there is little trouble with its cleaning which allows its durability extended.



Advantages

 Leading technology
The world's only electrode humidifier that 32-bit low-power micro-processing chip;
The world's only electrode humidifier controller that uses neural networks and artificial intellingence algorithms;
The world only electrode humidifier that supports WIFI communications for monitoring and controlling networks;
The world's only built-in micro-chip in cylinder for intelligent cylinder working process control;
The world's only electrode humidifier who has high-grade electric leakage protection function;
The world's only super-cleaning functioned electrode humidifier;
The world's only compatible with drain valve and drain pump electrode  humidifier

Prod Model: ECHO
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Echo8-Echo130
The Warranty Of Quality: 1 Year
Humidifying Capacity: 8kg/H to 130hg/H
Voltage: 3p-380V/440V
Use: Air Condition, Sauna, Industrial Storage
Device Does Not Work: Intelligent Alarm Humidifier
Steam: Clean
Main Material: Stainless Steel
Customs Code: 8479892000
High Cost Performance: Y
Type: Portable
Usage: Industry
Certification: FC
Humidifier Type: Vaporizer / Warm Mist
Humidity Control: Automatic
Dehumidifier Type: Humidifier
Qingdao Hessway Machinery & Electric Equipment Co., Ltd. is specialized in a set of open, manufacturing and sales and after-sales services for the whole company. The products have been inspected by the State Administration of Quality Supervision and Inspection Center. Meanwhile the company has passed the state' S compulsory national certification in advance.

The Company adheres to the "people-oriented" business philosophy and takes "pursuing perfection and creating the future with unremitting efforts "as its management policy. We will try our best to provide high quality products and services. Together we will make a great success.
