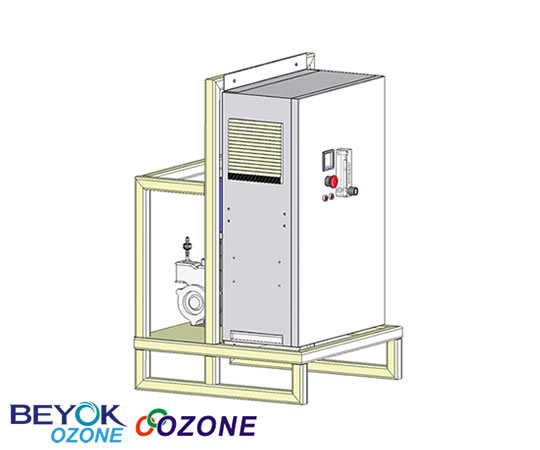

Products: Industrial Ozone Water System
Model: GQW-08
The Industrial Ozone Water System (GQW-08) series are designed for industrial applications. Providing an ozone output range from 8 to 80 grams per hour, these industrial ozone systems deliver tremendous value, performance and output capability in the most demanding conditions.
1 to 100% variable ozone output control with user-friendly controls and diagnostic panels that can be adjusted to meet optimal requirements. These panels monitor and regulate oxygen flow, oxygen pressure and ozone output from generators that feature ceramic-dielectric corona discharge reaction chambers
Industrial Ozone Water System (GQW-08 ) Specifications:
Industrial Ozone Water System (GQW-08 ) Ozone Output (± 10%): 8 g/hr @ 6 SCFH with oxygen
Industrial Ozone Water System (GQW-08 ) Water Flow Rate: 35 GPM (2m3/h)
Industrial Ozone Water System (GQW-08 ) Power requirement: 220V/50Hz-120V/60Hz available
Industrial Ozone Water System (GQW-08 ) Power consumption: 1300 Watts (With mix water pump)
Industrial Ozone Water System (GQW-08 ) Control: 1~100% variable ozone output
Industrial Ozone Water System (GQW-08 ) Environmental Conditions: Up to 85% Humidity, 40~100 deg F
Industrial Ozone Water System (GQW-08 ) Supply Water Temp.: 40~90 deg F
Industrial Ozone Water System (GQW-08 ) Supply Water Press.: 10 PSI(min)
Industrial Ozone Water System (GQW-08 ) Supply Water Flow: 35 GPM(min)
Industrial Ozone Water System (GQW-08 ) Water Connection: 1/2-inch Compression
Industrial Ozone Water System (GQW-08 ) Chassis: Stainless Steel Chassis
Industrial Ozone Water System (GQW-08 ) Dimension (LxWxH): 19.3-in x 18.8-in x 31.1-in (490 x 477.4x790mm)
Industrial Ozone Water System (GQW-08 ) Net Weight: -lb (kg)
Industrial Ozone Water System (GQW-08 ) Features:
Turn Key Ozone Generation System(built-in mixing pump & oxygen concentrator)
Manual 1-100% ozone output control
Very compact system
Easy installation and simple operation
Dependable, reliable, low-maintenance operation
One year warranty
Industrial Ozone Water System (GQW-08 ) Benefits:
Energy savings
Water savings
Operational efficiency
Complete disinfection
Effluent quality
Industrial Ozone Water System (GQW-08 ) Application: Cooling tower, Waste water, Food safety applications, Winery applications, Residential swimming pools, Residential problem water, Bottled water fill lines, Aquariums, Water features, Larger volume water stores
If you are interested in our Industrial Ozone Water System (GQW-08 ), please feel free to contact with us.
