Power Outputs: 0.3kW-10kW
Suitable head: 5m-65m
Suitable flow: 0.005m³ /s-0.06 m³ /s

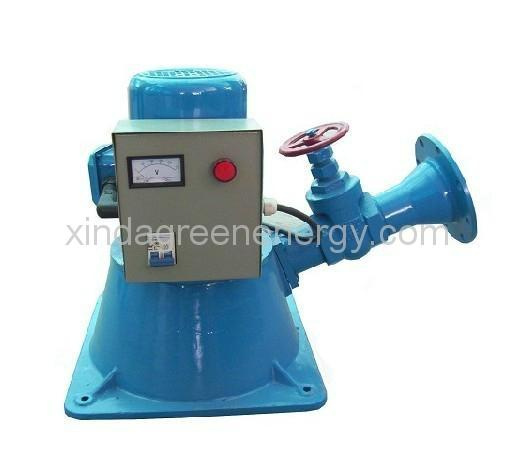

Pelton Type Hydroelectric Generator adopts "Spoon" vane turbine, combined with shell, valve,
Impeller and generator; Clear Structure and Simple Design;
Possess as follows advantages: Small size, light weight, simple structure, reliable operation, and
Easy to install, perfect for household and simple industry production power supply of peasants in
Remote mountains with small water source;
INCLINE JET TURBINE
Power (kW) | Water head (m) | Flow Rate (m3/s) | Speed (r/min) | Diameter (mm) |
10KW | 30-40 | 0.0482-0.05 | 1000 | 200mm |
15KW | 40 | 0.05 | 1000 | 200mm |
20KW | 40-50 | 0.089 | 1000 | 250mm |
30KW | 45 | 0.101 | 1000 | 250mm |
40KW | 55 | 0.12 | 1000 | 250-300mm |
50KW | 60 | 0.127 | 1000 | 300 |
KAPLAN TURBINE
Power (kW) | Water head (m) | Flow Rate (m3/s) | Speed (r/min) |
|
10KW | 3 | 0.514 | 750 | 40mm |
15KW | 4 | 0.69 | 1000 | 40mm |
20KW | 2.5 | 1.19 | 1000 | 60mm |
30KW | 3.3 | 1.2 | 1000 | 60mm |
40KW | 3.8 | 1.63 | 1000 | 60mm |
50KW | 3.2 | 2.65 | 1000 | 80mm |
FRANCIS TURBINE
Power (kW) | Water head (m) | Flow Rate (m3/s) | Speed (r/min) |
|
10KW | 6 | 0.31 | 1000-1500 | 300mm |
15KW | 6-7 | 0.26 | 1000-1500 | 300mm |
20KW | 7 | 0.38 | 1000 | 400mm-500mm |
30KW | 7 | 0.65 | 1000 | 400-500mm |
40KW | 6.5 | 0.82 | 1000 | 500-600mm |
50KW | 7.5 | 1.11 | 1000 | 600-700mm |
TUBULAR TURBINE
Power (kW) | Water head (m) | Flow Rate (m3/s) | Speed (r/min) | Diameter |
10KW | 6 | 0.31 | 1000-1500 | 300mm |
15KW | 6-7 | 0.26 | 1000-1500 | 300mm |
20KW | 7 | 0.38 | 1000 | 400mm-500mm |
30KW | 7 | 0.65 | 1000 | 400-500mm |
40KW | 6.5 | 0.82 | 1000 | 500-600mm |
50KW | 7.5 | 1.11 | 1000 | 600-700mm |
Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on
