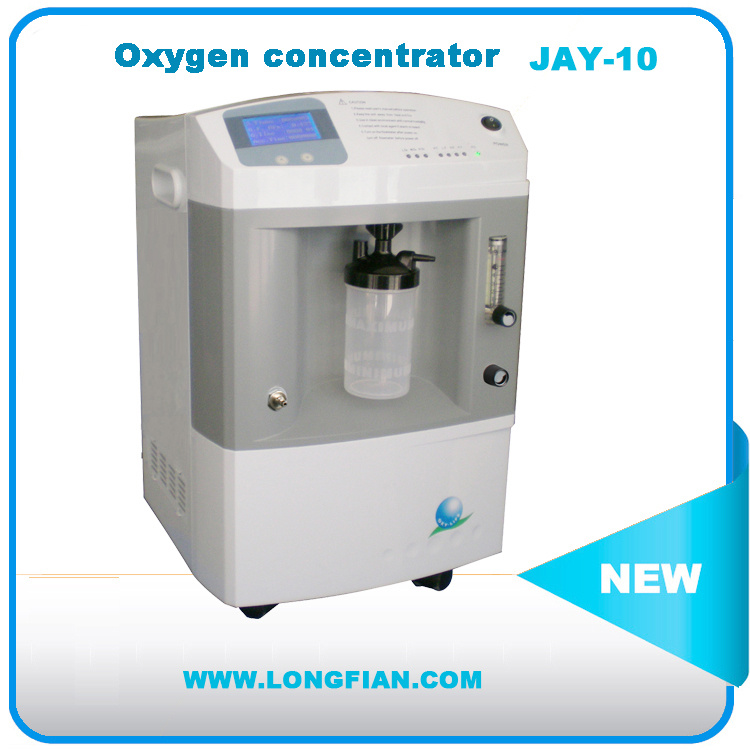

Hypoxic Generator 10lpm Single Flow /Medical Oxygen Generator
Price: |
US $ 600/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
1. The JAY-10 0-10L/min oxygen concentrator is a cost-effective product whose output oxygen concentration is higher than 90%.
2. Our oxygen gas generator is noiseless thus you will not disturb others even using it at night.
3. Compressor components of our oxygen concentrator have been strictly tested and are wear resistant. The reliable compressor guarantees high oxygen concentration.
4. Adopting imported compressor, humidification bottle and molecular sieve, our oxygen generation plant has high oxygen separating efficiency.
5. This oxygen concentrator can be classified into the ordinary pressure type (0.04-0.07Mpa) and the high pressure type (0.14-0.4Mpa). The ordinary pressure type oxygen concentrating machine can be directly connected to the oxygen hose for the user to inhale oxygen. The user will feel comfortable inhaling oxygen produced by the ordinary pressure type oxygen concentration machine since the outlet pressure is low.
The high pressure type oxygen concentrator is mainly used for central oxygen supply system of small hospital, ICU and operating theatre. Housing of the high pressure type oxygen concentration machine can be plastic, iron, aluminum or stainless steel as customers require.
6. Our 0-10L/min oxygen producing machine has a large LCD display indicating the starting times, operating pressure, present working time, accumulated working time and machine temperature. The timing length for one working cycle of this oxygen concentrator can be as long as 99 hours, while the accumulated timing length can be over 100000 hours since the machine has automatic memory function.
7. This oxygenator can be configured with double-flow humidification bottles so that it allows two users to inhale oxygen simultaneously with one machine.
Detailed Information
· Oxygen Outlet Pressure (0.04-0.07Mpa)
· Oxygen Outlet Pressure (0.14-0.4Mpa)
Oxygen Outlet Pressure (0.04-0.07Mpa)
Detailed Information for JAY-10 Ordinary Pressure (0.04-0.07Mpa) Oxygen Concentrator (Plastic Housing)
(1) Application
1. Medical use
2. Combining with separate flow meter to be used to supply oxygen for children or adults
3. Oxygen cylinder filling system
4. Industrial use such as welding, glass cutting, etc
5. Fish farming
6. Oxygen supply for ozone generator
7. Veterinary use
(2)Technical Parameters
Model | JAY-10 |
Flow rate | 0-10L/min |
Oxygen concentration | 1-9L/min: 93%± 3%; 10L/min: 90% ± 2% |
Outlet pressure | 0.04-0.07Mpa |
Noise level | ≤50dB |
Power | AC220V (±10%), 50/60±1Hz; AC110V (±10%), 50/60Hz (±1Hz) |
Power consumption | ≤550W |
LCD display | Starting times, operating pressure, present working time, accumulated working time, preset time from 10mins to 40hours |
Alarm | Power failure alarm; high/low pressure alarm |
Net weight | 28kg |
Size | 365×375×600mm |
Optional
1. Nebulizer (Atomizer)
2. Low concentration alarm: when oxygen concentration is 82% or above, the blue light will be on; when the oxygen concentration is blow 82%, the red light will be on.
3. Maintenance alarm: alarm for maintenance after 3000 hours' operation.
4. High temperature alarm: alarm for high temperature when the internal system temperature is above 50°C
5. Pulse oximeter: fingertip pulse oximeter is available for monitoring patient' oxygen saturation on site.
6. Small LCD display: showing accumulated time, present working time and preset time.
7. Dual flow configuration.
Detailed Information for JAY-10 Ordinary Pressure (0.04-0.07Mpa) Oxygen Concentrator (Iron Housing)
(1) Application
1. Oxygen cylinder filling system
2. Industrial use such as welding, glass cutting, etc
3. Fish farming
4. Oxygen supply for ozone generator
5. Veterinary use
(2) Technical Parameters
Model | JAY-10 |
Rated power (VA) | 550W |
Operation voltage (V/Hz) | AC230V (± 10%)/50Hz (±1Hz) |
Oxygen flow (L/min) | 0-10 |
Oxygen concentration | 93% (± 3%) |
Outlet pressure (Mpa) | 0.04-0.07 |
Alarm | Power failure; low/high pressure; temperature (optional); low concentration (optional); maintenance reminding after 3000 hours' operation (optional) |
Noise level (dB) | ≤ 55 |
LCD display | Accumulated time; present time |
Large LCD display (optional) | Pressure indication (accuracy: 0.001MPa); Accumulated working time (range: 0-10000hours); Present working time (accuracy:1 minute); Preset time (accuracy: 1 minute) Optional: temperature indication (accuracy: 0.1); Oxygen concentration indication Maintenance reminding |
Electrical safety classification | Class II Type B |
Product category | Class II a |
Net Weight (kg) | 3060 |
Dimension (mm) | 380×380×560 |
Low concentration alarm (Optional) | When oxygen concentration is 85% or above, the green lamp is on; when oxygen concentration isbelow 85%, the red lamp is on, indicating low concentration. |
Fuse | F7A/250V |
Oxygen Outlet Pressure (0.14-0.4Mpa)
JAY-10 Oxygen Concentrator with Outlet Pressure of 0.14-0.4Mpa
(1) Application
1.Connecting to ventilator or anesthesia machine in operating theater or ICU
2. Industrial use such as welding, glass cutting, etc
3. Fish farming
4. Veterinary use
(2) Technical Parameters
Model | JAY-10 |
Oxygen flow | 0 -10L/min |
Outlet pressure | 0.14-0.4Mpa |
Oxygen Concentration | 93%±3% |
Noise level | ≤55dB |
Power supply | AC220V (± 22V), 50Hz (±1Hz); AC230V, 50Hz;Optional: AC220V/110V (±10%), 50/60Hz (±Hz) |
Power consumption | 600/850 |
LCD display | Starting times, operating pressure, present working time, accumulated working time, preset time from 10mins to 40hours |
Alarm | Power failure alarm; high/low pressure alarm |
Dehumidifier | Automatic dehumidifier |
Net weight | 45/65kg |
Size | 365×375×600mm830×360×600mm |
Prod Model: |
JAY-10 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
N.W: |
26kgs |
G.W: |
29kgs |
Size: |
365x375x600mm |
Sound Level: |
50dB |
Flow Reate: |
0-10L/Min |
Function: |
Improve Blood Circulation |
Certification: |
FDA |
LCD Display: |
With LCD Display |
Group: |
Adult |
Kind: |
Medical Gas |
Theory: |
Psa |
Longfian Scitech Co., Ltd, located in Longxing Building A(413), 77 Longxing Road, 071051 Baoding China, The company has first-class professional management personnel and research&development technical team, with their own product development capabilities, mainly engaged in medical molecular sieve oxygen concentrator as well as assorting the development of electronic products, now has a variety of standard models and a variety of uses oxygen concentrator, has successfully developed JAY-1, JAY-2, JAY-3, JAY-5, JAY-6, JAY-8, JAY-10 type normal pressure medical oxygen concentrator, JAY-10-4.0, JAY-15-4.0, JAY-20-3.5 with 0.14 ~ 4KG pressure of high-pressure oxygen concentrator, industrial oxygen concentrator and ozone generator etc.; The product has got EU's CE certificate, ISO certificate and FDA certificate, and exported to the United States, France, Spain, Germany, Russia, India, Singapore, Turkey, Thailand etc. More than 60 countries and regions, enjoy a high reputation in Foreign markets
In recent years, the company has joined OEM companies and developed some related medical products for the demands of market, especially for pulse oximeter, SpO2&Blood pressure monitor, SpO2&ECG monitor, syringe pump, infusion pump, etc.
Our goal is "PROFESSIONAL IN QUALITY, FOCUS ON RESPIRATORY PRODUCTS ", to meet the demands of various specialists of medical field and continue to bring you not just the innovative equipment but also the most reliable, long-lasting & quality products.
