Home Generator Products Hye Reliable 3kw Portable Wind Turbine Generator Easy Installed

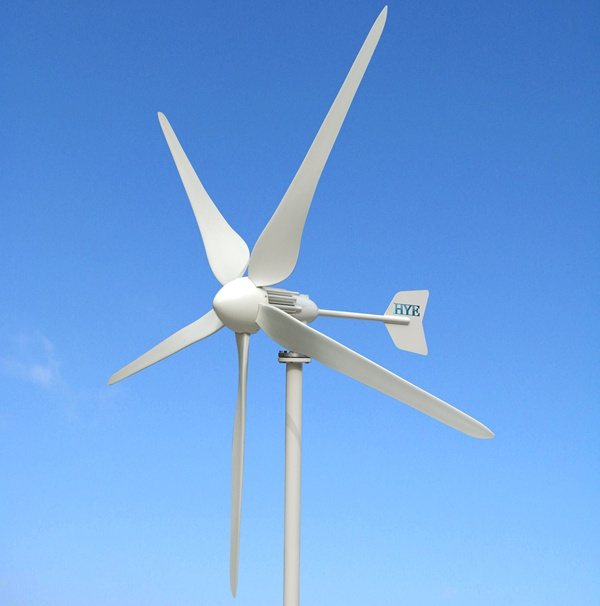

Hye Reliable 3kw Portable Wind Turbine Generator Easy Installed

Hye Reliable 3kw Portable Wind Turbine Generator Easy Installed
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T
HYE reliable 3kw portable wind turbine generator easy installed

Suit for low wind speed area (Annual average wind speed at 3m/s, wind speed focus between 3m/s to 8m/s). Brushless, Strong Neodymium magnet PMA, the unique winding and multi pole design reduces the start-up torque of the alternator that assures the HYenergy wind turbine can generate more electricity at low wind speed.

1. Hight efficiency
2. Light breeze start up
3. Long lifetime - 15 years, free of maintenance
4. Light weight, easy installation
5. Heavy wind self-protection
6. Minimal vibration & low noise operation
7. Anti-rust & anticorrosion
8. Damp-proof & sand-proof

HYenergy wind turbine features:
1. CE certified for "Small Wind Turbine with High Reliability".
2. ISO certified for "Design, Development and Manufacture of Small Wind Turbines".
3. Amazingly quiet operation with little or no vibration.
4. Reliable two-moving-part maintenance free design. No problematic furling.
5. Fully automatic with blade aerodynamic braking and controller electromagnetic braking.
6. High efficiency is achieved by matching design of the generator and blades perfectly.
7. Patented Blades with twisted aerodynamic design made with high-strength Nylon-fiberglass material
8. Easy installation, no welding needed. Pole connector provided for standard Schedule 40 X 2" pipe pole.




Patented Blade Design
Patented aerofoil 5 blade design with true symmetrical and twisted Aerodynamic design which ensures rotor capture maximum power from Wind (Cp>0.35 in low wind) and operates in amazingly low noise and Minimal vibration.

1. True symmetrical and balanced aerofoil blade ensure rotor matching with generator perfectly
2. Large ratio of tip section chord to root section chord and variable chord airfoil blade ensures rotor start-up easily and running smoothly with high torque & RPM at lower wind condition
3. Aerodynamic blades designed with over-speed braking system to make sure generator well protected in higher wind.
4. Reinforced nylon glass-fiber using advanced thermoplastic engineering and
Precision injection molding technology for higher strength, fl exibility and reliability.
5. Cp. >0.35 at low wind

Over-speed Control System
Smart Blade Aerodynamics Braking and Electromagnetic Speed Limitation
Abandoned the traditional failure-prone mechanical furling system, the blade itself is designed with over-speed braking system which will generate a reverse reluctant torque to lower the blade rotation speed so that the blades and generator can be well protected in higher wind, it solved safety and reliability problems facing by most small wind turbines.
Combination of Electromagnetic braking and aerodynamic braking maximizes energy capture by extending turbine's operating speed range into higher and lower wind speed which are missed by the old style wind turbines.




Technical Specifications:
Model HY-3000L
Rated power(W) 3000
Max power(W) 3500
Rated voltage(DCV) 48/110/220
Rated rotating speed(rpm) 650/5500
motor Permanent magnet/trophies
Efficiency ≥ 70%
Start-up speed(m/s) 2.5
Cut-in speed(m/s) 3
Rated speed(m/s) 12
Cut-out(m/s) ≥ 20
Survival wind speed(m/s) ≥ 60
Blade number 5
Rotor diameter(m) 3.05
Blade material Glass fiber, strengthen nylon
Weight of system(kg) 69
Axial run out ≤ 0.0033times of diameter
Noise ≤ 55dB(A)
Wind efficiency 0.42
Working temperature -20' C~55' C
Approval CE, ISO9000: 2001, RoHS
Packing details Export wood: GW: 73kgs  Meas.: 154× 61× 28cm
Prod Model: HY-3000L
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Blades Number: 5 Blades
Voltage: 48V~220V
Peak Output: 3500W
Rotating Shaft: Horizontal
Number Of Blade: Multiple-Blade
Stress Way Of Blade: Resistance
Phase: 3 Phases
Guangzhou HY Energy Technology Limited Corp. Is a high-tech enterprise engaged in designing, manufacturing, marketing on highly reliable small wind turbines and serving in wind-solar hybrid power system integration technique.

Guangzhou HY Energy Technology Limited Corp.   Has made tremendous contributions to improve national wind generator manufacturing level under the breakthrough technique on wind turbine design conception and production craft since 2001, meanwhile, our breakthrough technique on wind-solar hybrid power system has also LED a large scale application in real circumstance.

HY Energy was appointed to be the drafter of off grid wind solar generating safety requirement standard No. (20074719-T-604) based on the advance technology inaugurator of perfect matching design on wind blade and generator and the perfect matching on wind energy and solar energy.

Guangzhou HY Energy Technology Limited Corp.   Is the sole enterprise passing design and manufacture of high reliable small wind turbine project and accepted by The Ministry of Science and Technology of the People' S Republic of China.

HY Energy' S wind turbine series has successfully been selected into WWEA 2010 and WWEA 2011 global high quality small or medium generator catalogue.
