Home Generator Products Hye 400W Wind Turbine Generator (HY-400L-24V)

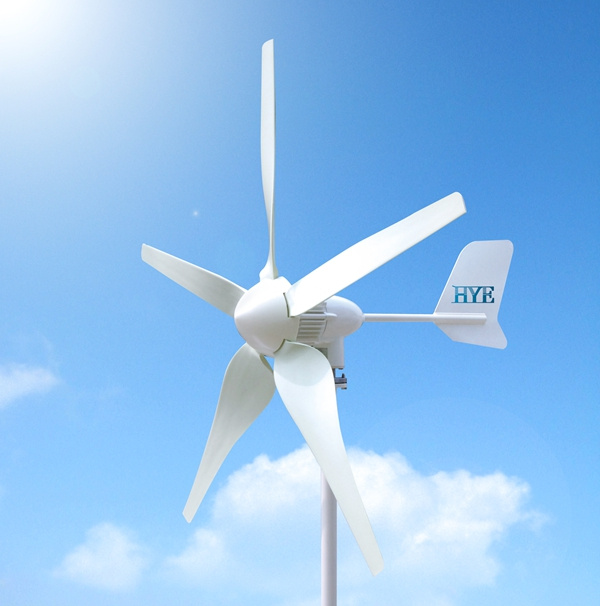

Hye 400W Wind Turbine Generator (HY-400L-24V)

Hye 400W Wind Turbine Generator (HY-400L-24V)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 5/Piece
Pay Type: L/C,Western Union
400W small wind turbine main features:
1. NASA blade shape adopted, unique generator design, start up in breeze
2. Innovative two moving parts only, brushless, strong neodymium permanent magnets in HYenergy wind turbine, so the generator is compact, easy to install, high reliable and light weight with a high power generating efficiency.
3. Patented blades with aerodynamic design, heavy wind resistance, low noise and small vibration
4. Pass 500-hour salt spray test, anti-rust, anti-corrosion
5. Patented labyrinth generator design, moisture-proof, water-proof, sandstorm-proof
6. Generator parts patented design, 15 years maintenance-free wind turbine service life
Model HY-400H
Rotor diameter(m)   1.5
Blade material HY patent(mainly glass-fiber, strengthened nylon etc)
Blade number 3(variable section aerofoil)
Speed-limitation mechanism Electromagnetic speed limitation and blade over-speed braking
Working wind speed(m/s) 3-30
Start-up speed(m/s)   2.5
Cut-in speed(m/s) 3
Survival speed(m/s) 60
Rated speed(m/s) 12
Rated power(W) 400
Max. power(W) 500
Rated voltage(DCV) 12/24
Motor 3 phases PMA
Tower height(m) 8-12m(according to different project)
Weight of system(kg) 16(including rotation unit, tail and blades)
Others normally working for 15 years free of maintenance
Prod Model: HY-400L-24v
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe
Heavy Wind Protection: Dump Load and with Electromagnetic Breaking
Certification: CE, RoHS
Voltage: 24V
Rotating Shaft: Horizontal
Number Of Blade: Three Blade
Stress Way Of Blade: Resistance
Guangzhou HY Energy Technology Limited Corp. Is a high-tech enterprise engaged in designing, manufacturing, marketing on highly reliable small wind turbines and serving in wind-solar hybrid power system integration technique.

Guangzhou HY Energy Technology Limited Corp.   Has made tremendous contributions to improve national wind generator manufacturing level under the breakthrough technique on wind turbine design conception and production craft since 2001, meanwhile, our breakthrough technique on wind-solar hybrid power system has also LED a large scale application in real circumstance.

HY Energy was appointed to be the drafter of off grid wind solar generating safety requirement standard No. (20074719-T-604) based on the advance technology inaugurator of perfect matching design on wind blade and generator and the perfect matching on wind energy and solar energy.

Guangzhou HY Energy Technology Limited Corp.   Is the sole enterprise passing design and manufacture of high reliable small wind turbine project and accepted by The Ministry of Science and Technology of the People' S Republic of China.

HY Energy' S wind turbine series has successfully been selected into WWEA 2010 and WWEA 2011 global high quality small or medium generator catalogue.
