Hydro Turbine/Small Hydro Turbine for Hydro Power Plant

Hydro Turbine/Small Hydro Turbine for Hydro Power Plant
Price: Negotiable/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

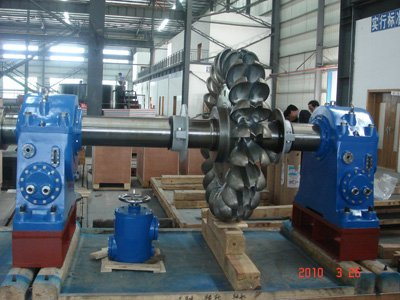

Pelton turbine also called a free-jet turbine or Pelton wheel, a type of

Impulse turbine, named after L. A. Pelton who invented it in 1880. Water

Passes through nozzles and strikes spoon-shaped buckets or cups arranged on the periphery of a runner, which causes the runner to rotate, producing mechanical energy. The runner is fixed on a shaft, and the rotational motion of the turbine is transmitted by the shaft to a generator.

The impulse type turbines are the best election for high head and small discharge hydraulic power resources. They have compact structure, small size, high efficiency and need fewer investments. They have been divided into Turgo and Pelton type.

The impulse type turbines made by Fuchun, are ranging from 80 to 1, 000m in water head, 200kW to 20MW in capacity and 0.55 to 2.3 in runner diameter. Theirs shaft arrangements are either vertical or horizontal and they may have single nozzle, twin or multi-nozzles.

Partial reference of data
Hydro turbine
Generator

Speed
governor

Type of
Valve
Type   Design
Head
(m)
Design
Flow
(m³ /s)
Power
(kW)
Rated
Speed
(r/min)
Type Rated
Power
(Kw)
Rated
Voltage
(v)
CJA475-L180/4× 14 504 5.788 26042 500 SF25-12/3840 25000 10500 CWT/4
QF700-WY-100
CJA475-L180/4× 16 422 6.951 26042 500 SF25-12/3840 25000 10500 CWT/4
QF600-WY-120
CJA475-L200/4× 16 497 7.554 33333 428.6 SF32-14/3842 32000 10500 CWT/4
QF700-WY-120
CJA475-L200/4× 18 360 8.148 26042 375 SF25-16/4100 25000 10500 CWT/4
QF500-WY-130
CJA475-L200/4× 18 425 8.786 33333 428.6 SF32-14/3840 32000 10500 CWT/4
QF600-WY-130
CJA475-L200/4× 20 313 9.320 26042 375 SF25-16/4100 25000 10500 CWT/4
QF500-WY-150
CJA475-L225/4× 16 575 8.117 41667 428.6 SF40-14/4250 40000 10500 CWT/4
QF800-WY-120
CJA475-L225/4× 16 669 8.769
52083
500 SF50-12/4250 50000 10500 CWT/4
QF900-WY-120
CJA475-L225/4× 18 493 9.520 41667 428.6 SF40-14/4250 40000 10500 CWT/4
QF700-WY-130

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Founded in 1978, Fuchun Industry Development Co., Ltd was moved to Shenzhen in 1998. In 2005, in the process of state-owned enterprise reform, our company has conglomeration and merger with GANZHOU COMPLETE SETS OF POWER GENERATING EQUIPMENTS MANUFACTURE Co., Ltd, dealing with all export projects, especially Complete Sets of Power Generating Equipments including design, manufacture, and installation and operation supervision, training.

Our factory has over 60 years experience in hydro power equipment manufacturing activities. We continue to hold the Fuchun's philosophy-adding product value, keeping good quality and providing good service.

Nowadays the company's business not only engages in manufacturing of small power equipment, but also covers engineering, design, procurement and construction of small and medium size hydro power plants (10kw-50MW) and coal-fired (biomass) power plants (200kw-25MW). We either wholly own or jointly own with other partners to have invested several factories in the power equipment industry, such as Jiangxi Ganzhou etc. We also dealing with small wind power generator and solar power plants, power substations, supply of power related equipment and machines of boiler, fan, pump, environment equipment (smoke flux treatment, water treatment), coal excavation facilities, dust and slag handling equipment, thermal power generation turbines, driving turbines, hydro turbines, wind turbines, generators, transformers, power cables, weight scales, cranes, bull dozers, analysis facilities and so on. Our company is also willing to take the contract of small and medium power generation factory consulting business because we have strong technical force of engineers and technicians.

In 30 years of the company history, we designed and manufactured a large mount of hydro turbine generators, not only for domestic China but also export to more than 30 counties, such as Guatemala, Ecuador, Congo, Pakistan, USA, Canada, Cuba, Germany, Austria, Turkey, North Korea, Viet Nam, Burma, Nepal, Norway, Denmark, Belgium, Uruguay, Russia, Georgia, Bulgaria, Bhutan, France, UK, Italy, etc.

Our company sincerely welcomes all clients, partners, and friends from all over the world to contact us for business co-operation. We believe that our efforts will bring you and us a win-win situation.
