Specification:
HPGE offer a comprehensive range of hydroelectric power plant solutions that cover the entire scope of service including:
Small hydro power project consultant
Site management studies
Equipments Design
Hydroelectric equipemtns Manufacture
Project management
Installation guidance
Commission and start operation
Operation guidance
Hydroelectric equipments maintainence
Place of Origin Sichuan, China (Mainland)
Brand Name Wawu Mountain
Model Number HLA708A-WJ-53
Material steel, iron
Color yellow
Style f rancis
Net head 30-700m
Specific speed 50-300 R/min
Max capacity 12000KW

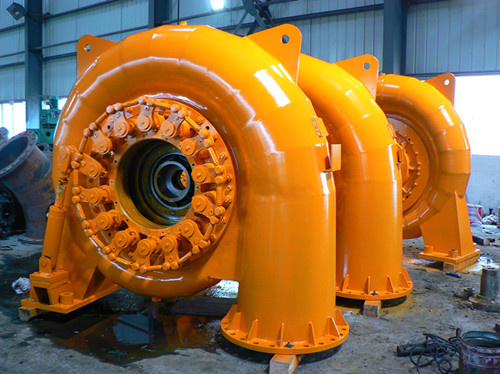

For Francis turbine, You can find the general specification as below.
1. A type of hydropower reaction turbine.
2. Runner blades typically 9 to 19 in number, which cannot be adjusted.
3. Runner Diameter 0.35m to 4.5m.
4. The applicable design head is 2m to 800m, .
5. Unit capacity 50KW to 12 MW.
6. Specific speed 50 to 300 rpm.
7. Efficiency 85% to 95%.
8. Life span 30 to 50 years.
For Turgo turbine, You can find the general specification as below.
1. A type of impulse turbine, similar to pelton turbine but can handle higher flow rates.
2. Applicable net head 40m-300m.
3. Unit capacity 50KW to 20MW.
4. Efficiency 85% to 95%.
5. Life span 30 to 50 years.
For Pelton turbine, You can find the general specification as below.
1. Also called a free-jet turbine or Pelton wheel, a type of impulse turbine.
2. Suited to high head, low flow applications.
3. Can contain up to 6 nozzles.
4. Applicable net head 50m to 1000m.
5. Efficiency 85% to 95%.
6. Life span 30 to 50 years.
For Kaplan turbine, You can find the general specification as below.
1. A propeller-type of water turbine, evolution of the Francis turbine with adjustable blades, widely used throughout the world in high-flow, low head power production.
2. Head ranges from 2m to 40m.
3. Runner diameters from 2m to 8m.
4. Turbine range from 79rpm to 429rpm.
Hongya Power Generating Equipment to Utilities Limited, is a professional manufacturer of hydro power generating equipments. It has high quality products include mainly water turbine, generator and governor. Water turbines units with an individual capacity of 50kw~20000KW, we have jet turbines, Pelton turbines, Francis Type turbines, and axial turbines. All these products are produced and tested according to national standards, and machinery trade standards. The products have such characters as rational structure, reliable operation, high efficiency, standardized spare parts, high generalization, and convenient maintenance. They are available in every variety and model, and have reliable quality.
Hongya Power Generating Equipment to Utilities Limited has obtained the certification of ISO9001/2008, SGS certificate and is the member of Chinese Society of Electrical Industry. Products are sold all over China and exported to Albania, Nepal, Indonesia, Turkey, Vietnam and Myanma, etc
Stepping into the past and looking forward to the future, we will continuously strengthen the innovation on products and techniques, strictly control the product quality and build up more perfect after-sale service system.
