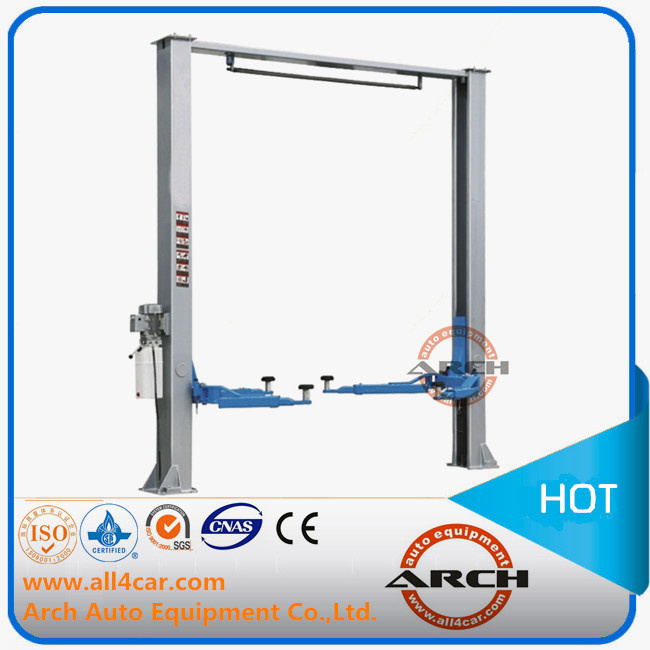

Hydraulic 2 Post Gantry Hoist (AAE-TPC140)
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Product Description:1. By two cylinder, plate and wire rope chain balance system, lifting and lowerìng smooth.
2. Clear floor design can make the operator in the vehicle under working more easily.
3. Hydraulic power unit configuration throttling device .can always adjust the rate of decline.Manual mechanica llock release from two sides .
4. 24V height limit switch. Asymmetric arm design,leaves more space for the cars.
5. Rubberpad with spiral adust the height and in stages adust the height.

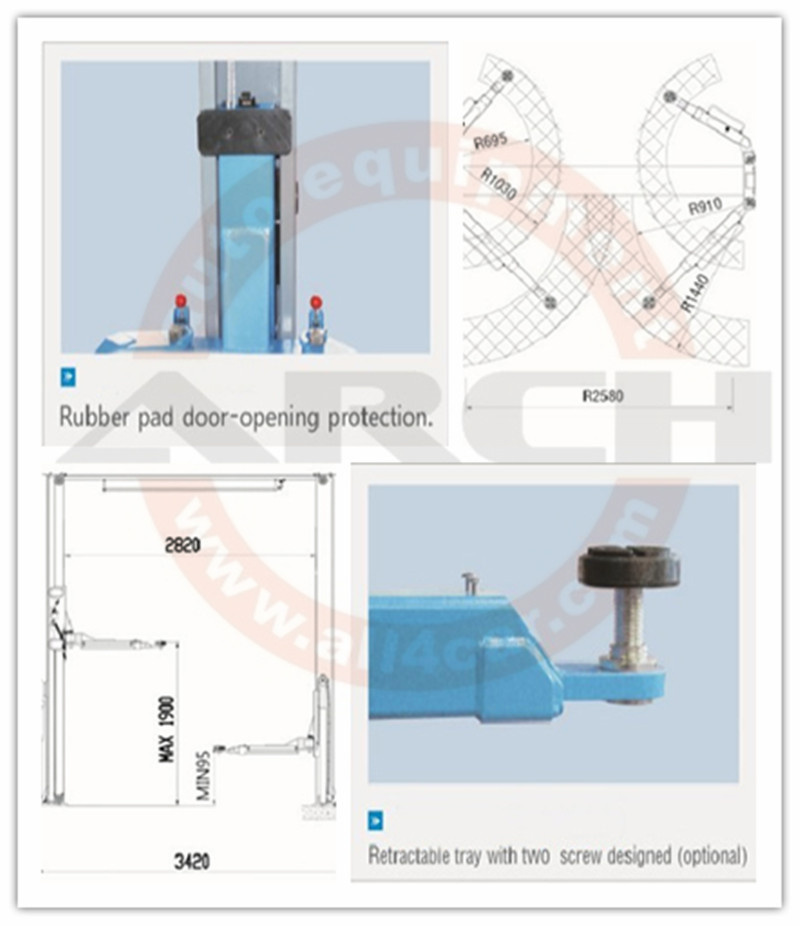

Rubber pad door-opening protection .
6. Feet-protection safety guardrails.
7. It has adopted 115% dynamic loading ca pacity and 150%.
staic loading capacity tested .
8. CE certificated.
9.Australia Certificated.2 post lift
Hydraulic 2 Post Gantry Hoist (AAE-TPC140)
Hydraulic 2 Post Gantry Hoist
Electrical release floor plate lift
Hydraulic 2 Post Gantry Hoists
High Quality 2 Post Gantry Hoist
Car Hoist
Technical Parameter: | Modle | AAE-TPC140 |
| Colour | Blue/Red/On request |
| Lifting Capacity | 4.0t |
| Lifting Height | 1900mm |
| Min Height | 95mm |
| Lifting Time | 50s |
| Overall Heinght | 3726mm |
| Overall Widht | 3420mm |
| Motor Power | 2.2kw |
| Power Supply | 220V/380V/415V |
| Weight | 689kg |
| Feature | Electrical release floor plate lift |
| Packing Size | 3750*530*770mm |
| | |
Company information:ARCH AUTO EQUIPMENT CO.,LTD.Arch Auto Equipment is one professional auto equipment manufacturer and supplier China. Since 1990, Arch is committed to designing, producing auto equipment. We supply wide range of equipment such as tire changer, truck tire changer, wheel balancer, truck wheel balancer, single post parking lifts, two post lifts, four post lifts, truck lifts, alignment lifts, scissor lifts, spray booth, waste oil burner, waste oil heater, oil drains, wheel weights, nitrogen generator and inflator, car turntable. Featuring durable quality, competitive price, timely and professional service, Arch Auto Equipment's equipments get more and more popular in the international markets, such as Germany, USA, Holland, UK, Russia, and Iran, awarded TUV/CE certificate. Furthermore, Arch Auto Equipment has strong R&D ability. During the past years, we have successfully created new design products with customers' cooperation. Arch Auto Equipment is willing to join hands with any partner for a bright future.
![]()
FAQ
Why chose us:1. Famous brand name in china2. Super high quality, competitive price3. Customer-oriented service4. Big production ability5. Fast delivery, excellent after-sale service6. Certificate CE, ASME, SGS, BV,ISO9001,ISO14001,How can I get quote/price1. Just send email to us ,and it will be responded with 24 hrswhat about the lead time for mass product1. Leading time:20daysOur company website:http://www.all4car.com
| Prod Model: |
AAE-TPC140 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Modle: |
Aae-Tpc140 |
| Colour: |
Blue,Red ,on Request |
| Lifing Capacity(Ton): |
4.0ton |
| Lifting Height: |
1900mm |
| Liftign Time: |
50s |
| Overall Height: |
3726mm |
| Overall Width: |
3420mm |
| Motor Power: |
2.2kw |
| Power Supply: |
220V/380V/415V |
| Weight (Kg): |
689kg |
| Type: |
Double Cylinder Hydraulic Lift |
| Lifting Capacity: |
4T |
| Certification: |
CE |
| Design: |
Two Post |
| Brand: |
Arch Auto Equipment |
