Hummer domestic wind turbine is specially design for home use, domestic wind generator 2kw domestic wind turbine generator
Product Information

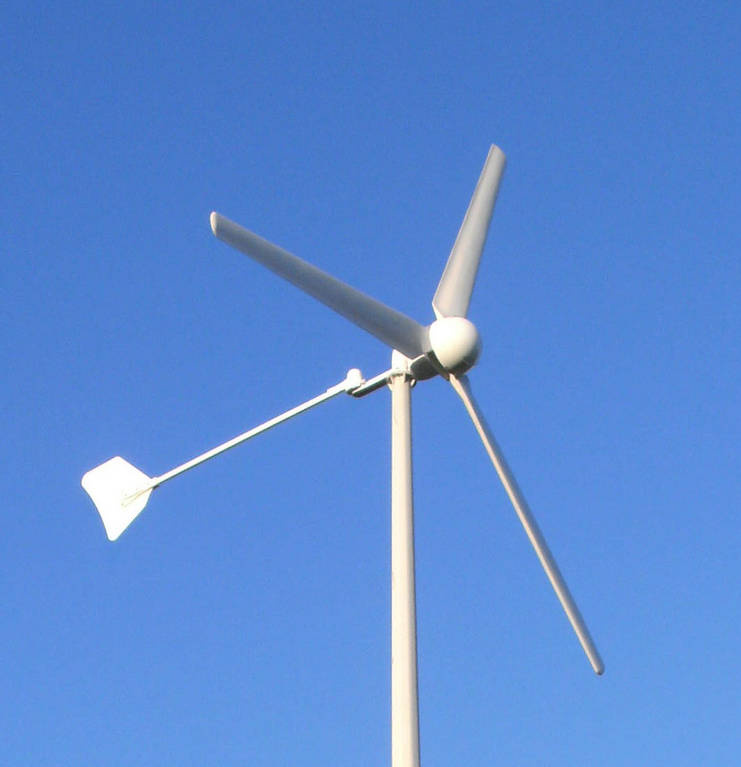

Hummer H3.8-2000W domestic wind turbine is a typical HUMMER small wind turbine below 3KW. The generator which is able to be placed inside the nose cone gives you a clear look how small hummer generator is. Though very small, compared with traditional turbine, its stronger power-making ability has won Hummer's reputation in the worldwide market. Refined material, strong structure and mature techniques ensure its toughness in wild field.
By a net weight of 25kg, H3.8-2000W domestic wind turbine wind energy utilization ratio is as high as 0.45 while generator efficiency is higher than 0.8. It is capable of meeting a family's basic power needs.
H3.8-2000W domestic wind turbine yaw shaft is made of refined steel, tail pole is made of strong manganese steel, and tail wing is made of steel. These refined and high quality materials ensure reliable deflection for protection.
16m is the ideal distance between two 2kw domestic wind generator.
Application of Model H3.8-2000W domestic wind generator
It can drive air-condition (2 horsepower), 800W water pump or other electrical appliances (≤ 2KW).
Well used in:
Housing
Telecommunication Station
TV Transfer Station
Monitoring Station (military, hydrology, observatory)
Water-pumping Station
Main technical data
Rated power (W) 2000
Maximum output power (W) 3200
Battery bank voltage (Vdc) 120
System output voltage (Vac) 110/220
Start-up wind speed (m/s) 3
Rated wind speed (m/s) 9
Working wind speed (m/s) 3-25
Survival wind speed (m/s) 50
Generator efficiency >0.8
Wind energy utilizing ratio (Cp) 0.45
Generator type Permanent Magnet Alternator
Generator weight (kg) 25
Blade material/quantity GRP/3
Blade diameter (m) D3.8
Speed regulation method Yawing+Electromagnetism braking
Shutting down method Manual+Automatic
