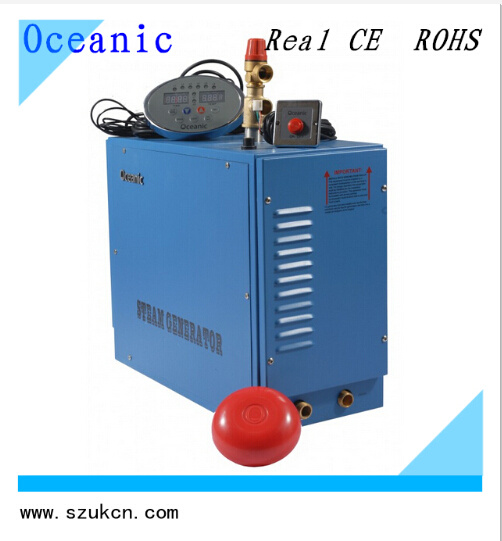

Hot Selling 8kw Sauna Steam Generator / steam sauna generator
1. Description
Oceanic steam generator is a high quality steam generator which has been tested strictly by Nemko Company in UK.compare other steam generator ,we have many renovation design.
The main characters of this steam generator are as followings:
Working Voltage (DC5V) Auto Diagnostics LED display
Temperature display Time display
Centigrade or Fahrenheit display Auto drain and flush
Temperature control Time control
Light control Fan control
Sequential heating
Steam on demand function Fast steaming
Stainless steel elements.
Power: 3kw, 4kw, 4.5kw, 6kw, 8kw, 9kw, 10.5kw and 12kw are available.
Safety features includes boil dry protection, thermal overload safety cut out and pressure relief valve
Oceanic steam generator is a high quality steam generator which has been tested strictly by Nemko Company in UK.compare other steam generator ,we have many renovation design
The main characters of this steam generator are as followings.
1. Large and improved time display screen showing time in hours and minutes and allowing settings between 15 and 240 minutes -many old types are restricted to 30 -60 minutes
2. Temperature settings allow for 30 to 60 degrees and for the display to be in centigrade or Fahrenheit according to the customer's preference while many old types only allow 35 to 55 and only display in centigrade
3. Sequential heating -each generator is fitted with 3 banks of heating elements to provide sequential heating - from cold all 3 banks operate for maximum power and rapid heating, when the steam room temperature is almost reached bank 1 stop, when the required temperature is achieved bank 2 stop and the temperature is maintained by bank 3 alternating on and off -this helps to maintain the temperature inside the steam room at a consistent level adding to the user's comfort while simultaneously helping to save energy and prolong the working life of he elements -many old type generators only heat with all elements so boiling is rapid. The steam outlet is always furious and the steam room temperature is less stable and less comfortable for the client.
4. Advanced digital signal control mode allows the generator to be controlled from up to 20 meters away without interference from other cabling - old analogue systems can only control over a short distance and are easily disturbed by spurious electromagnetism
5. Overheat and boil dry protection ,double protection
6. Bright red high visibility steam inlet nozzle to help prevent scalding and chorme plated inlet nozzle for choose.(chrome nozzle(need extra 8USD charge) and white plastic nozzle (only for 3-6kw )are optional)
7. Auto drain-down with controlled flushing cycle -many old type generators only have manual draining and no flushing cycle.
8. Diagnostics - 8 LEDs on the controller show 12 different working stages and operations that can be used for elementary diagnosis if a problem should occur.
9. Extra switch for steam room lamp
10. 1.2BAR pressure relief valve. Can give real guarantee to the generators safty.
Every Oceanic steam generator is subjected to 6 strictly controlled tests:
1.48 hour continual test for circuit board
2.Controller is tested for all functions
3.High voltage test
4.Earthing resistance test
5. Power test.
6.Operational test of every steam generator before packing
3. Certificates:
Model | Power(KW) | Voltage ( V) | Phase(N~) | Current(A) | recommended steam room (M3) |
| OC-30 | 3.0 | 230 | 1 | 13 | 2.5-5 |
| OC-40 | 4.0 | 230 | 1 | 17 | 2.5-5 |
| OC-45 | 4.5 | 230/400 | 1/3 | 19.5/6.5 | 2.5-5 |
| OC-60 | 6.0 | 230/400 | 1/3 | 26.4/8.7 | 6-7 |
| OC-80 | 8.0 | 230/400 | 1/3 | 34.8/13 | 8-10 |
| OC-90 | 9.0 | 230/400 | 1/3 | 39/13 | 10-12 |
| OC-105 | 10.5 | 230/400 | 1/3 | 45.6/15 | 12-15 |
| OC-120 | 12.0 | 230/400 | 1/3 | 52.0/17 | 14-17 |
|
|
|
|
|
|
UKCN Leisure Equipment (Shenzhen) Limited is a collaboration of a UK based company with almost 30 years of experience in the British and European markets together with a team of experienced engineers and designers based in one of the worlds foremost electronics manufacturing cities.
The resulting "Oceanic" brand sauna and swimming pool products represents an exciting new range of innovative products designed to match the modern day customer's expectation in terms of performance and reliability but also and more especially in product safety and quality.
All electrical products are tested in the UK by NEMKO and certified as meeting the requirements for CE marking and the company has its own in house quality control systems to ensure every product in thoroughly inspected and properly tested to meet our exacting standards. What is more, our products also passed the German Lab test for safety standard and RoHS requirement. So our products exported more than 70 countries (80% is for Western Europe) and in some countries, we have sole agent:
UK: HTTP: //www. Oceanic-saunas. Co. UK
France: HTTP: //www. Saunasolar. COM
Belgium & Spain & Portugal: HTTP: //www. Oceanic-saunas. EU
Kazakstan: HTTP: //www. Saunaworld. Kz
And so on, we also OEM fro famous brand "Aqua " and German brand "Fintec".
We trust you will find our products are of interest and reliable we hope to be of service to you soon.
