Off grid wind power system
This is Lim, if you are is urgent, can contact me directly or
Moble phone: 8613640397187
We can supply wind power system off grid 200W-50kw capacity

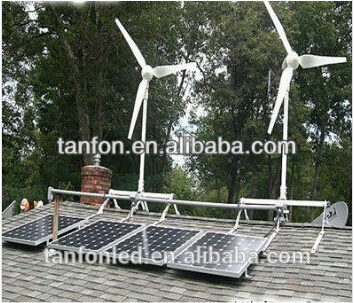

And solar wind hybrid system 300W-100kw capacity
The complete system include:
1) wind turbiner
2)wind controller
3)inverter
4)battery
5)pole or tower
6) cable
Wind turbine Feature:
1. Rare earth permanent-magnet generator
2. Small vibration and tiny friction, stable rotation in higher speed
3. Streamlined wind turbine body and blade outline design
4. Blades have 2 kinds, 300W-1kw have 3 PCS or 5 PCS choose, up to 2kw have lighted blades choose. 5. Noice level below 55dBaround the wind turbine tower
6. State of the art, workmanship and beautiful appearance
7. Use magnetic saturation technology, with 20years designed life;
8. Select high quality bearing, free to maintenance;
9. Anti-twist device, generator can whirl in each direction
10. Anti strong wind, the blade protect itself automatically,
11. Supply matched controller/inverter, make the system more stable.
Wind on grid system: Wind turbine +wind on grid controller +grid tie inverter
Wind off grid system: Wind turbine +wind controller+ battery +pure sine wave inverter
System Application:
1, Living house and home building;
2. Office building, factory and warehouse
3. Shopping mall, venue, stadium and so on
4. Power station, field operation and some huge engineer construction
|
TANFON 2KW Off grid wind power supply systems |
System
Basic Information |
Wind generator power:2000W
Annual average energy: 5000kWh
Supply power for air-condition, refrigerator, water pump, washer |
list |
Wind generator
|
|
Model |
FD-2000 |
|
Rated power |
2000W |
|
Starting wind speed |
3m/s |
|
Cut-in wind speed |
3.5m/s |
|
Rated wind speed |
12m/s |
|
Security wind speed |
45m/s |
|
Rated DC voltage |
48V |
|
Rated speed |
374 r/m |
|
Rotor diameter |
3200mm |
|
Protection |
Electromagnetic torque control
and electricity brake |
|
Type |
3phase permanent magnetism
synchronization generator |
|
Blade material |
Extra-strong fiber glass |
|
Packing material |
Plywood box and foam material |
|
Packing Size |
850*480*350mm |
|
N.W&G.W(kg) |
117/132kg |
|
QTY
1pcs |
Wind controller
|
Ws2kw/48v wind charger controller
Rated Battery Voltage: 48V
Wind Turbine Maximum Input: 80A
Unload Voltage(factory default): 56V
Unload Current(factory default): 50A |
QTY
1pcs |
Battery
|
Capacity:12V/200AH full sealed
Solar power lead-acid battery,
Service life:5-6 years ,
Size:522*238*218mm
Connect way : 4pcs in series connect to inverter |
QTY
4pcs |
Off-Grid inverter
|
TF2KW/48V pure sine wave wind inverter
110/120/220/230V output; with grid charger build-in
Protection against overload, short circuit, anti-reverse, discharger, etc. |
QTY
1pcs |
Guy cable tower
|
6m tower;
It help fasten wind generator in safe altitude.
Use steel material with rust prevention.
Easy to install |
QTY
1set |
