Specification:

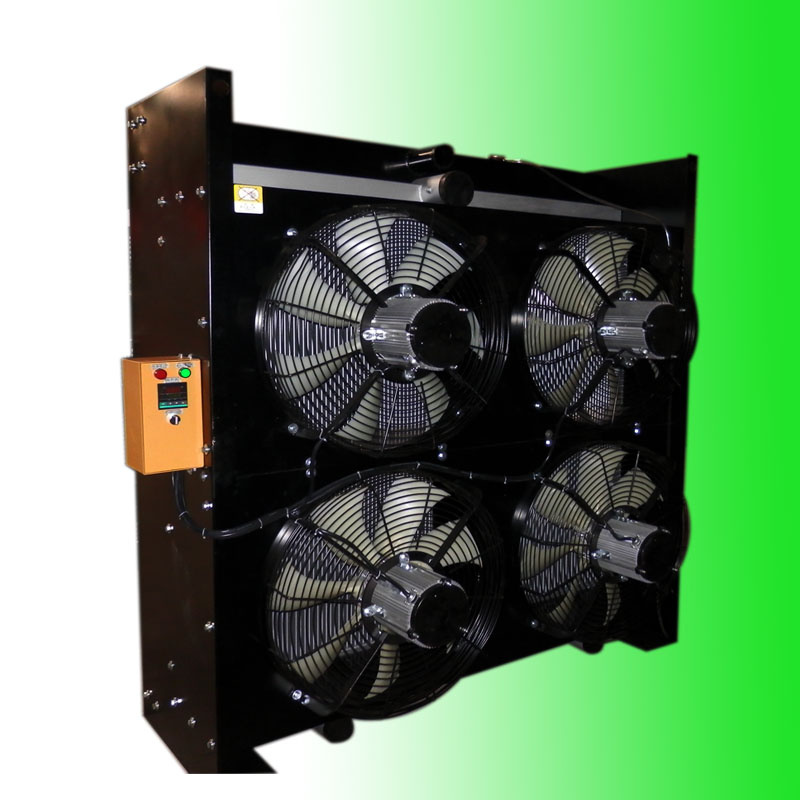

1. Product name: Generator sets radiator for Nantong Power (NTW974Z-68-000)
2. Colour: Per customer's request
3. Model: NTW974Z-68-000
4. Power: 552KW
5. Certification: ISO9001
6. Cooled type: Water
7. Body material: Aluminium
8. Structure: Sealed type
9. Brand: Huizhi
10. Use: Generator sets
Advantages:
1. Good quality and competitive price.
2. Compact structure and high performance
3. Low consumption and high efficiency
4. Elegant appearance
5. Timely delivery
7. Good after sal service
Company breif instruction:
Our factory was established in 1987, our main products include:
1. Generator sets radiator.
2. Truck radiator
3. Reaper or harvester radiator
4. Tractor radiator
5. Forklift radiator
6. Petroleum machinery radiator
7. Marine machinery radiator
8. Intercooler
9. Car radiator
We are now providing the radiator for Cummins, Perkins, Deutz, MTU, Mitsubishi, Weichia, Shangchai, Jichai, Wuxi Power, Luoyang Dong fanghong, Yuchai and so on. We can supply the radiator with copper core or Aluminium according to your requirements. And the ambient temperature can be 40 to 65 degree.
If you need any of our products, please don't hesitate to let me know. Please find the cooperation flow below:
1. Request customer to send us the drawings, or offer the photos, main parameters, dimensions and other necessary data, etc.
2. Our tech. Dept. Issued the drawings according to the information offered by customers in 24 hours. And send it for customer's confirmation.
3. We send the quotation to customers in 24 hours after receipt of the confirmation of drawing.
4. After both parts get the agreement about price, kelong will arrange sample producing, then send it for evaluation by customers.
5. The customers are requested to offer the test result. And Kelong will update the design according to the test result if need it.
6. After conclude the final confirmation of the product both of us. We will start the mass producing cooperation.
Welcome for your inquiry and hope to establish the long term cooperation relationship!
|
Product key parameters |
|
MODEL |
NTW974Z-68-000 |
|
POWER |
552KW |
|
OVERALL DIMENSION |
1627*1650*555 |
|
INSTALLATION |
1350*260 |
|
CENTER HEIGHT |
785 |
|
MATERIAL |
Aluminium (we can also make Copper radiator ) |
|
AMBINENT TEMPERATURE |
40°C ( we can also make 50°C radiator if the customer ask ) |
|
CERTIFICATION |
GB/T19001-2008__ISO 9001:2008 |
|
MODEL |
OVERALL DIMENSION |
INSTALLATION DIMENSION |
CENTER HEIGHT |
POWR |
|
NTU764ZL-68-000 |
1250-1020-458 |
970*458 |
605 |
243KW |
|
NTU764ZLN-37-000 |
1431-1250-380 |
970*100 |
740 |
280KW |
|
NTH774ZL-68-000 |
1590*1575*642 |
1350*420 |
758 |
486KW |
|
NTW974Z-68-000 |
1627*1650*555 |
1350*260 |
785 |
572KW |
|
NT12V135ZLDH |
1585*1425*615 |
1350*260 |
785 |
389KW |
Henan Pingyuan Radiator Co., Ltd, founded in 1987, is a professional manufacturer of radiator, which has the comprehensive capacity of the development, design, manufacture and sale of the radiator on internal combustion engine and the cooling system on automotive engine. She has passed ISO9001: 2000 quality system certification and ISO/TS16949: 2002 quality management system certification. Moreever, "Provincial Enterprise Technology Center"and "Municipal Aluminium Radiator Engineering Techonology Research Center"have been set up in it. Up to now, she has received 10 patents, and her aluminium radiator series for motor lorry wins the prize of "Provincial Scientific and Technical Achievements". The company is successively awarded the honorable titles: "the contract trustworthy enterprise of Henan Province", "the AAA level credit enterprise of Henan Province", "the fast-developing private enterprise of Henan province" and "the characteristic industry an dadvanced enterprise of Xinxiang city".
The company is situated in Weihui, an ancient city in north Henan, which is 80 kilometers from the provincial capital. Jing-zhu Highway, No. 107 National Road and Xin-PU Provincial Road lay across the city. The transportation is very convenient. The company covers an area of 95, 000 square meters, and the employs more 500 people with 126 professional technicians. There are more than 500 sets of equipments, such as electrostatic spray automatic production line, 36 CNC punch press, vacuum brazing furnace, core-assembling machine, and so on. In addition, she has developed and built up lots of innovative production lines for aluminium radiator, copper radiator, automotive radiator, radiator of agricultural machinery, air cooler, plate-fin oil cooler, and so on. Moreover, there are more than 50 sets of specialized test equipments in the company, such as sealed-pressure-test machine, anti-vibrating-testing equipment, impulse-testting machine, specialized equipment for testing acid and alkali resistance, and so on, which ensure that the products have the excellent performance. The main products are as follows: 135 series, Cummins Series, Mercedes-Benz Series, 190 Series, Perkins Series, MTU series, Daewoo series, DEUTZ series, Steyr series, Volvo series, Caterpillar series, radiator of engineering machinery, heat exchanger, seawater-to-freshwater exchanger, and so on. They are well received not only in China but also in Singapore, Turkey, India, Southeast Asia and Europe, and keep ranking the first in the radiator industry of Henan province for three years.
In short, with advanced technology, sophisticated manufacturing equipments and complete testing methods, we are dedicated to providing the most perfect products with the high quality and most preferential price and the most generous service to society, make our human-oriented management concept benefit more.
