Home Generator Products Hot Sale Biomass Gasification 500kw Electricity Generator Syngas Gas Generator

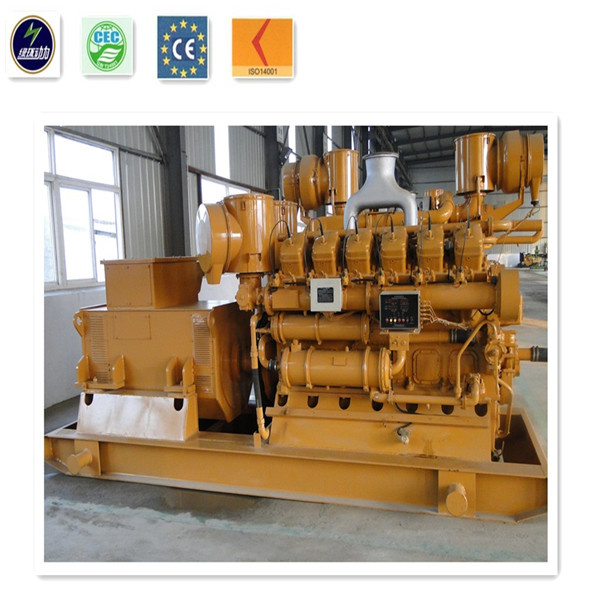

Hot Sale Biomass Gasification 500kw Electricity Generator Syngas Gas Generator

Hot Sale Biomass Gasification 500kw Electricity Generator Syngas Gas Generator
Price: US $ 150000/Piece
Trade Terms: FOB,CFR
Min Order: 1/Piece
Pay Type: L/C,T/T
Product description
Biomass power generation is the use of biomass power generation of biomass energy, is one of the renewable energy generation, including direct combustion power generation, agriculture, forestry and agriculture and forestry waste waste gasification power generation, waste incineration power generation, landfill gas power generation, and biogas power generation.


Gas requirements for generator:
1m from genset's pressure regulating valve of inlet
1. Temperature of biomass≤ 40º C;
2. Pressure of biomass 5~20kPa, velocity of pressure≤ 1kPa/min;
3. H2S≤ 200mg/Nm3;
4. NH3≤ 20mg/Nm3;
5. Coke tar content≤ 20mg/Nm3;
6. Impurities particle size≤ 5μ M; Impurity content≤ 30mg/Nm3;
7. Moisture Content of biomass ≤ 40g/Nm3;
8. Biomass calorific value≥ 4.2MJ/Nm3.
Purification of biomass has a significant impact on machine life and continuous running time!

Specifications:
1. Power range: 10kw-1000kw, single or parallel running
2. Stable engine, famous alternator, PLC control panel
3. Multi-option of engine, alternator and control system and cooling system
4. Long continuous running hours, 8000 hours per year
5. With CE and ISO
6. Manufacturer, OEM provided

Main spare parts:
1. Control system: America Woodward control system
2. Controller: ComAp, Deepsea, Woodward
3. Ignition system: American ALTRONIC, including:magneto, high-tension coil
4. Starting system: DC 24V electric motor.
5. Mixer: IMPCO
6. Spark plug: STIT

Worksite requirements for generator:
The worksite needs to meet following basic requirements:
 a)  Ambient temperature between -40ºC~40ºC;
 b)  Relative humidity less than 95%(35ºC);
 c)  Site elevation not higher than 2500m;
 d)  For outdoor installation, simple rain shelter is required

Parameter of Biomass Gas Generator Set
Model Number (Engine Type)LHBMG500
Brand NameLVHUAN
Prime Power/Standby Power400KW/500KW
Rated Speed1000/1200RPM
Rated Frequency50/60Hz
Rated Voltage400V/230V
PhaseAC 3-Phase, 4 wire
Voltage Stability≤±2%
Voltage transient≤±10%
Voltage Stable time≤1s
Heat consumption≤11mj/kw.h
Lubricant Consumption≤1.0g/kw.h
Engine Capacity71.4L
Cylinder Number12-V
Cylinder Bore190mm
Stroke210mm
Starting SystemDC 24V electric motor
Cooling methodwater cooler
Lubricant methodPassive and flying lubricant
Isolation classH
ProtectionIP23
AlternatorSiemens
Power Factor0.8 lagging
Exciting methodbrushless
Colouryour choice
CertificatesISO 9001:2008, CE
Warranty1 year or 1000 running hours which arrives first
TypeOpen
Control systemAutomatic alarm system
Size6200x2100x2800mm
Weight12500kg


Main composition of biomass gas
After being gasified, the basis of gas is CO(20%),      H2(9%),CH4(12%), CO2(12%), O2 (1%), N2(52%). The lower heating value is 5-6MJ/NM^3. Efficiency of gasification: 1kg dried material can generate 2Nm^3 GAS, conversation rate is more than 85%. 1kg dry material can generate 1kw.h power
6.Natural gas generator Service:

a. Pre-sale service:

We will send our engineer to prospect the site of power station free to charge. According to the situation of site we can supply you many drawings which can meet the requirement of design and construction, like power station floor plan, engineering flow sheet of circle cooling system, genset installation, genset foundation, electrical connection and some other techincal support etc.

b. Sale service:

We will send our engineer to the site to guide you the installation of generator set, subsystem and relative equipment. We will debug the generator set till it can generate power successfully. We will also supply a technical training to the operators. You also can send your staff to our company. We can train you till you can operate the generator set and during this time we can offer you board and lodging free of Charge.

c. After-sale service:

(1)in our company, different people is in charge of different area, we will response periodically and support you technical service free of charge, include equipment debugging, fault eliminating, technical advice, maintenance assistant, etc.
(2)For the quality problem, we will service for you free of charge during the guarantee period.
(3)One year guarantee period and lifetime service.
(4)Insisting on principle of "solving problems first, trying to recover the generator set as soon as possible and then analysis the reason", we solve quality problem in time when genset doesn't work, We insure to help our clients to gain the biggest economic profit.


FAQ

    1) What are the continous power and the standby power?

        It depends on the hours the generator set works per day.
        And 0.8*standby power = continuous power.

    2) How long is the warranty?

        One year

    3) Do you provide installation? commissioning? and training?

         Yes

    4) Your engineer can go abroad?

        Yes

    5) Can you supply the spare parts?

        Yes

    6) Can you provide the turnkey project?

        Yes


Our advantage:

   a.Strong technology research and development team
   b.Strong sales team
   c.Factory area of vast
   d.Ever export many country in the world, we have many case of succesfully
   e. The best quality service

Contact: Wendy Fu
Prod Model: LHNG300
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number (Engine Type): Lhng300
Brand Name: Lvhuan
Prime Power/Standby Power: 240kw/300kw
Rated Speed: 1000/1200rpm
Rated Frequency: 50/60Hz
Rated Voltage: 400V/230V
Phase: AC 3-Phase, 4 Wire
Voltage Stability: ≤±2%
Engine Capacity: 32 L
Weight: 8200kg
Power: 500kw
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.

Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.

We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.

Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
