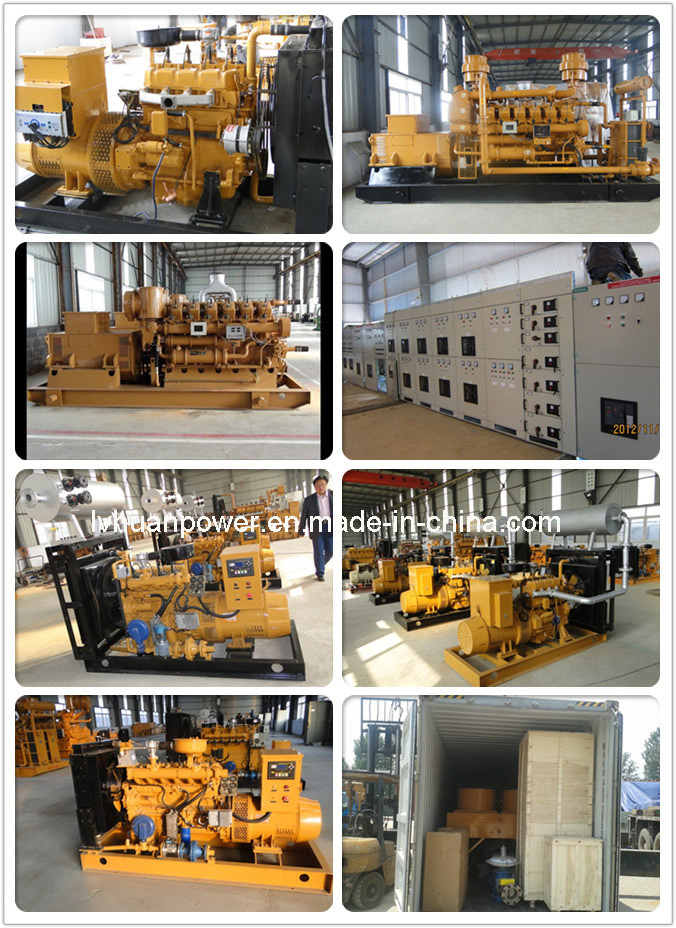

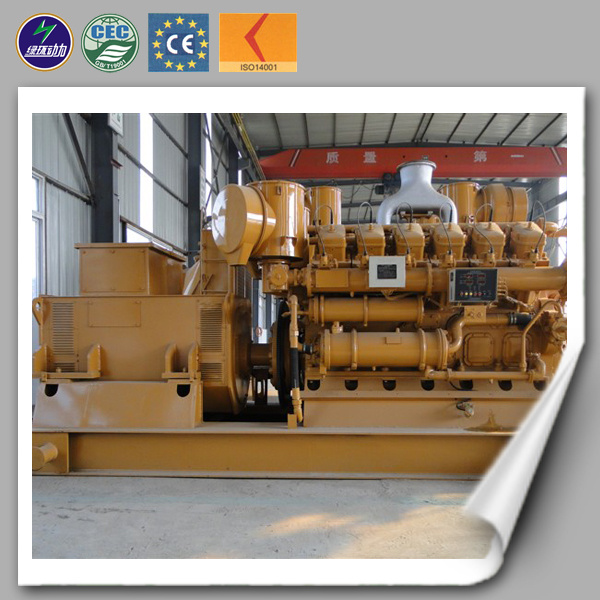

Hot Sale 500kw Natural Gas Electric Generator
| Price: |
US $ 8380/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
500kw natural gas electric generatornatural gas generator Conditions for Using 1. The temperature of the gas should not surpass 40°C when the distance between the gas and the pressure regulating valve for air inflow is 1m. 2. The range of the pressure that this natural gas generator set can sustain should be 3kpa-10kpa and the fluctuated frequency should not surpass 1kpa/min. 3. The content of the methane in the natural gas should not be lower than 45% and its fluctuated frequency should not surpass 2%/min. 4. The content of H2S should not surpass 200mg/Nm³. 5. The granularity of the impurity should not surpass 5µm and the content of the impurity should not surpass 30mg/Nm³. 6. The content of water in biogas used in this natural gas generator set should not surpass 40g/Nm³. 7. For natural gas with methane of about 70%-90%, low density natural gas generator should be used. For those gases which cannot reach the conditions above, this biogas generator set should be specially allocated after evaluation according to the specified composition, pressure, temperature, etc, provided.

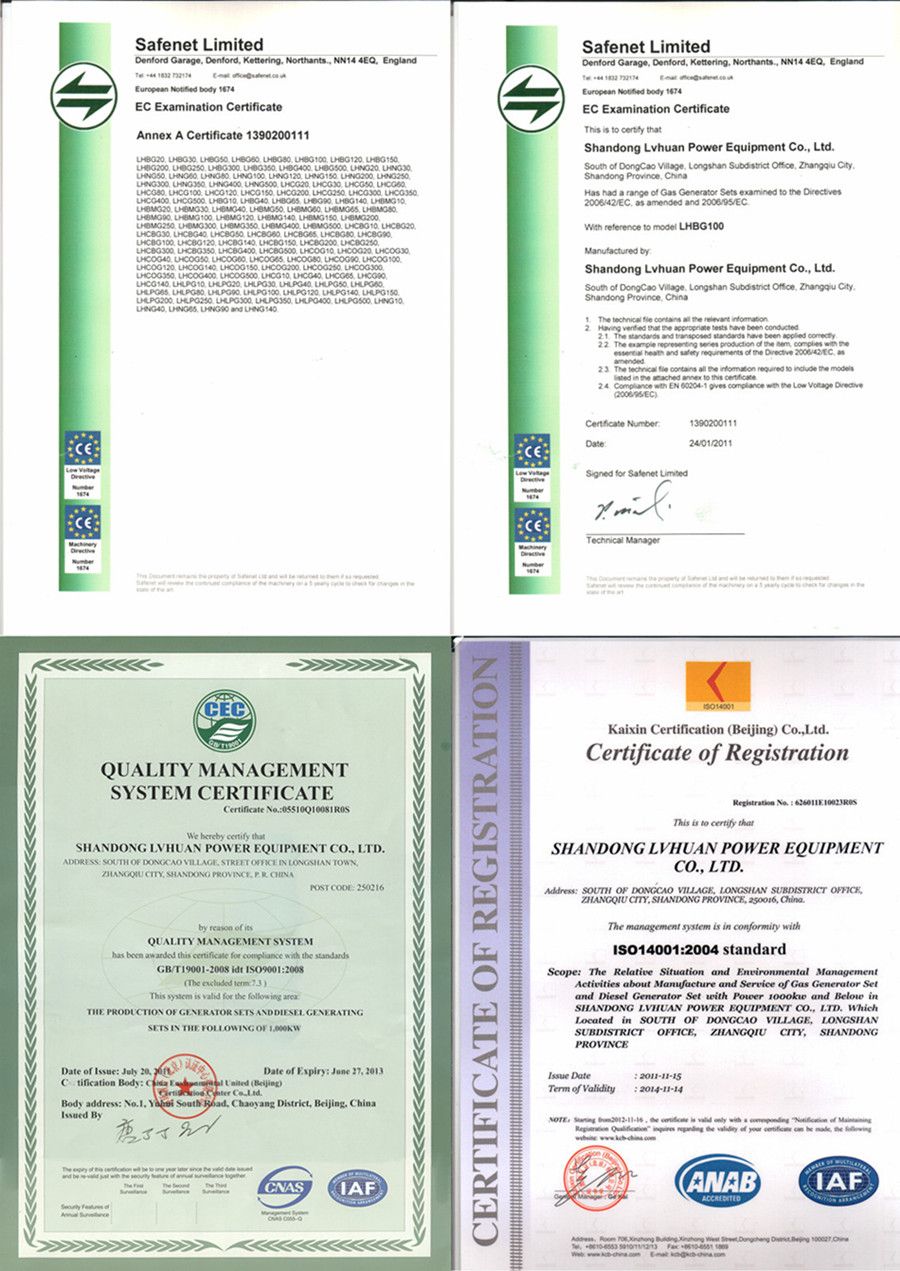

Why you chioce Shandong Lvhuan Power equipment Co.,Ltd.natural gas generator ? 1. we are professional manufacturer for gas/diesel generator set, over 15 years produced experience;2. products range of gas engines/genset, including diesel engines, biomass generator sets, natural gas generator sets, biogas generator sets, coal mine gas generator set, etc. Products arrange from 5kw-3000kw ;3. Our workshop covering more than 40000 square meters, techincal engineer and after-service more than 100 people.Also products achieved CE,ISO9001:2008,ISO2001:1400 etc. certificats.And passed many patents.4. Our products are well received by our customers in Spain, Italy, Canada, Venezuela, Austraila, Thailand, Malaysia,Philippine,Indonesia,and with some Africa countries etc.5. we have many cooperation companies :like dehydration equipment,desulfurization equipment,gasified equipment,recovery system exhaust heat,CCHP system etc.So can offer you complete project proposal if you like.
natural gas generator Service & certificates:1.pre-sale service:We will send our engineer to prospect the site of power station free to charge.According to the situation of site we can supply you many drawings which can meet the requirement of design and construction,like power station floor plan,engineering flow sheet of circle cooling system,genset installation,genset foundation,electrical connection and some other techincal support etc.2.Sale service:we will send our engineer to the site to guide you the installation of generator set, subsystem and relative equipment.We will debug the generator set till it can generate power successfully.We will also supply a technical training to the operators.You also can send your staff to our company.We can train you till you can operate the generator set and during this time we can offer you board and lodging free of Charge.3.After-sale service:(1)in our company, different people is in charge of different area,we will response periodically and support you technical service free of charge,include equipment debugging,fault eliminating,technical advice,maintenance assistant,etc.(2)For the quality problem, we will service for you free of charge during the guarantee period.(3)One year guarantee period and lifetime service.(4)Insisting on principle of "solving problems first,trying to recover the generator set as soon as possible and then analysis the reason",we solve quality problem in time when genset doesn't work,We insure to help our clients to gain the biggest economic profit.Certifications:
Any more details need to know please feel free to asked.| Model Number | LHNG500 |
| Brand Name | LVHUAN |
| Rated Power | 450 KW |
| Rated Speed | 1000 rpm |
| Rated Frequency | 50 Hz |
| Rated Voltage | 400/230V |
| Phase | AC 3 phase 4 wire |
| Starting system | 24V DC electric motor |
| Cooling method | water cooler |
| Lubricant method | passive and splash |
| Isolation class | F |
| Protection | IP23 |
| Power Factor | 0.8 lagging |
| Exciting method | Brushless |
| Voltage Stability | ≤±2% |
| Voltage Transient | ≤±10% |
| Voltage Stable time | ≤1 s |
| Prod Model: |
LHNG500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
380V/220V |
| Frequency: |
50Hz/60Hz |
| Fuel: |
Natural Gas |
| Gas Source: |
Natural Gas |

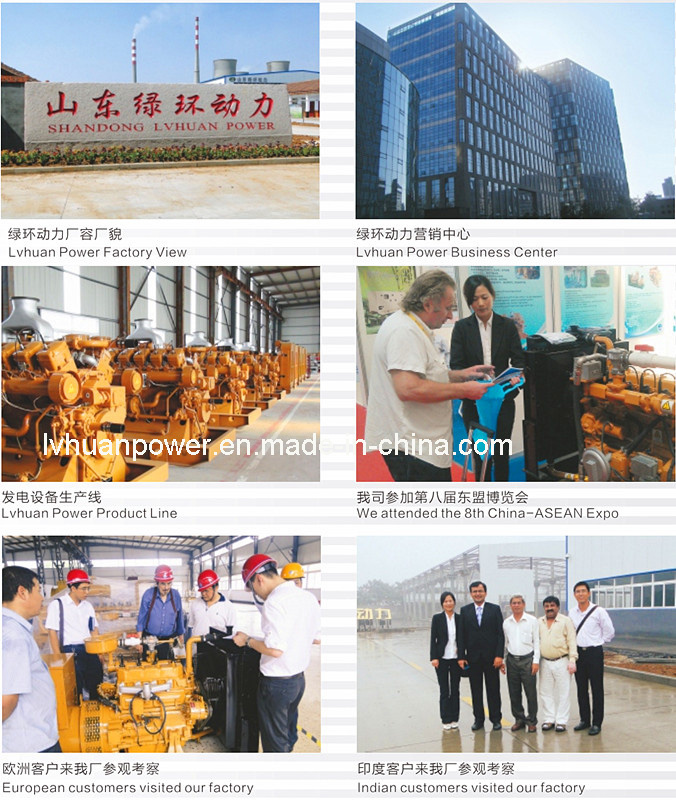

Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
