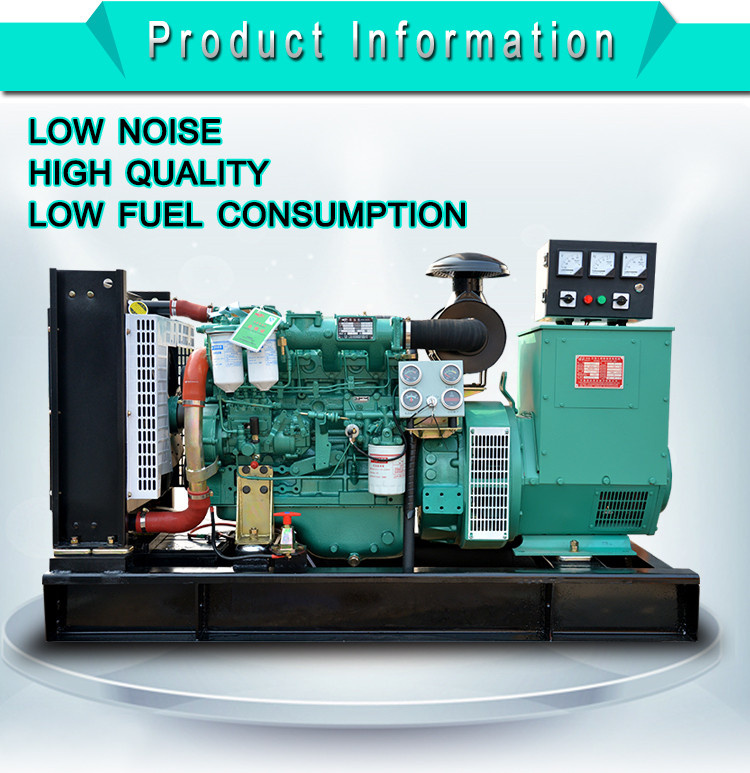

40kw Yuchai diesel generator
Guangxi Yuchai Diesel Generator Set Features:
1. Diesel generator adopt the Guangxi original Yuchai engine, as the main power support.
Engine charactors: Injection, Inline.Four stroke,water-cooled
2. Yuchai engine basic its years experience,produce the more strong ,stable and low fuel cost engine.
Widely used as continous work area, continous working time more than 48 hours.
3. Yuchai engine strong power,stable,long working life,low fuel cost, and price economic, price lower
than Deutz, Cummins engine etc.
Widely used in Factory, Project, Shop,Hospital ,Train,Aireport,station etc areas.
4. Alternator, adopt option brand like China brush alternator,
Stamford, Farady, Marathon,Leroy-somer, Lanzhou,etc so famous brands alternators.
5.This series diesel generator is the special type we promotion for abroad market, and make the highly quality level than other configurations.
6.Diesel generator including abersorber system,and protect the generator during its working time.
7.All generator surface after acidification , and suitalbe wet condtion working .
8.Standard control panel design basic the operation,and easy show all meters you care during generator working time.
9.Structure: adopt the high strong steel make the under frame, and easy moved and stable long life.
10.We offer options generators as the below shows:
A.Frequency we offer 50HZ and 60HZ.
B.Voltage: we offer 110/220v, 240v,380v/440v,254v/440 etc,or depend on your request.
C.Phase: we offer three phase or single phase generator
D.Options parts like: Electric speed adjustment, LCD show panel,protection system,Automatic transfer system. Silent canopy, Weatherproof canopy,Fuel tank.
40KW DIESEL GENERATOR DETAILS |
| Model | HQY40GF | Start Method | DC 24 |
| Generator Prime Power(KW/KVA) | 40/50 | Output Current(A) | 72 |
| Standby Power(KW/KVA) | 44/55 | Voltage(V) | 400/230 |
| Power Factor | 0.8 | Phase | Three phase, Four Wires |
| Frequency(Hz) | 50 | Weight(kg) | 890 |
| Size(mm) | L | W | G |
| 1800 | 750 | 1200 |
| Diesel Engine Data |
| Manufacturer | Yuchai | Model | YC4D60-D21 |
| Rated Speed(Rpm) | 1500 | Diesel Engine Max Power(KW/H) | 44 |
| Cylinder No. | 4 | Arrangement Type | In-line |
| Bore×Stroke(mm) | 108×115 | Displacement(L) | 3.61 |
| Intake Method | Natural | Compression ratio | 17.0:1 |
| Fuel | Diesel Fuel | Full Load Consumption(g/kw.h) | ≤209 |
| Oil Capacity(L) | 10 | Start Method | Electrical |
| Engine Cooled Method | Radiator Max 40ºC,fans are driven by belt with safety guard. |
| Alternator Data |
| Manufacturer | China Stanford | Model | XN40 |
| Rated Power(KW/KVA) | 40/50 | Excitation Type | Brushless |
| Insulation Class | H | Protection Grade | IP22 |
| Unload Voltage Adjustment | ≥±5% | Stable Voltage Adjustment | ±1% |
| Efficiency (%) | 94.8 | Voltage Control Method | AVR
|
The Engine Features
Deutz series diesel engines manufactured by joint venture in China are selected for Deutz diesel generators. Manufactured under optimized design and strict quality control, diesel generator sets are in line with ISO8528, German DIN6280, IEC34, VDE0530 as well as Chinese standard GB/T2820. This series are stable and reliable, easy to install, showing excellent performance. Thus, they are very suitable for occasions lack of main power supply.
Deutz series have some advantages of the characteristics:
Deutz diesel generators adopt modular design, featured by compact structure, small size and light weight; this series generator is featured by strong power, low fuel consumption, small vibration and low noise; The best is the strong adaptability, particularly suitable for use in heating, cold and arid regions.We can offer from 25kw to 120kw.
the details and advantages of our diesel generator
U-Steel Under Frame: the high-strength channel steel base,increse the stability of the base and reduce the vibration during working to make the unit work more stable and life longer.
High-grade Dumping Block: units used imported technology to reduce the damage to the machine caused by unit vibration. thus greatly extend the life of the unit.And high grade damping block can effectively reduce the noise generated by the vibration.
Plastic Sparying Dashboard:Using high quailty pai-nt,build quality and beautiful dashborad to make the data show up more intuitively and effective prevent corossion to long life.
Costomized Fuel Pump:Famoue brand pump.special for Weichai Power,With good quailty and stable speed adjustment,sensitive and fuel-efficient,and the life is 3 to 4 times as other ordinary pump.
Diesel Generator Protection system
Alarm function: Sound alarm and stop machine.Alarm content:high water temoer ature,high oil temperature,high oil pressure and high speed, then urgent stopping.It have been used widely in exported units.
Electrical Fuel Injection Pump:
1.Control max speed,provent diesel engine over speed
2.Contorl lowest speed, promise stable working under the lowest speed
3.Less Consumption,it can adjustment engine speed itself basic the real load applied more less fuel reduce.
ATS Smart Transfer System(Automatic switch)
1.Intelligent dual power supply automatic switching control cabinet to introduce the latest micro processing technology,using industrial grade components assembly manufacturing,safe and reliable;the button control panel swith contorl, easy to operate.
2.Main functions:Control,Swtich,Protection,Charger...(also we call ie AMF witH ATS,the real smart system no need person on duty,itself-operating diesel generator.)
Soundproof Diesel Generator (Silent)
1.Excellent silent performance,reduce the noise to 75db(at the distance 1m to the generator)
2.Compact structure,small size, beautiful appearance
3.Multiayer shielded sound absorbing cover.
4.Efficient niose reduction intake and exaust pipe to make sure good dynamic performance.
5.lager impedance compound muffler.
6.Have quick open cover and easy to mantain.
Mobile Station Diesel Generator(Trailer)
1.Including mobile trailer,container trailer.etc.It is easy and safe to operate.
2.Trailer station models:Rainproof,weather proof and silent type.
Sales Promises
Huaquan provides a full line of brand new and high quality products.Each and every unit is strictly factory tested Warranty is according to our standard conditions:12 months or 1000 running hour's ,subject to the earlier one .Service and parts are available from our factory
About Our Company
Founded in 2006, Huaquan Power Machinery is located in the diesel engine manufacturing city, Weifang. For many years, we have become a professional manufacturer of diesel generators. Our main products include fixed, mobile, silent, ATS, remote monitoring types and other smart power plants.
These products are widely used in power generation equipment,engineering machinery, agricultural machinery, fixed operations and other fields. Marketing throughout the country, we also export to Southeast Asia, the Middle East, Africa and other areas.
We have advanced production lines, sophisticated testing equipment and complete quality management system, and implement the "quality first, customer first, honesty, competition and enterprising spirit". We also employ a group of highly qualified engineers, technicians and a support staff dedicated to the rapid development of the company.
We are committed to providing efficient, energy-saving, eco-friendly, high-quality and reliable diesel generator sets to ensure clients' satisfaction. We accept small orders and provide competitive price and high quality. Quick delivery time is also our advantage.
1. Offer the main Power range from 10kva~1500kva.
2. Adopt the famous engines like Weichai engines, Deutz engines, Steyr
engines, Cummins engines, Perkins engines, Isuzu engines, Ricardo engines, Changchai engines, Yuchai engines, Jichai engines etc. These are widely used all over the word.
3. We only adopt standard high-level quality alternator, to produce the high-level diesel generators.
4. We offer Open-generators, Silent-Generators, Automatic-Generators and Trailer-Generators.
5. All spare parts serviced directly by our company.
6. We are confirmed as the OEM factory by many those engine factories and alternator factories.
