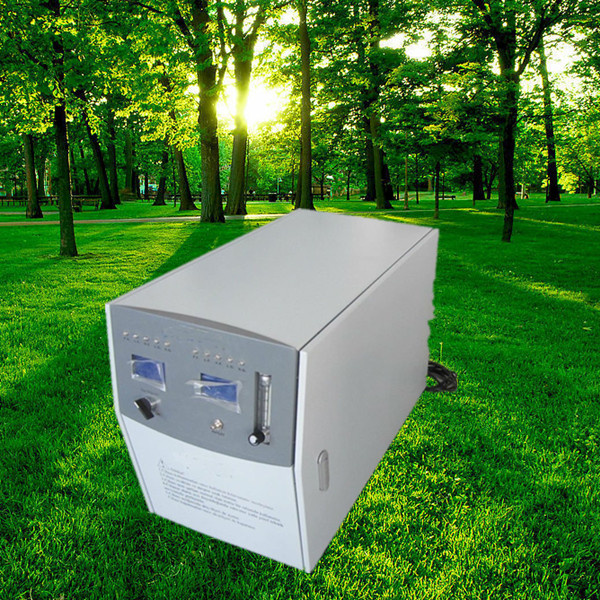

Industry oxygen concentrator
Model: JAY-20
Rated power (VA)1100
Operation voltage (V/Hz)AC230± 10% 50± 1
Oxygen flow (L/min)0-100-20
Oxygen concentration (%)93%± 3%
Outlet pressure (Mpa)0.04_0.07
AlarmPower failure; Low&high pressure; Temperature(optional); Low purity (optional); Maintenance reminding after 3000 hours use(optional)
Sound level (dB)≤ 55
LCD displayaccumulating timing; Present timing; Timing;
Large LCD display (optional)Pressure digital(accuracy: 0.001MPa);
Accumulating timing(range: 0-10000hours);
Present timing(accuracy: 1 minute);
Presetting timing(accuracy: 1 minute)
Optional: Temperature digital(accuracy: 0.1);
Purity digital;
Maintenance reminding;
Electrical category: Class II Type B
Product category: Class II a
Net Weight (Kg)60
Dimension (mm)38(deep)*38(width)*56(height)cm70(deep)*39(width)*53(height)cm
Low purity alarm (Optional)When oxygen purity is 85%, the green lamp is on,
When oxygen purity is <85%, red lamp is on, indicating low purity
Dehumidity devicePressure: 0 Mpa Function: Exhaust water
FuseF7A/250V---
|
Model |
JAY-10 |
JAY-20 |
|
Rated power (VA) |
550 |
1100 |
|
Operation voltage (V/Hz) |
AC230±10% 50±1 |
|
Oxygen flow (L/min) |
0-10 |
0-20 |
|
Oxygen concentration (%) |
93%±3% |
|
Outlet pressure (Mpa) |
0.04_0.07 |
|
Alarm |
Power failure;low&high pressure ; temperature(optional); low purity (optional); maintenance reminding after 3000 hours use(optional) |
|
Sound level (dB) |
≤55 |
≤55 |
|
LCD display |
accumulating timing; present timing; timing; |
|
Large LCD display (optional) |
Pressure digital(accuracy:0.001MPa);
accumulating timing(range:0-10000hours);
present timing(accuracy:1 minute);
presetting timing(accuracy:1 minute)
Optional : temperature digital(accuracy:0.1);
purity digital;
maintenance reminding; |
|
Electrical category: |
Class II Type B |
|
Product category: |
Class II a |
|
Net Weight (Kg) |
30 |
60 |
|
Dimension (mm) |
38(deep)*38(width)*56(height)cm |
70(deep)*39(width)*53(height)cm |
|
Low purity alarm (Optional) |
When oxygen purity is 85%, the green lamp is on,
when oxygen purity is <85% ,red lamp is on, indicating low purity |
|
Dehumidity device |
Pressure:0 Mpa Function:exhaust water |
|
Fuse |
F7A/250V |
--- |
Longfian Scitech Co., Ltd, located in Longxing Building A(413), 77 Longxing Road, 071051 Baoding China, The company has first-class professional management personnel and research&development technical team, with their own product development capabilities, mainly engaged in medical molecular sieve oxygen concentrator as well as assorting the development of electronic products, now has a variety of standard models and a variety of uses oxygen concentrator, has successfully developed JAY-1, JAY-2, JAY-3, JAY-5, JAY-6, JAY-8, JAY-10 type normal pressure medical oxygen concentrator, JAY-10-4.0, JAY-15-4.0, JAY-20-3.5 with 0.14 ~ 4KG pressure of high-pressure oxygen concentrator, industrial oxygen concentrator and ozone generator etc.; The product has got EU's CE certificate, ISO certificate and FDA certificate, and exported to the United States, France, Spain, Germany, Russia, India, Singapore, Turkey, Thailand etc. More than 60 countries and regions, enjoy a high reputation in Foreign markets
In recent years, the company has joined OEM companies and developed some related medical products for the demands of market, especially for pulse oximeter, SpO2&Blood pressure monitor, SpO2&ECG monitor, syringe pump, infusion pump, etc.
Our goal is "PROFESSIONAL IN QUALITY, FOCUS ON RESPIRATORY PRODUCTS ", to meet the demands of various specialists of medical field and continue to bring you not just the innovative equipment but also the most reliable, long-lasting & quality products.
