| Price: | US $ 900-1200/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union |

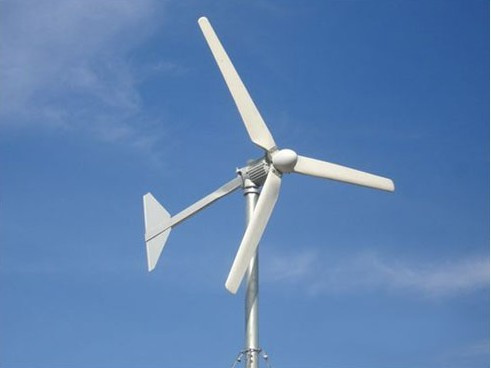

Tanfon off grid wind power system, with horizontal wind turbine generator, pole, inverter, wind controller, battery, cables, have power design 300W to 50KW.
Why choose Tanfon?
1) TANFON has sold the system to Nigeria, Colombia, Burkina Faso, Egypt, Bolivia, Kenya, Ghana, South Africa, Argentina, Philippines, Congo, etc. Almost 85% of Africa countries !
2) With a professional installation team, Have went to Bangladesh, Egypt, Chad, Nigeria, Ghana, Doha, Pakistan for installation
3) We dare to promise you the best quality in China. Our QA & QC department operate the inspection strictly. We insist on using good quality raw material whenever and wherever, government project quality.
ISO9001 management system was absolutely executed.
4) With customer's' praise as an assurance,Tanfon is a guaranteed brand.
5) Our company's philosophy is: one-stop solar energy service platform
6) We are factory. Here we can guarantee you the best price.
600W wind turbine
| Model | FD-600 |
| Rated power | 300W |
| Generator detail | |
| Starting wind speed | 3m/s |
| Cut-in wind speed | 3.5m/s |
| Rated wind speed | 12m/s |
| Security wind speed | 45m/s |
| Rated DC voltage | 12V/24V |
| Rated speed | 650 r/m |
| Rotor diameter | 1850mm |
| Rated output AC voltage | 220V/50Hz(110v/60Hz) |
| Protection | Electromagnetic torque control and electricity brake |
| Type | 3phases permanent magnetism generator |
| Material | |
| Blade material | Extra-strong and tenacious engineering plastics |
| Packing material | Carton box and foam material |
| Package | |
| Packing dimension | 1900*580*240 mm |
| N. W& G. W(kg) | 10/13 kg |
600W wind power system home use
System Application:
1. Living house and home building;
2. Office building, factory and warehouse
3. Shopping mall, venue, stadium, farm and so on
4. Power station, field operation and some huge engineer construction
Wind turbine Feature:
1. Rare earth permanent-magnet generator
2. Small vibration and tiny friction, stable rotation in higher speed
3. Streamlined wind turbine body and blade outline design
4.Blades have 2 kinds, 300w-1kw for high-rigidity FRP materials and blades are dynamic-balanced
5. Noise level below 55dB around the wind turbine tower
6. State of the art, workmanship and beautiful appearance
7. Use magnetic saturation technology, with 20years designed life;
8. Select high quality bearing, free to maintenance;
9. Anti-twist device, generator can whirl in each direction
10. Anti strong wind, the blade protect itself automatically,
11. Supply matched controller/inverter, make the system more stable
| Prod Model: | FD2000 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Starting Wind Speed: | 3m/S |
| Cut-in Wind Speed: | 3.5m/S |
| Rated Wind Speed: | 12m/S |
| Security Wind Speed: | 45m/S |
| Rated DC Voltage: | 48V |
| Rated Speed: | 374 R/M |
| Rotor Diameter: | 3200mm |
| Rated Output AC Voltage: | 220V/50Hz(110V/60Hz) |
| Protection: | Electromagnetic Torque Control and Electricity Bra |
| Number Of Blade: | Three Blade |
| Stress Way Of Blade: | Lift Force |
| Rotating Shaft: | Horizontal |
