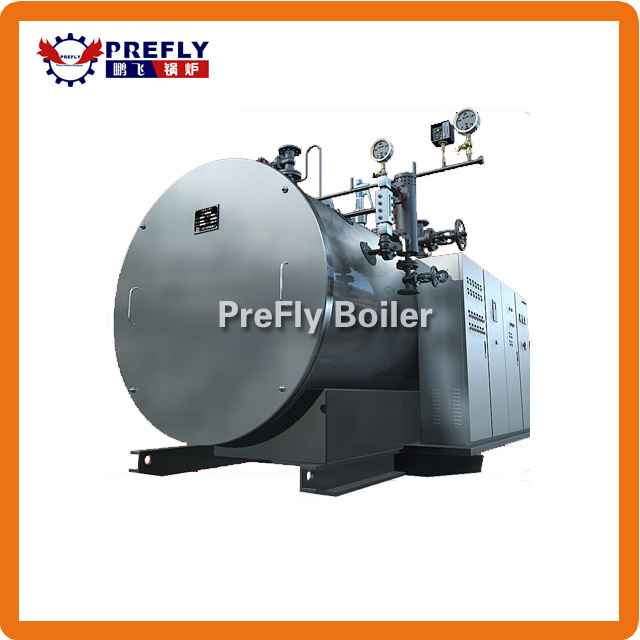

Horizontal electric steam generator:
Description of boilers:
Electric steam boilers are suitable for industries requiring efficient, high quality saturated steam, including laboratories, hospitals, industrial plants, pilot plants, food and chemical processing applications.
These versatile generators are perfect for almost any application requiring steam from0-7bar. Each unit is complete with automatic features, including pressure and liquid level controllers, pressure vessel and safety valve and are fully tested under power.
FEATUR:
Safe easy -to-use heat source - No on-site products of combustion.
Easy, quick to install, they require only water feed connection and electrical hook-up.
Applications include: Steam for tanks, reactors, distillations, autoclaves, dyestuffs, food products, cosmetics, paraffin's, glues, steam jacketed kettles, sterilizers, cosmetics, pipe tracing and humidification.
|
TECHNICAL PARAMETER |
EB360 |
EB540 |
EB720 |
EB1080 |
EB1440 |
EB2160 |
EB2880 |
|
Input Electricity |
KW |
360 |
540 |
720 |
1080 |
1440 |
2160 |
2880 |
|
Steam Output |
kg/h |
500 |
800 |
1000 |
1500 |
2000 |
3000 |
4000 |
|
Pressure |
Bar |
10 |
|
Steam Temperature |
º C |
184 |
|
Power |
|
380V/50Hz/3P |
|
Feed Water Valve |
DN |
20 |
40 |
40 |
40 |
40 |
40 |
40 |
|
Steam Out Valve |
DN |
50 |
50 |
50 |
65 |
65 |
80 |
100 |
|
Safety Valve |
DN |
40 |
40/40 |
40/40 |
40/40 |
40/40 |
50/50 |
50/50 |
|
Blowdown Valve |
DN |
25 |
40 |
40 |
40 |
40 |
40 |
40 |
|
Weight |
kg |
980 |
2300 |
2850 |
3220 |
3550 |
4100 |
5200 |
